    Guys with my previous enquiry post below enquiring about draw and fridge setup information, this post is to share the build process and setup.

    https://www.landcruiserclub.net/community/threads/rear-draws-build-and-setup.149574/

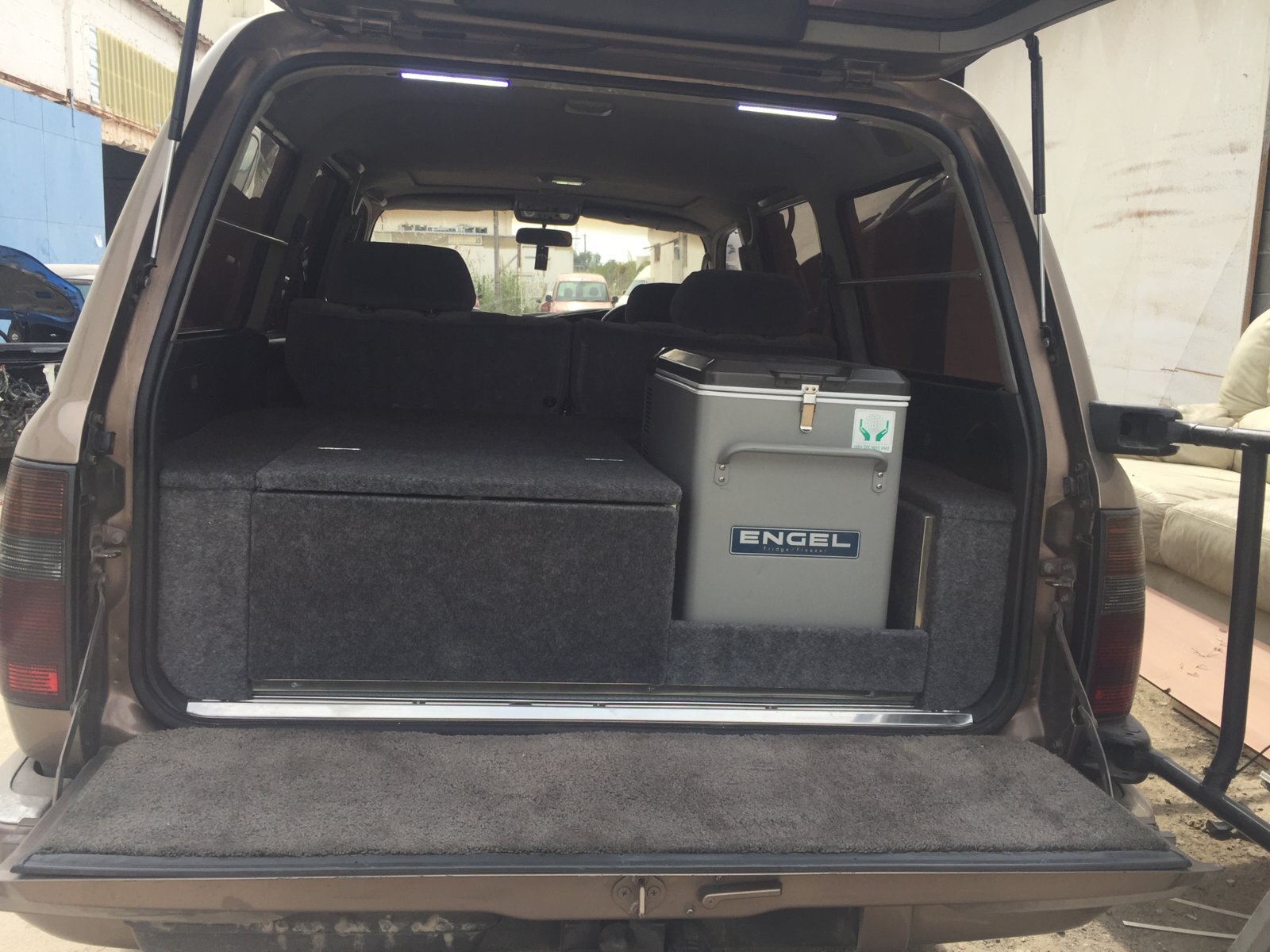

    Today Carpeted most of the draws and just the finishing touches left along with electrical work and handles that I'm awaiting parts for.

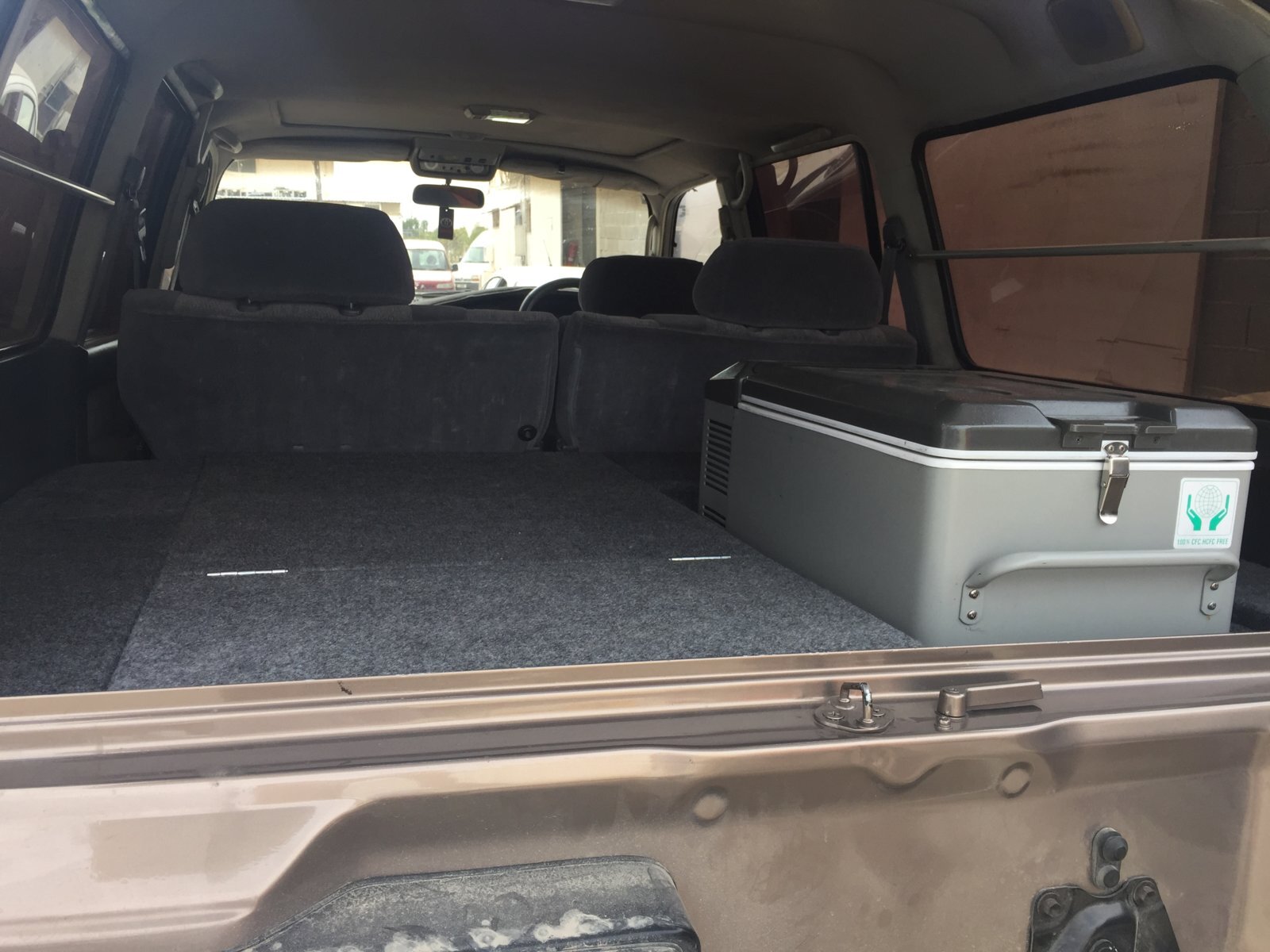

    Decided to keep the fridge low and have a single large draw in the end that I'm gonna divide later on accordingly. both sides have pull up flip panels and the rears are fixed to accommodate larger items I wanna lay down on. .

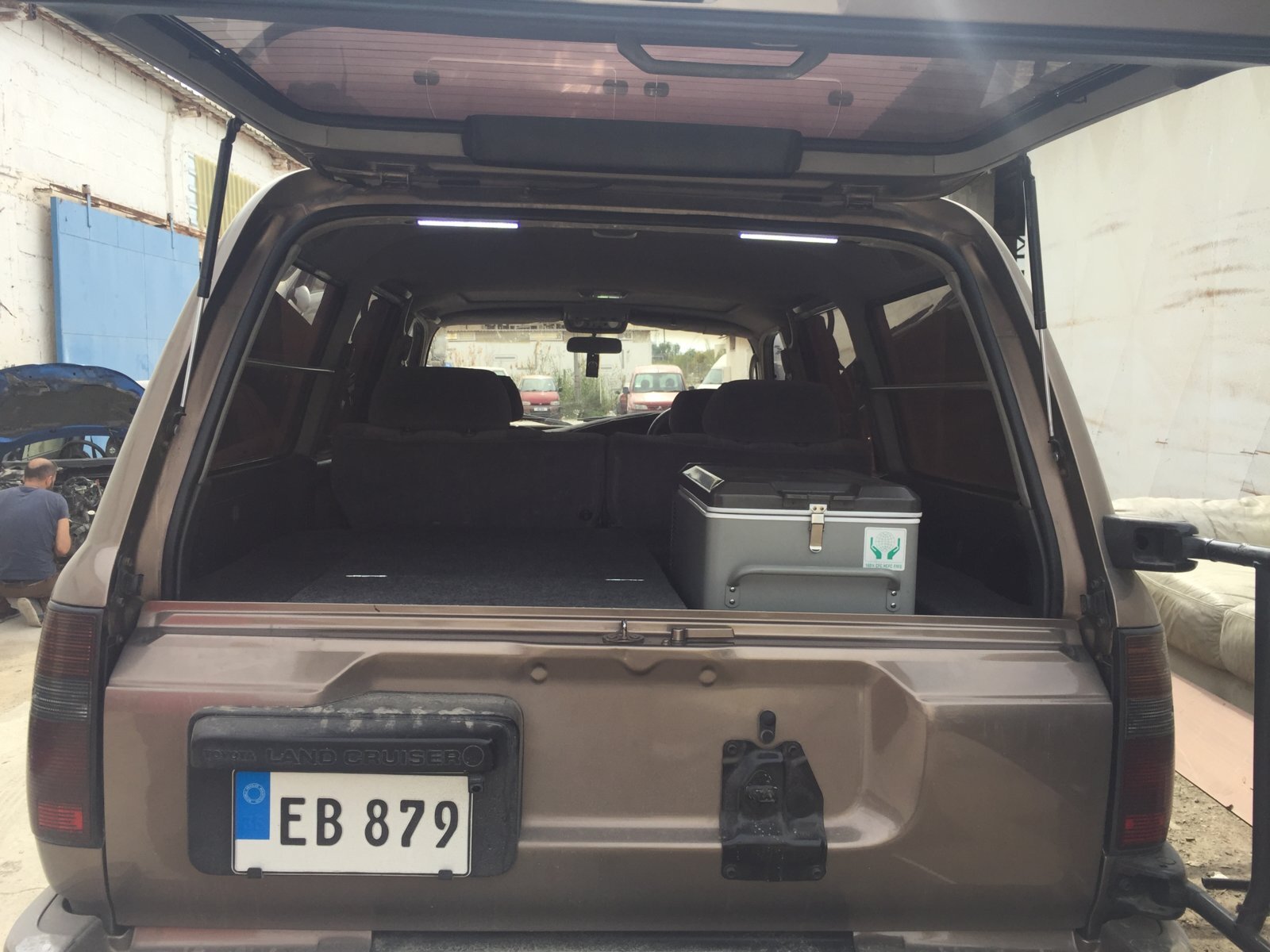

    More pictures to follow

    IMG_6430.JPG IMG_6431.JPG IMG_6432.JPG

    Last edited: Mar 10, 2018
    cmcmill01, Gary820, Mark01 and 5 others like this.
  2. Chris

    Chris Super Moderator Supporter I am in europe

    15,254
    2,647
    113
    Garage:
    Map
    Dervis, that looks the Mutt's. Well done.

  3. nick_the_fish

    nick_the_fish Well-Known Member I am in great_britain

    369
    161
    43
    Map
    Nice work Dervis. Like that .

  4. TALAMAN

    TALAMAN Well-Known Member I am in cyprus

    243
    92
    28
    Map
    Nice project and well thought out.

  5. Chas

    Chas Well-Known Member I am in england

    15,820
    3,292
    113
    Garage:
    Map
    Great job there Dervis, that is exactly what I've got in mind to do to the rear of my 80, do you have the fridge on a slide out or is it low enough to get at the cold beers?

  6. Dervis Garip

    Dervis Garip Well-Known Member Supporter I am in cyprus

    1,626
    780
    113
    Garage:
    Map
    There’s a pull out large draw and a fridge slide there Chas. Both pull out to almost the end of the tailgate which is perfect for my needs. The storage draw I’ve also made a front top opening lid for easy access.

    I’ve still got a bit to do and will take better pictures close up and show the setup and functionabity soon.

    Thanks

    Chas likes this.
  7. Dervis Garip

    Dervis Garip Well-Known Member Supporter I am in cyprus

    1,626
    780
    113
    Garage:
    Map
    Thanks for you comments guys I kinda learning as I go along but having seen and researched from others here thankfully made it easier. :thumbup:

  8. Aeronick

    Aeronick Member I am in great_britain

    100
    62
    28
    Map
    Nice job!!

    What do you use the two bars in the middle of the windows??

  9. Dervis Garip

    Dervis Garip Well-Known Member Supporter I am in cyprus

    1,626
    780
    113
    Garage:
    Map
    That’s the JDM spec Van model series as standard. Their one piece windows and not the slide models as there’s no seats as stock.

    Not sure what their for TBH but their factory.

  10. Aeronick

    Aeronick Member I am in great_britain

    100
    62
    28
    Map
    What you use them for?

  11. Dervis Garip

    Dervis Garip Well-Known Member Supporter I am in cyprus

    1,626
    780
    113
    Garage:
    Map
    Nothing .....I kinda think because it’s the Van spec their there to protect the glass. I suppose now I’m kinda have more use for them as I can hang things there.

    Aeronick likes this.
  12. Gary820

    Gary820 Well-Known Member I am in great_britain

    2,803
    1,013
    113
    Garage:
    Map
    Really nice job :thumbup:

  13. StarCruiser

    StarCruiser Well-Known Member Supporter Guru I am in uk

    9,689
    3,565
    113
    Garage:
    Map
    I always thought they were there to prevent stuff falling against the glass.

  14. Dervis Garip

    Dervis Garip Well-Known Member Supporter I am in cyprus

    1,626
    780
    113
    Garage:
    Map
    Yes my thoughts too Richard. I assume you have the same in yours?

  15. StarCruiser

    StarCruiser Well-Known Member Supporter Guru I am in uk

    9,689
    3,565
    113
    Garage:
    Map
    I did Dervis, Post gullwings they are hanging up in the garage. :)

  16. Chas

    Chas Well-Known Member I am in england

    15,820
    3,292
    113
    Garage:
    Map
    I was having a measure up this afternoon and I'm sure I won't have to sacrifice one of my drawers, the fridge will sit comfortably inside the drawer, I will of course have to cut away the top that the drawer slides under.
    The cage I made to go behind the gullwing on the drivers side will need modifying though to allow the fridge to fit.
    Originally I was thinking of removing one drawer completely and putting the fridge on the floor but putting it in the drawer means I don't have to buy a fridge slide, and they ain't cheap. :dance:

    StarCruiser likes this.
  17. cmcmill01

    cmcmill01 Well-Known Member Supporter I am in uk

    344
    77
    48
    Map
    Looks good, and think I may go down this route, with a permanent floor drawers and then a removable upper section to add more storage and to cover the fridge. Do you have any plans to cover the fridge so you can store stuff in the space above it???

  18. Aeronick

    Aeronick Member I am in great_britain

    100
    62
    28
    Map
    I fix my structure with 2 screw on the front and two turnbuckle on the back, so I can remove everything very quickly!

    I'll have to buy a lifting table in order to be able to remove and install it alone.

  19. Dervis Garip

    Dervis Garip Well-Known Member Supporter I am in cyprus

    1,626
    780
    113
    Garage:
    Map
    Wanted to keep the Fridge low because of its size and being a budget build chose to loose a draw in that space.
    This left a 70cm space that was not worth dividing to make two draws and so made a flip up easy access to aid better function. The large draw I'll divide accordingly later with when I have all my gear and then can better access if the space is enough for my needs.

    Certainly you add to it as i'v already thought about making a removable section that covers the fridge with more selves and plastic draw containers. But as its my only vehicle has to be practical for daily use and shopping...lol

  20. Dervis Garip

    Dervis Garip Well-Known Member Supporter I am in cyprus

    1,626
    780
    113
    Garage:
    Map
    Be interesting to see your set up Chas. Yes Fridge slides are expensive and didn't want to go down that road.
    This is a budget build so I'm using a 100 amp battery as I'll do the write up to why and how soon. The basis is a budget build on all fronts. Be interesting to see how it unfolds Chas and I'll let you guys know.
