Budget Home Made Rear Draw System

Dervis Garip Mar 10, 2018

  1. Dervis Garip

    Dervis Garip Well-Known Member Supporter I am in cyprus

    1,291
    514
    113
    Garage:
    Map

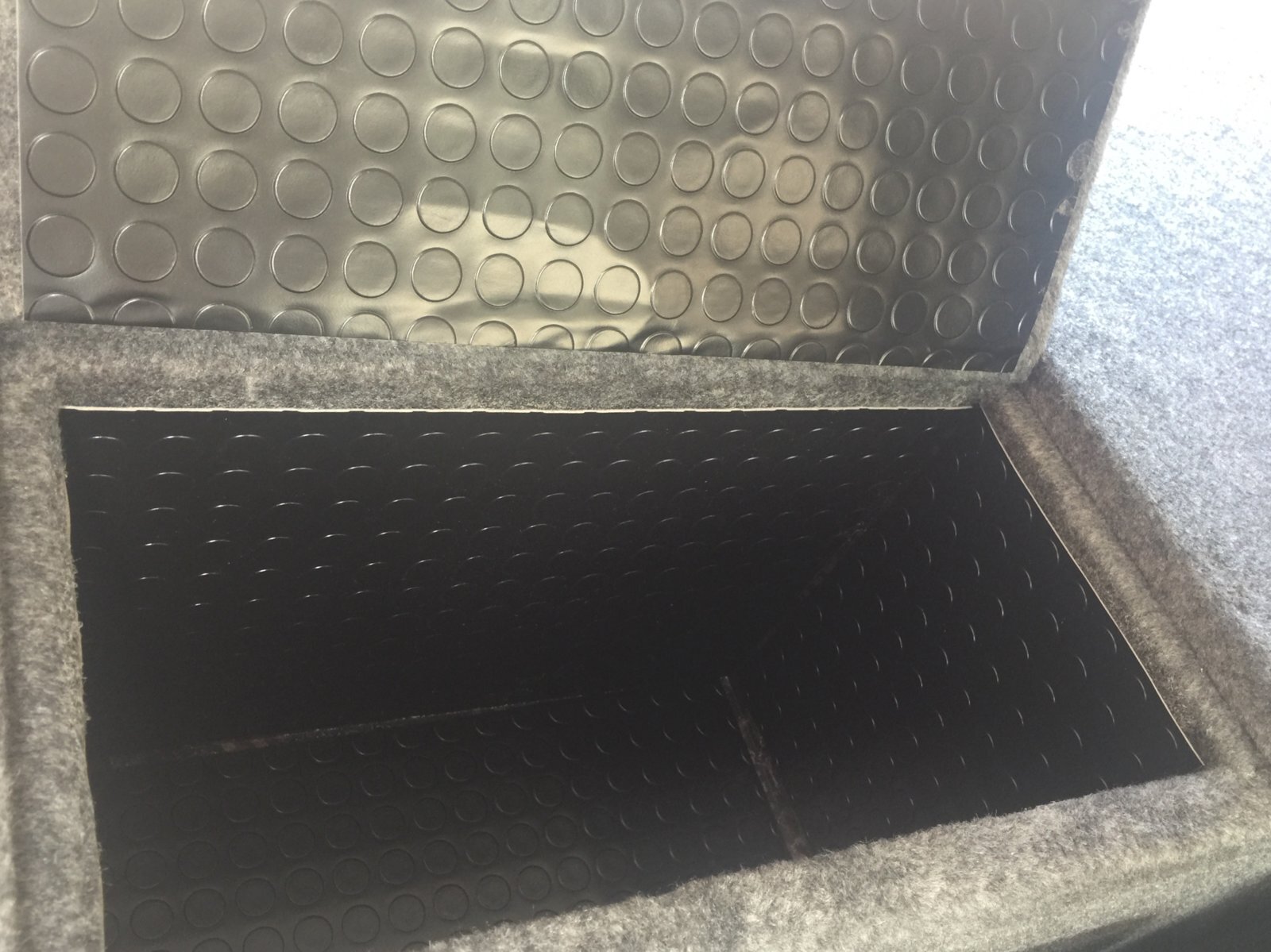

    The slider with the lid open accessible within the tailgate for easy access works out low enough to be useful. IMG_6456.JPG View attachment 141676

    Aeronick likes this.
  2. Dervis Garip

    Dervis Garip Well-Known Member Supporter I am in cyprus

    1,291
    514
    113
    Garage:
    Map

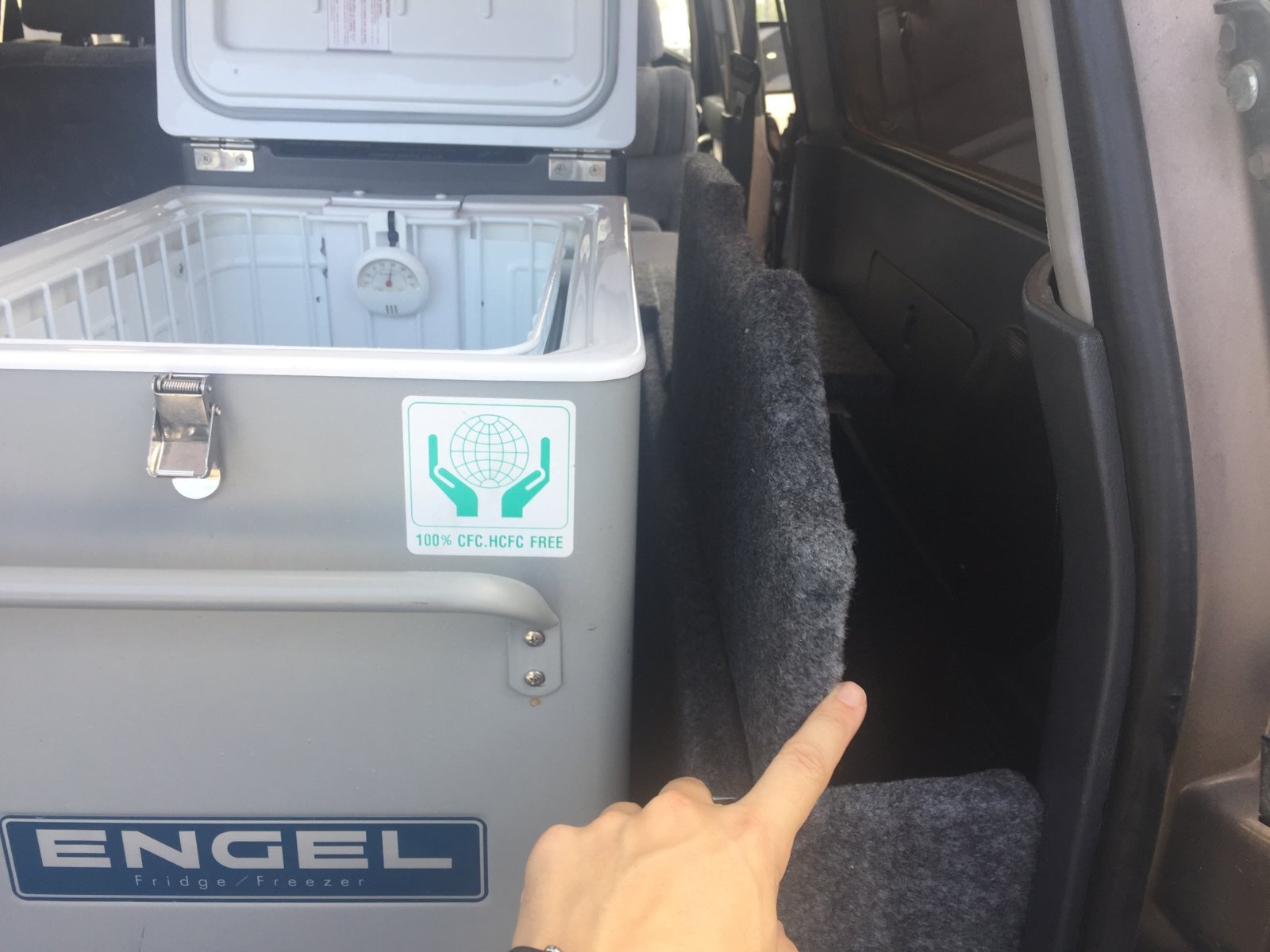

    Both side access panels with invisible handles...storage for longer narrow items and importantly access to the factory vehicle storage areas.


    Last edited: Mar 12, 2018
  3. Dervis Garip

    Dervis Garip Well-Known Member Supporter I am in cyprus

    1,291
    514
    113
    Garage:
    Map

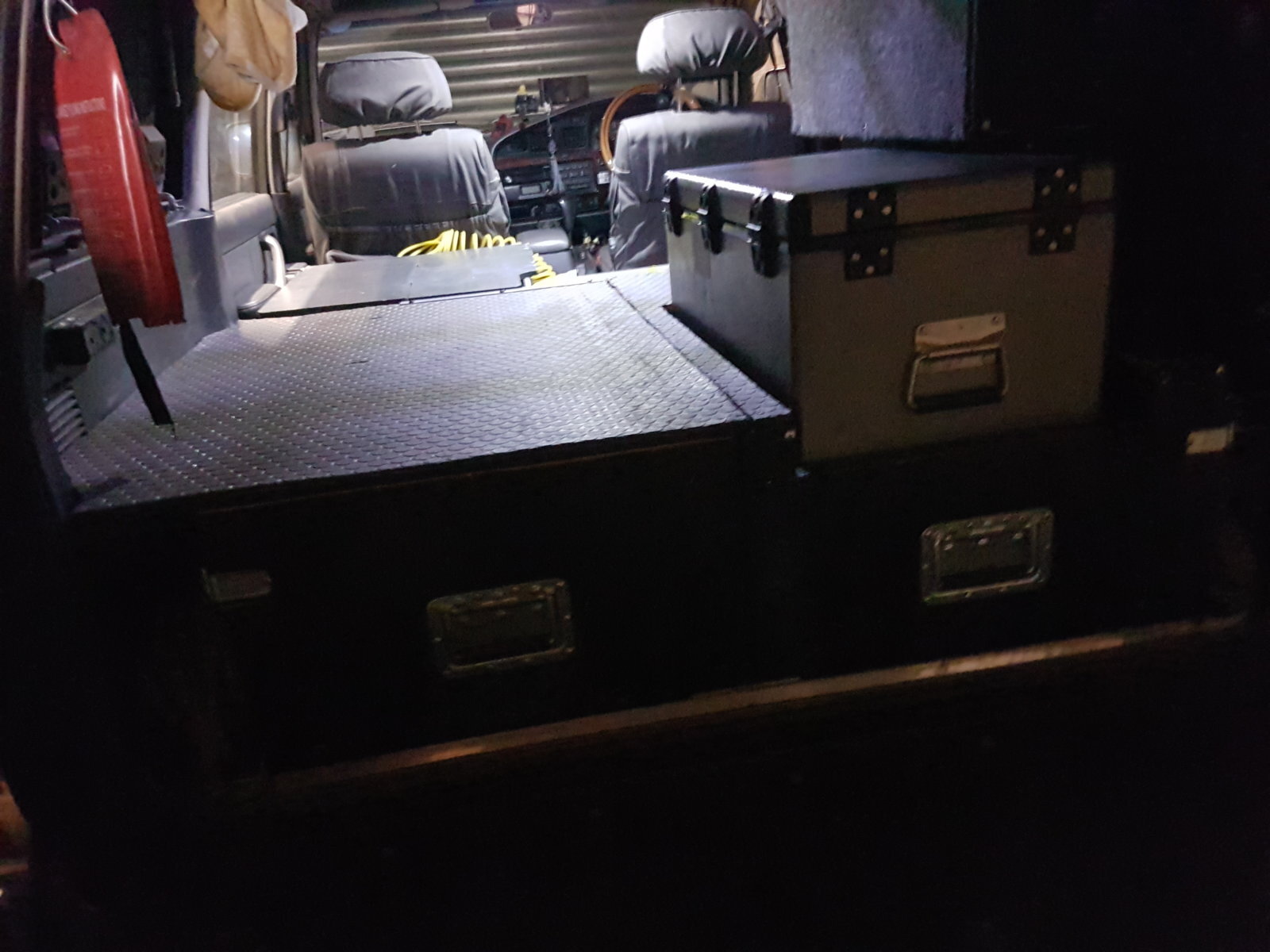

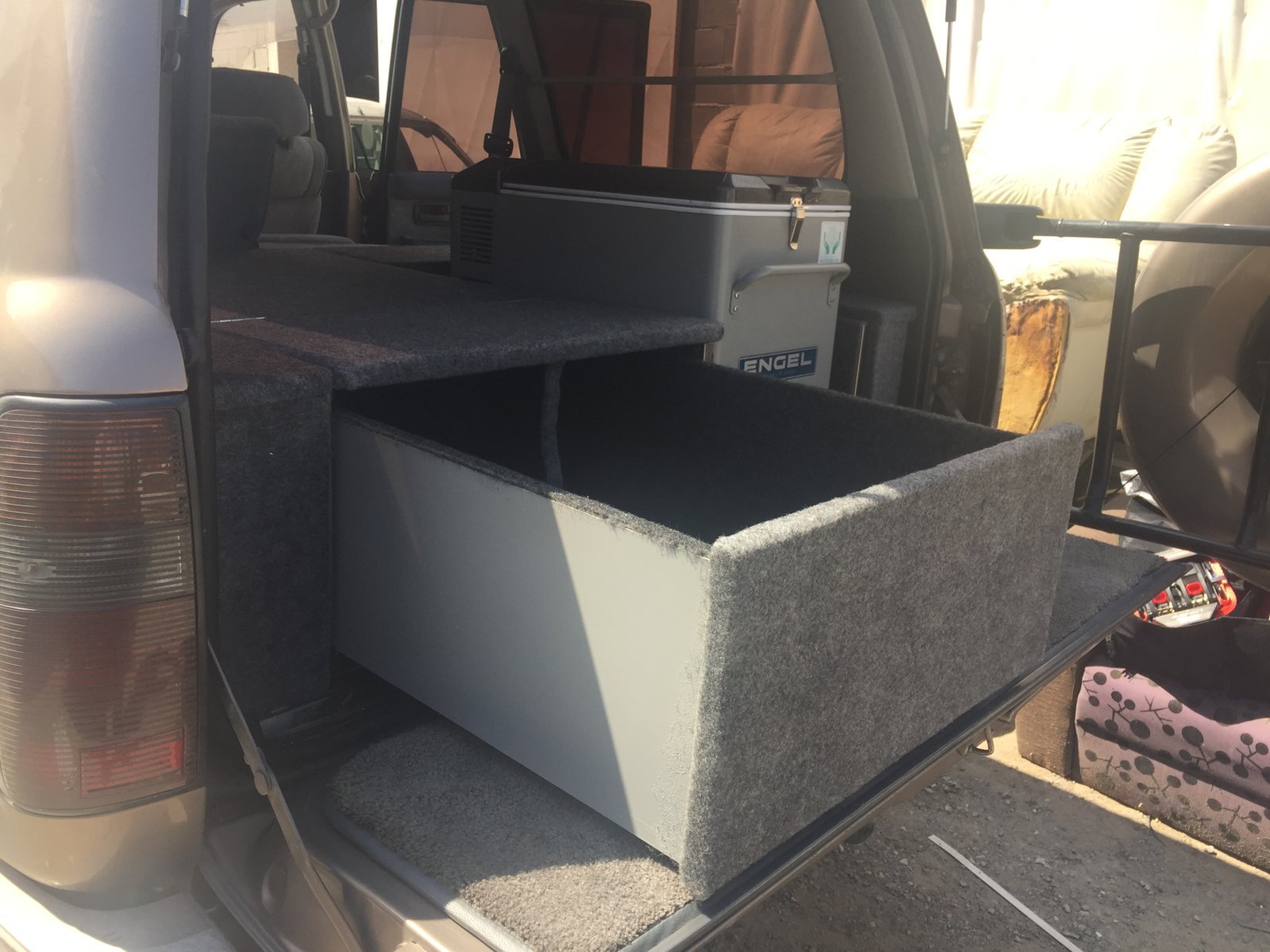

    Large Draw pullout to tailgate with over hang top pop up lid.

    IMG_6445.JPG IMG_6448.JPG

  4. Dervis Garip

    Dervis Garip Well-Known Member Supporter I am in cyprus

    1,291
    514
    113
    Garage:
    Map

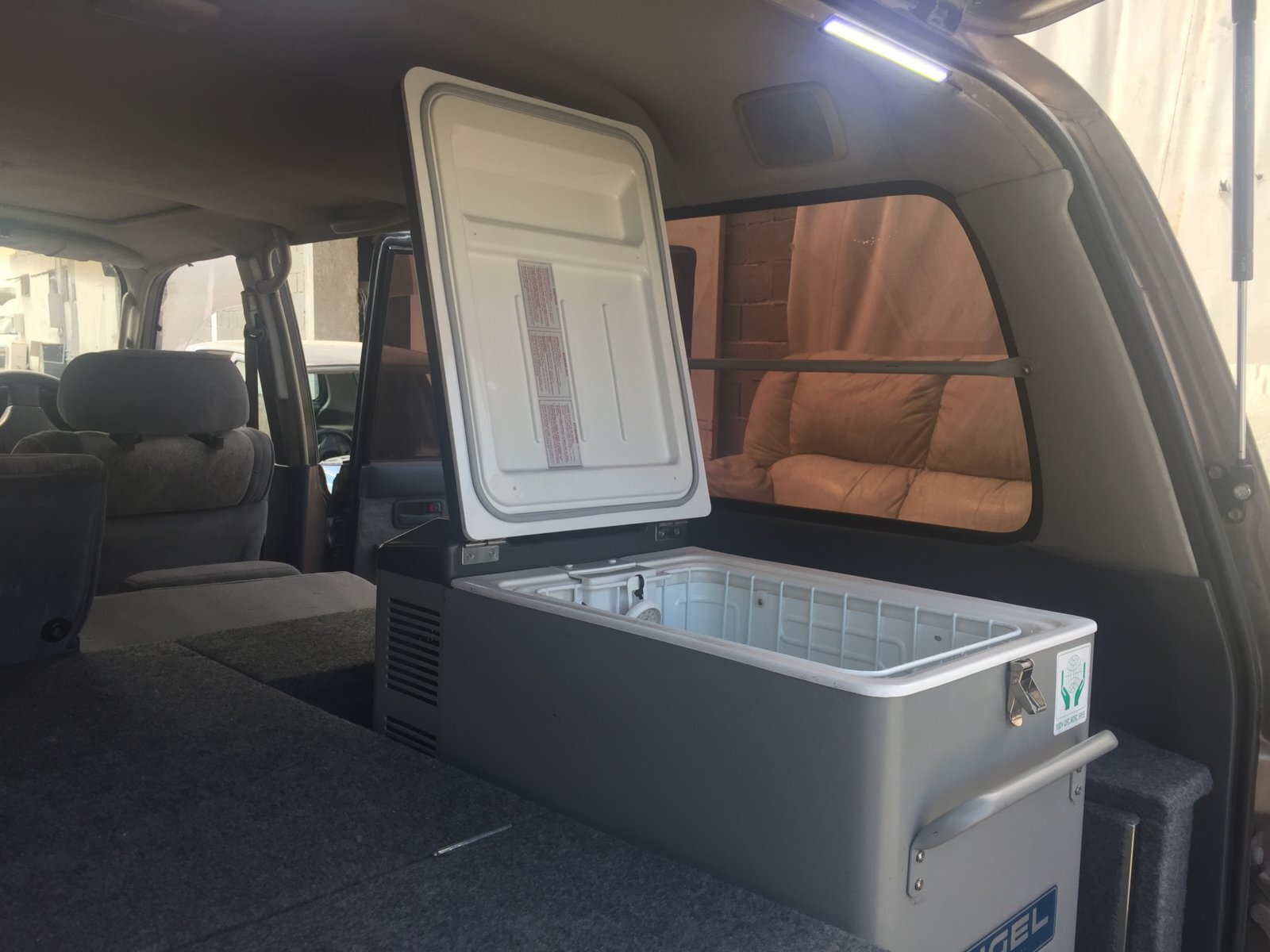

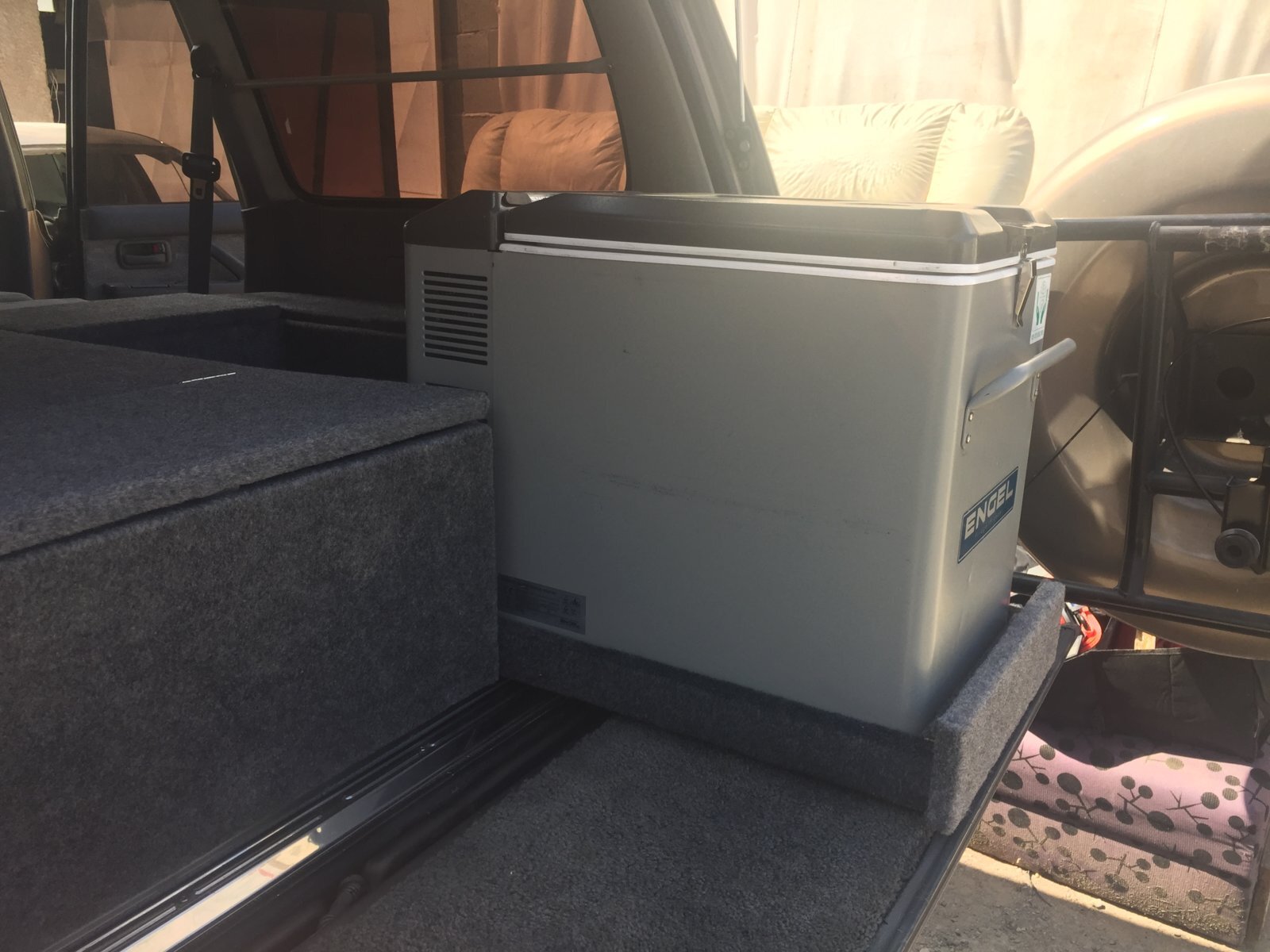

    Pull out fridge slider with support fixings not to slide on the move. Handle is the fridge for simplicity.


  5. Dervis Garip

    Dervis Garip Well-Known Member Supporter I am in cyprus

    1,291
    514
    113
    Garage:
    Map

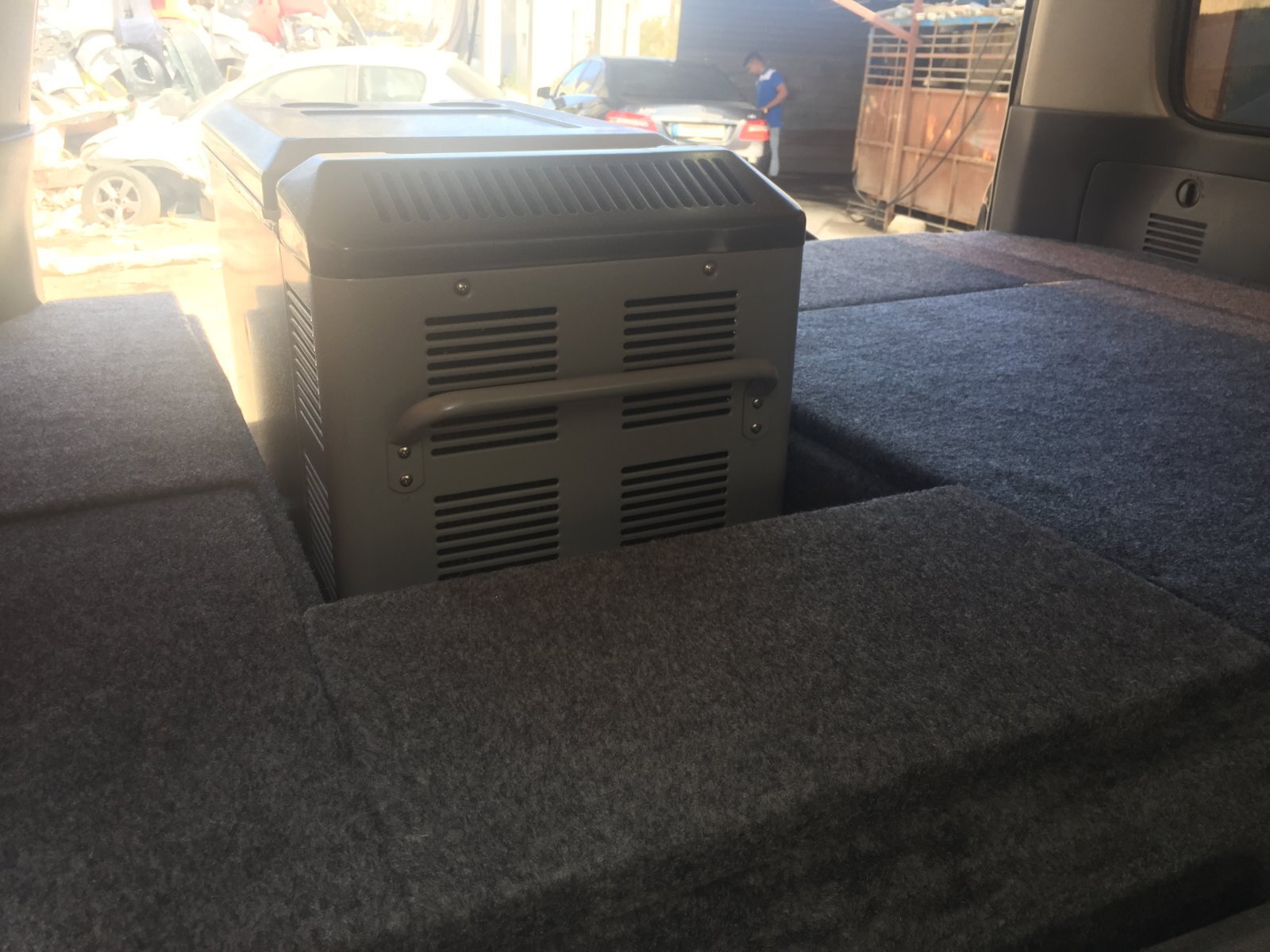

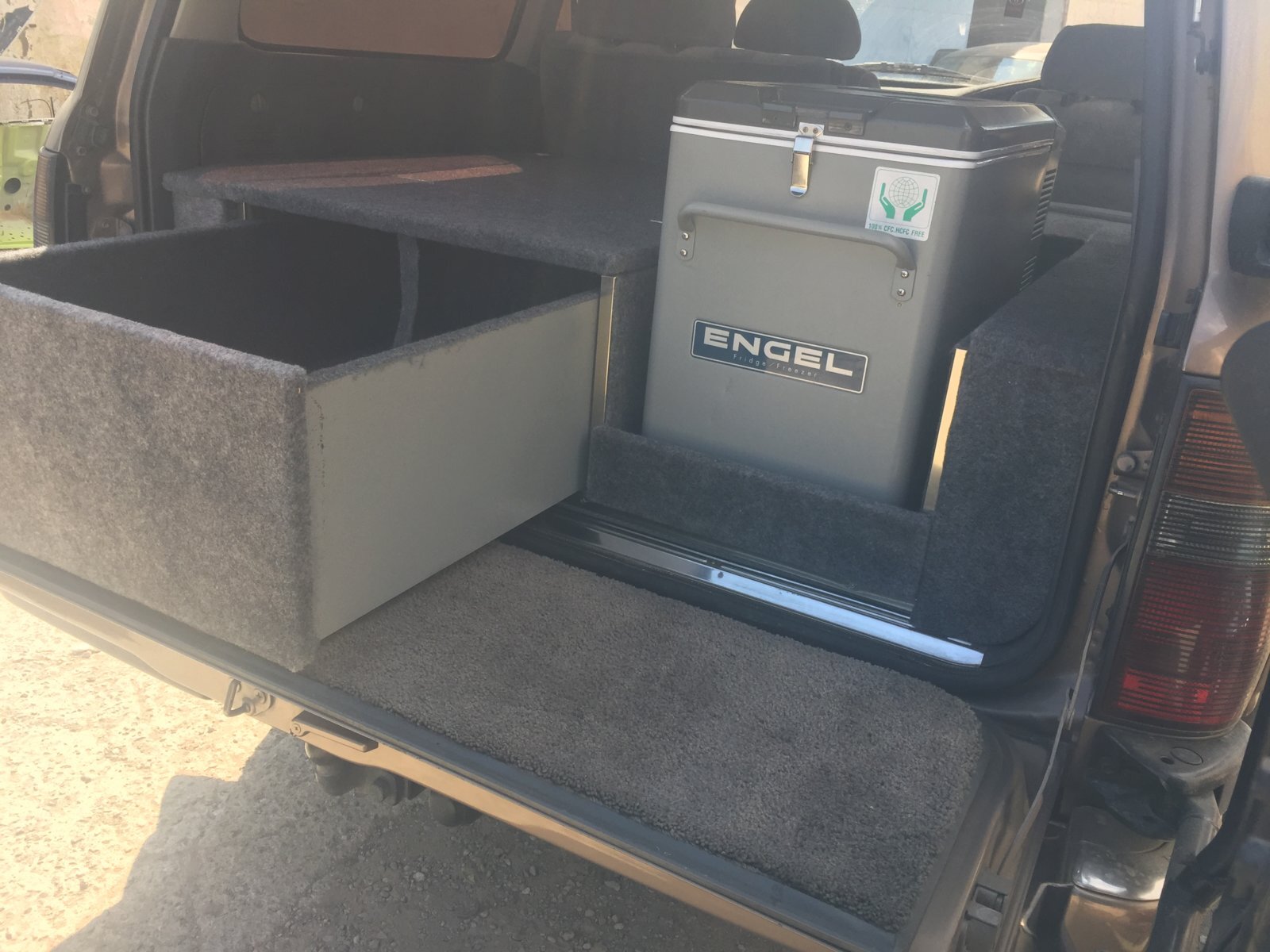

    Fridge view from the rear and battery enclosure with electronics fixings to be fitted inside.

    left more than 2cm space on the sides and more than 10 cm at the rear for airing and cables.


    Last edited: Mar 12, 2018
  6. Dervis Garip

    Dervis Garip Well-Known Member Supporter I am in cyprus

    1,291
    514
    113
    Garage:
    Map
    Battery & electronics enclosure with plastic cladding at rear separate to everything.


  7. Dervis Garip

    Dervis Garip Well-Known Member Supporter I am in cyprus

    1,291
    514
    113
    Garage:
    Map
    Guys keeping costs down as much as possible has been the plan since day one and so I'm making notes to the costings and will give an update to this after the completion of the build.

    Last edited: Mar 12, 2018
    Ben Stratford likes this.
  8. Chas

    Chas Well-Known Member I am in england

    15,346
    2,721
    113
    Garage:
    Map
    I shall be visiting Julian V soon for a few necessary jobs and get him to do whatever he can to my drawer system, when it's done I'll get a few pictures posted.

  9. Chas

    Chas Well-Known Member I am in england

    15,346
    2,721
    113
    Garage:
    Map
    Those pictures are exactly how mine will be looking, I hope.

  10. Dervis Garip

    Dervis Garip Well-Known Member Supporter I am in cyprus

    1,291
    514
    113
    Garage:
    Map
    Good to hear Chas......look forward to your one soon. I do have a surprise for you soon.

    As much I designed it most if not all the credit in the making is my carpenter and his friend the upholstery guy. Grateful for their time and experience to make this for me. (A promised camping trip is endeavoured with them) :pray:

    clivehorridge likes this.
  11. Dave 2000

    Dave 2000 Well-Known Member Supporter I am in spain

    2,459
    646
    113
    Map
    @Dervis Garip, Nice work, I too went with a custom home built version, but had a carpenter friend construct mine, I am not very good with this kind of thing. To keep costs down and make use of space, I had a box built that houses the fridge, this is on a platform that slides out. The disadvantage is extra weight, but I do gain the ability to have another 'cupboard' on top of the fridge. This allows me to use space above the fridge without obstructing the lid.

    Where I am struggling is with covering the wood, I used material designed to cover the outside of commercial speaker cabinets, a sort of thin carpet. Looked great but does not stay glued down on corners or edges, of course the speaker cabinets have corner protection which I cannot use on the drawer edges ect.

    Still thinking about it, a friend has suggested the cabinet covering used on boats, takes knocks and is weatherproof, have to look into that, Mine is still a work in progress, so still have a chance to change the choice of covering, yours look very professional Dervis, any trade secrets you want to share, friend, good buddy? ;)

    Regards

    Dave

    Last edited: Mar 26, 2018
  12. Dervis Garip

    Dervis Garip Well-Known Member Supporter I am in cyprus

    1,291
    514
    113
    Garage:
    Map
    Hi Dave by all means I’m here to help and thank you for the compliment.

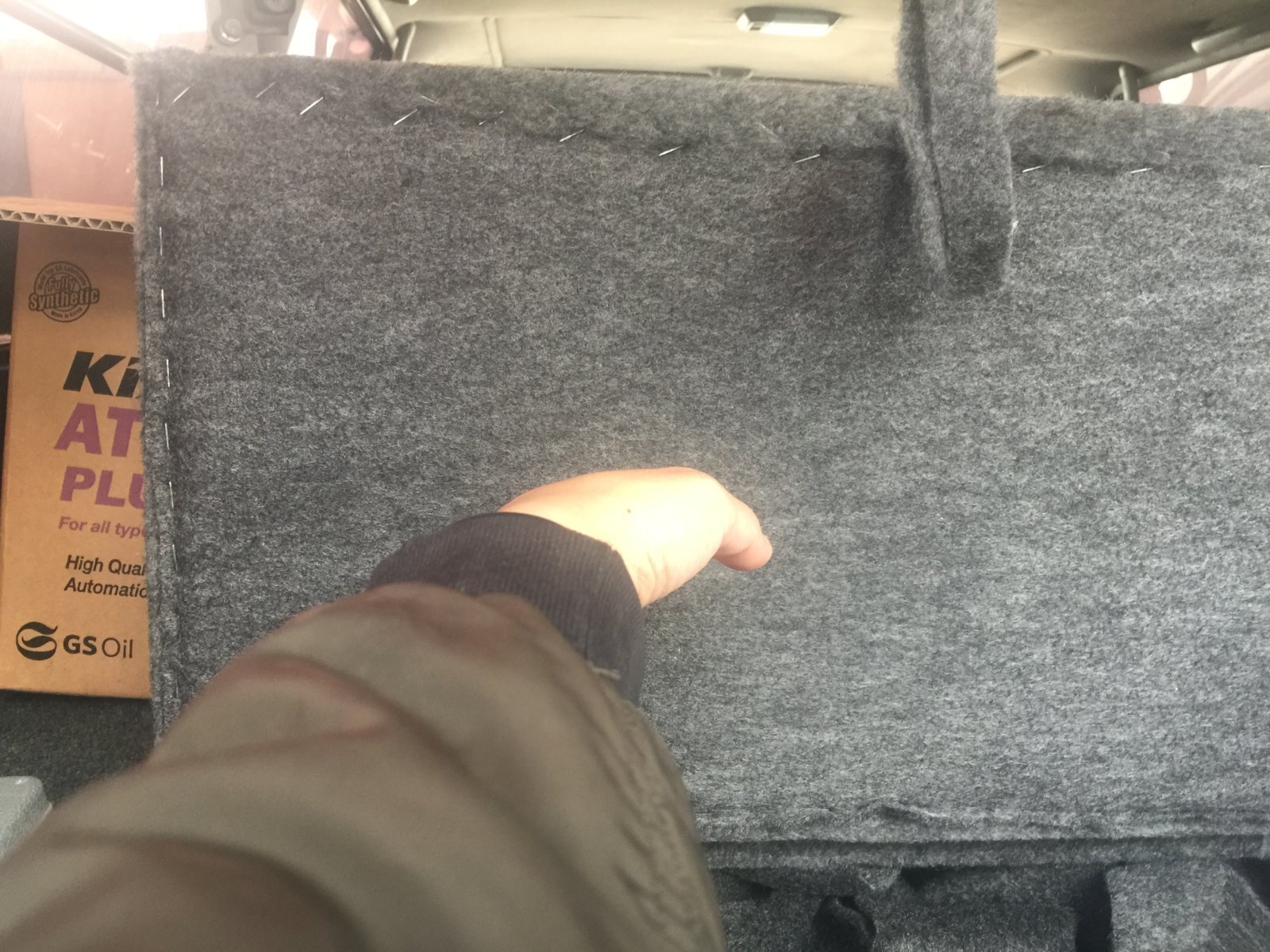

    Two factors firstly. One is that for difficult areas mostly turning the material over the corners / back, the guy used a compressor staple gun that worked perfectly and because of the material it doesn’t show.

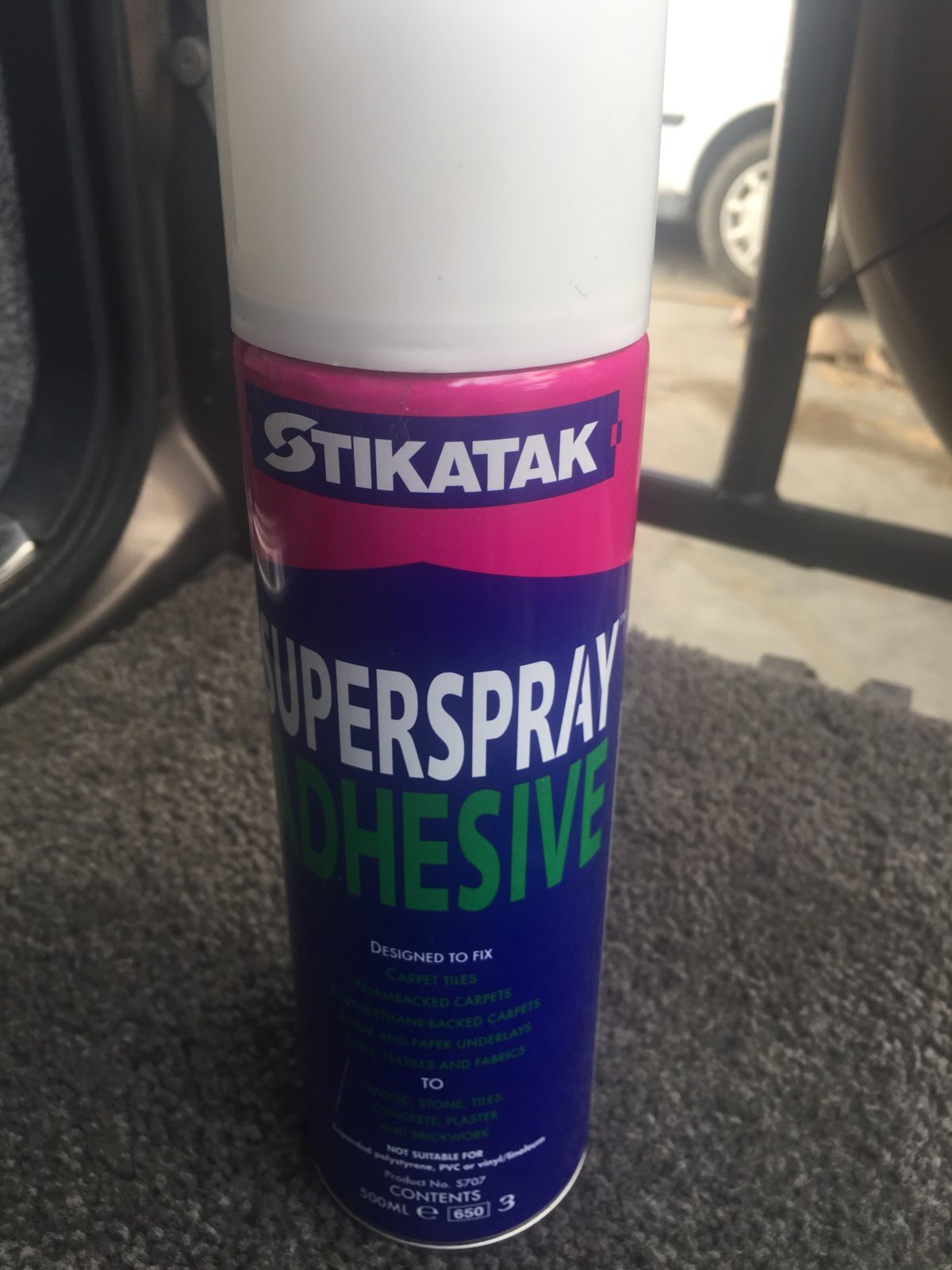

    Secondly for flat surfaces used a carpet spray shown that dries almost instantly and hold he material firmly straight.

    For your reference a couple of pictures.

    Anything else please let me know Dave.

    Thanks

    9B50EB2F-ACCF-4ED7-8CBC-93441BB78FE8.jpeg 38ECF8D7-19BE-4167-866A-458086C6A504.jpeg FE0C4CFB-FA01-49C6-B30A-296ECACD6A0F.jpeg 55101395-B499-427B-BEB0-48F96A637175.jpeg

    Last edited: Mar 23, 2018
  13. Dave 2000

    Dave 2000 Well-Known Member Supporter I am in spain

    2,459
    646
    113
    Map
    Thanks for the reply Dervis. I had used a decent staple gun, not compression type but a commercial grade none the less. The problem is mainly the drawer fronts and the edges around them. Despite purchasing what I thought was a decent spray adhesive, it did not seem to do too well.

    I need to sit down and revisit this when I get some spare time, and source a decent spray, I see the one you use is from the the UK, so will checkout availability.

    Many thanks

    Regards

    Dave

  14. Chas

    Chas Well-Known Member I am in england

    15,346
    2,721
    113
    Garage:
    Map
    Here you go Dave, I wanted a spray adhesive too, https://www.ebay.co.uk/itm/Stikatak...hash=item520724330e:m:mLe80ulQ1dqhcRqdeZP5skQ

  15. Dave 2000

    Dave 2000 Well-Known Member Supporter I am in spain

    2,459
    646
    113
    Map
    Thanks for that Chas, £4.88 a tin not bad, unfortunately they want £12.95 per tin to post it to me, :icon-biggrin:, I will try to source something closer to home.

    Thanks anyway,

    Regards

    Dave

  16. Chas

    Chas Well-Known Member I am in england

    15,346
    2,721
    113
    Garage:
    Map

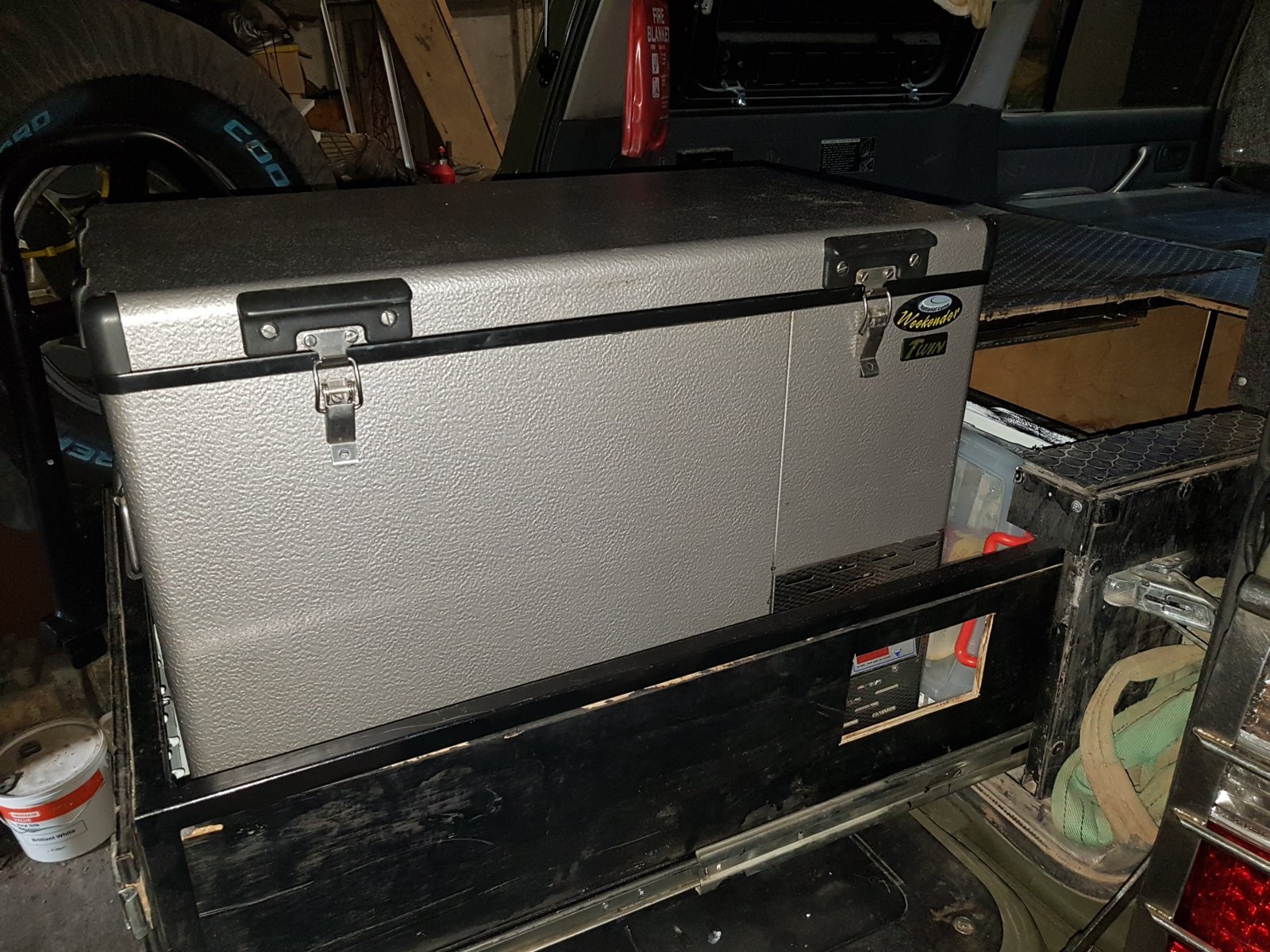

    That's a bugger, it's free post here, anyway more pics of my relocation of the fridge;

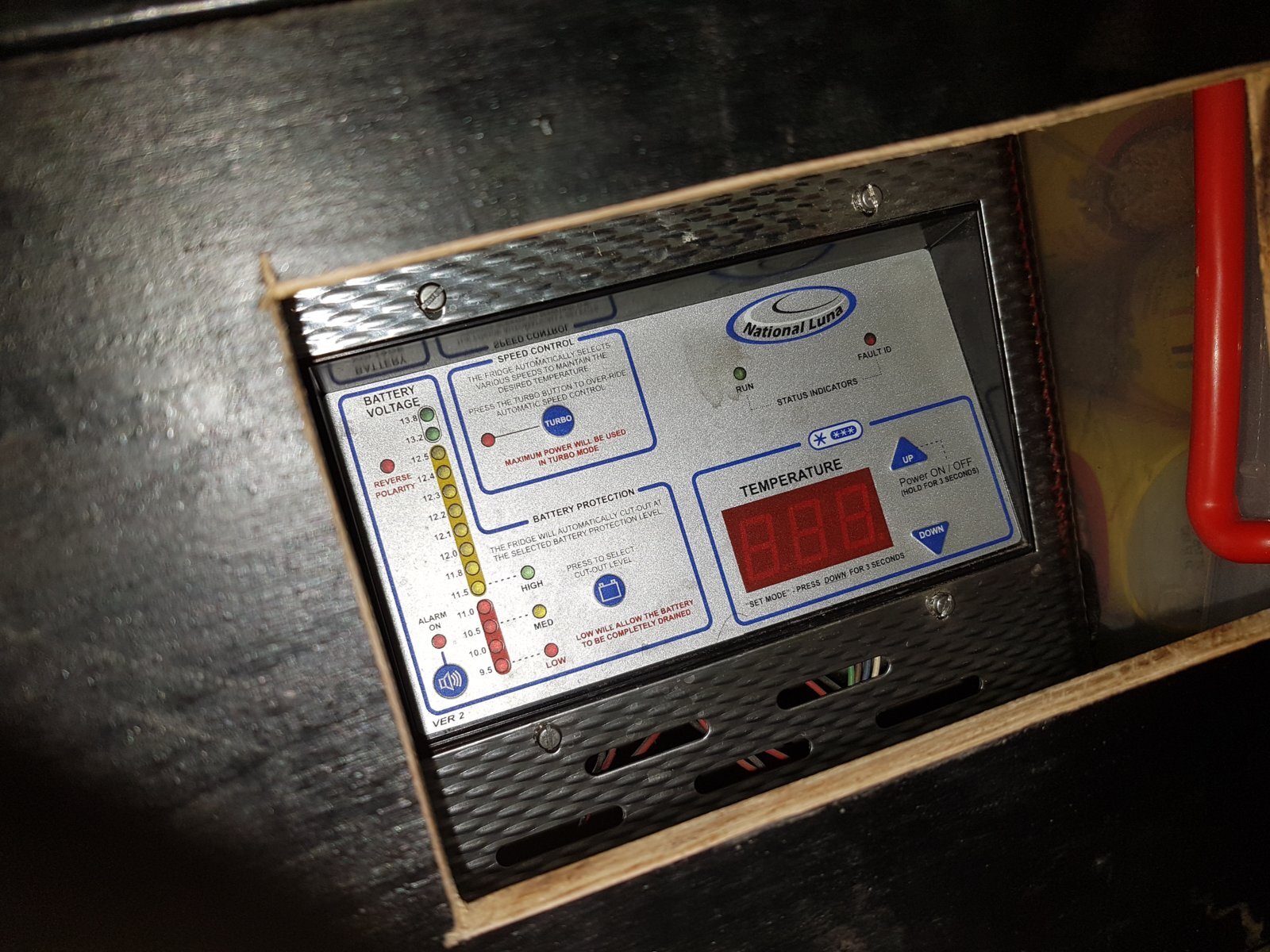

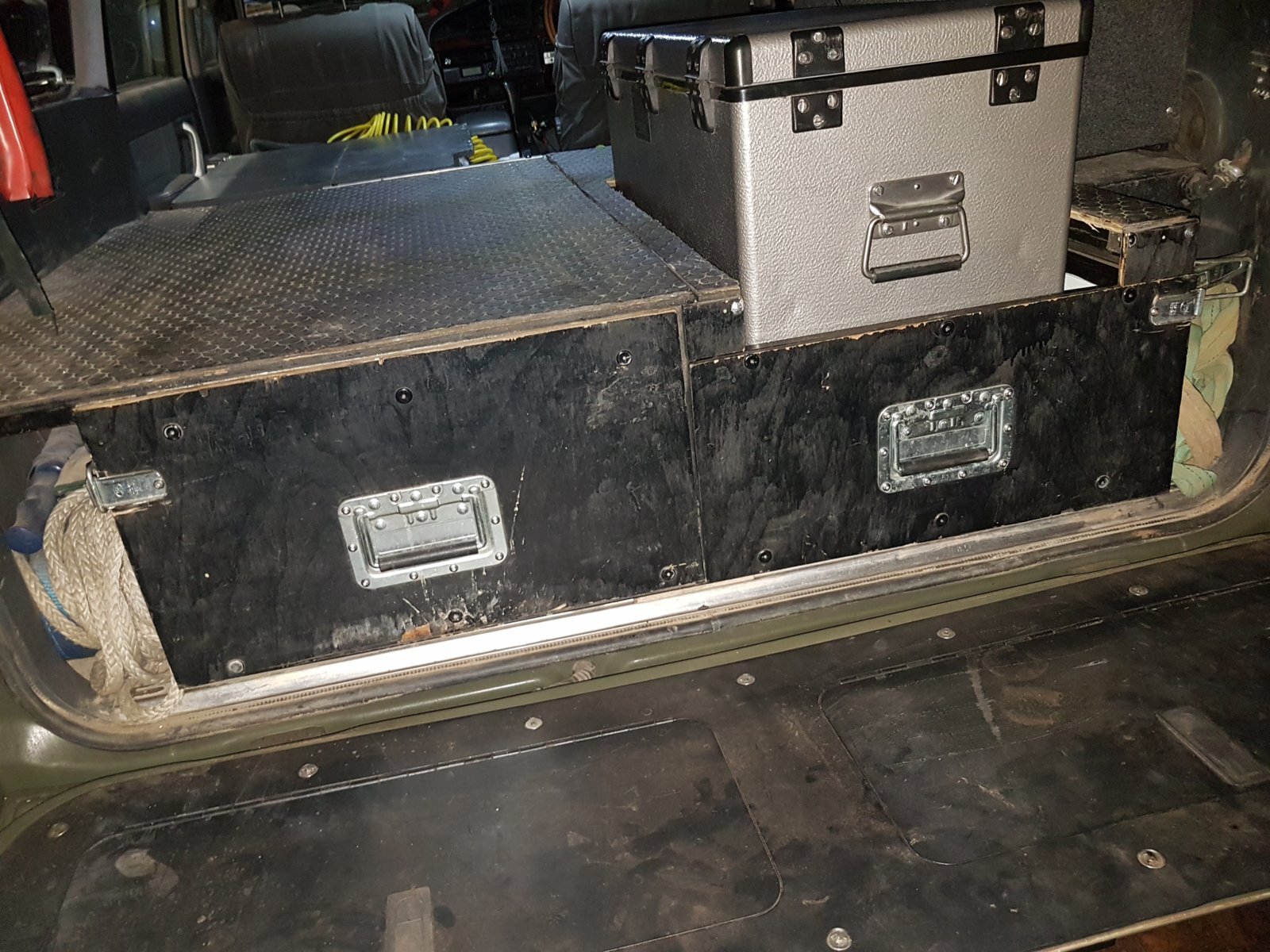

    Hole cut in the side of drawer for access to the control panel (to be cut a little larger I think), drawer pulled out, drawer pushed back, and sleeping area with a nice memory foam mattress (not there at the mo), and a fresh coat of paint on the back of the drawers would be good.

    panel.jpg drawer out.jpg drawer in.jpg sleep.jpg

    Last edited: Mar 25, 2018
    Dervis Garip and Dave 2000 like this.
  17. StarCruiser

    StarCruiser Well-Known Member Supporter Guru I am in uk

    8,257
    2,801
    113
    Garage:
    Map
    Trim bond is another very good adhesive. It really holds.

    Chas that looks like an excellent solution to what you were looking for.

    Dave 2000 and Chas like this.
  18. Chas

    Chas Well-Known Member I am in england

    15,346
    2,721
    113
    Garage:
    Map
    Yes, I am very pleased with it, I have lost some storage area but also some has been freed up where the fridge used to live, it remains to be seen where I will fit in my camping equipment though.

  19. Dave 2000

    Dave 2000 Well-Known Member Supporter I am in spain

    2,459
    646
    113
    Map
    We did have a supplier here of 3M products, but they seem to have disappeared?

    Engine stripped of odds and ends for refurbishment, including the exhaust shield that split a couple of years back, Karl sent me a replacement about TWO years ago! Not a five minute job as bolts need to be drilled out of the exhaust.

    Roof rack being cut and reworked, lots going on but really really slowly due to work commitments, so will get this lot sorted and keep an eye out for an adhesive as I go.

    Regards

    Dave

  20. Dervis Garip

    Dervis Garip Well-Known Member Supporter I am in cyprus

    1,291
    514
    113
    Garage:
    Map
    Nice cut out there Chas, I see what you mean now. Your fridge looks a bit bigger than mine there. How's losing a draw affected your storage requirements for you?

    Last edited: Mar 26, 2018
