Compass reset

jackie-0

New Member
I am in sweden
Jan 13, 2021
9
1
3
Hi all,

I´m a new, happy owner of a 2002 Prado 3.4 V6.

Only minor issue is that the compass on the dash only shows all directions as north.

Is there any way to do a simple reset of the compass or does it require more complicated work?

Happy for any advice!

cheers


Chris

Super Moderator
Supporter
I am in europe
Feb 24, 2010
17,130
3,903
113
Chesterfield, Derbyshire
Garage
Someone will give you the way to do it properly, but the quick answer is that don't worry, it's easy. You have to press something and drive around in circle a couple of times in an Ikea car park and it will sort itself out. No clever nonsense necessary.


Bert

Well-Known Member
Supporter
I am in great_britain
Feb 11, 2016
416
212
43
Fareham, Hampshire
What Chris said really. If I remember, it's a case of holding down the two buttons on the front simultaneously until the compass flashes, and then driving a figure of eight. It usually orientates without having to do the figure of eight though I have found.

Don't like the adverts? Remove them by becoming a supporting member.   Click here

goodoldboy

Well-Known Member
Apr 30, 2010
1,249
504
113
Nice one MODVRS .I was hoping someone would post this as i didn't fancy going out & getting the manual out of the Landcruiser.It hasn't got above 3 or 4 C here today although it was sunny. Once you're in and warm....


goodoldboy

Well-Known Member
Apr 30, 2010
1,249
504
113
thanks mate but i'm good with the paper version & my 95 is the pre facelift model. Maybe a new thread with a dropbox link or similar would be a good idea ?


jackie-0

New Member
I am in sweden
Jan 13, 2021
9
1
3
Big thanks @MODVRS!

Reset worked perfectly although the shown direction deviates quite a bit from the direction shown on my iphone.


MODVRS

Member
I am in england
Oct 3, 2013
121
23
18
Southampton

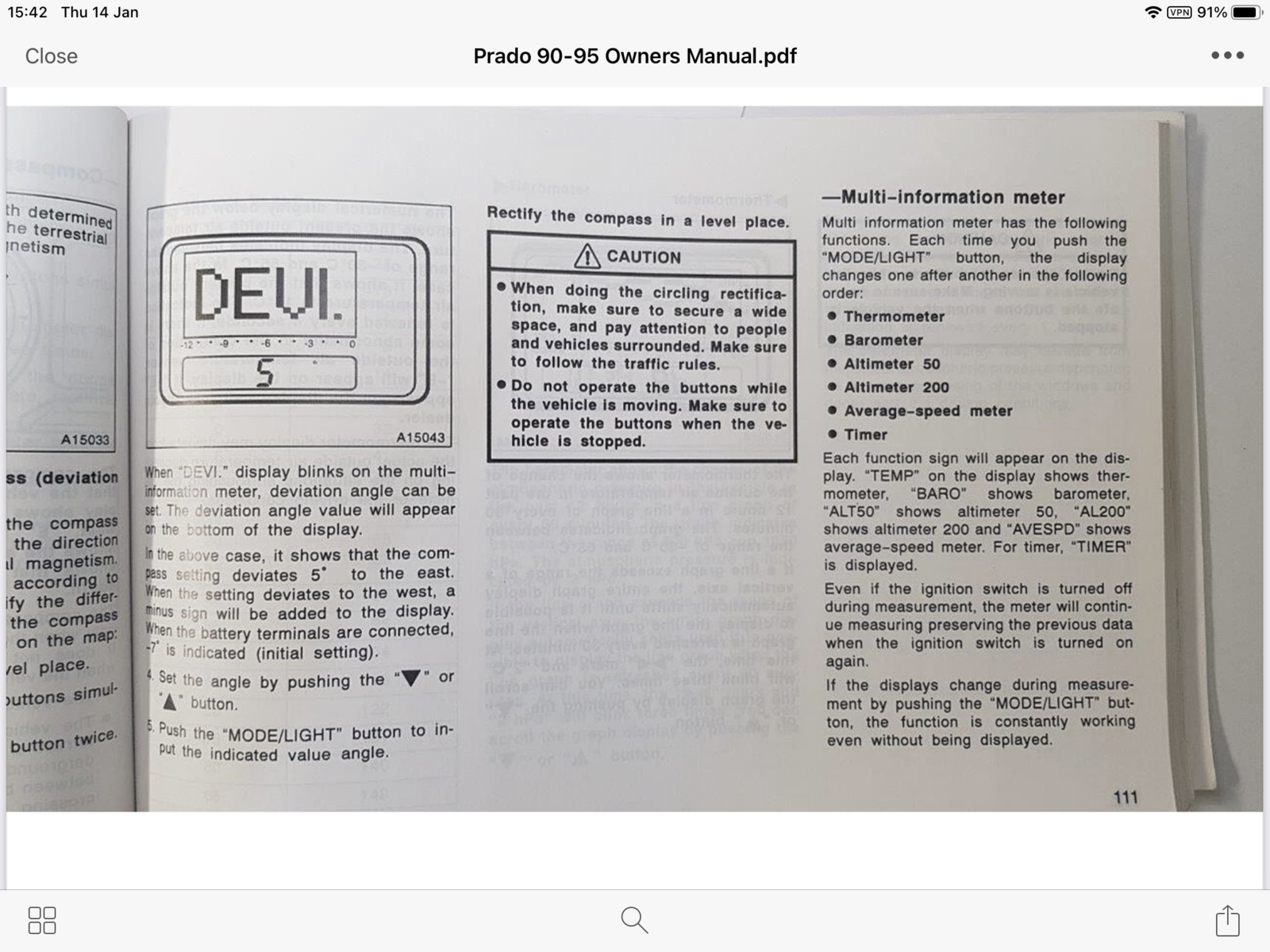

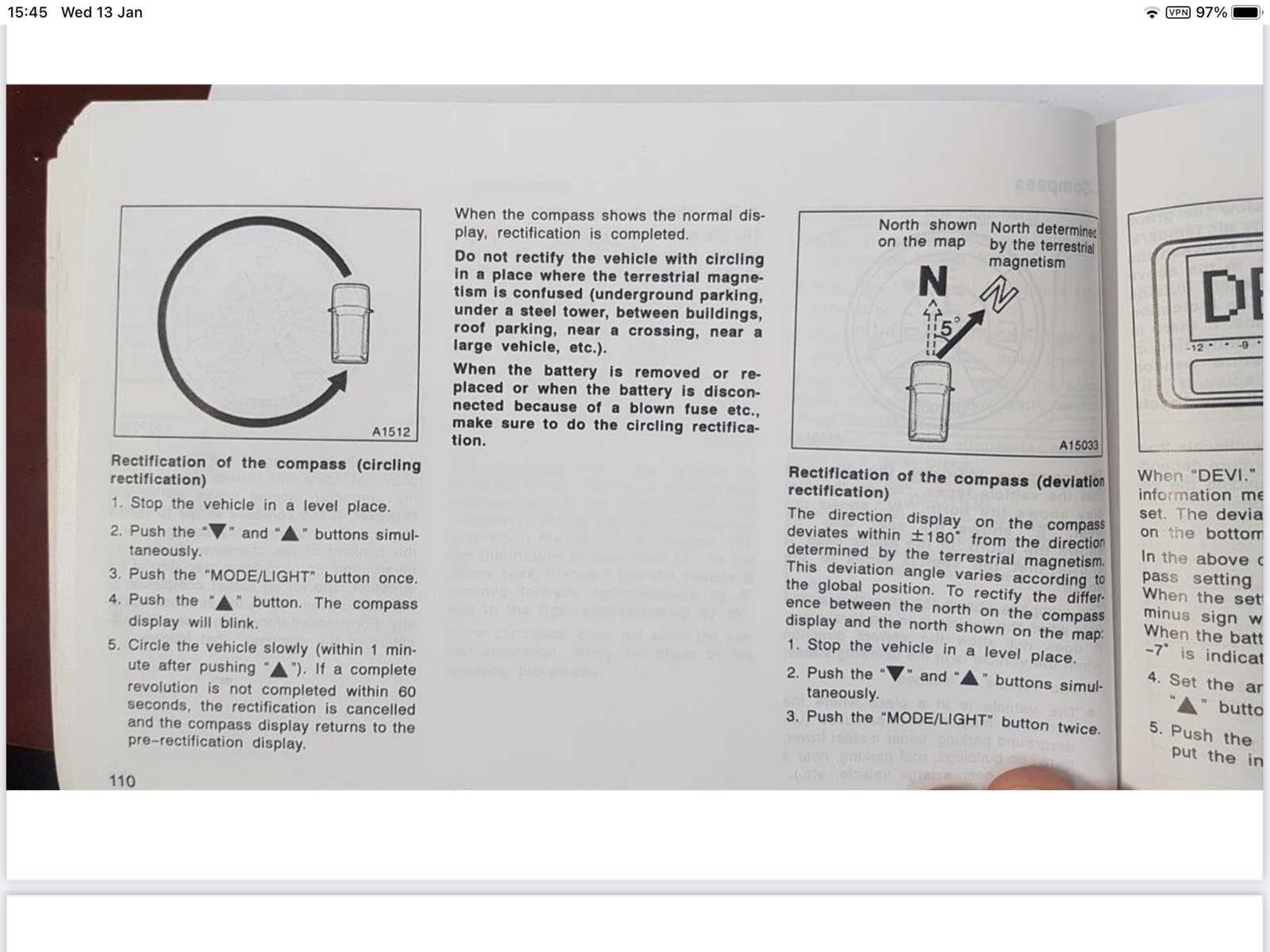

Here's the following page which should enable you to correct it. All a bit complicated for me so I've never bothered. Can provide a link for the full manual if you don't have one. I've collected numerous factory service manuals and the like since I've owned mine if you need any in the future.


Attachments

Bob

Well-Known Member
Supporter
I am in ireland
Jun 30, 2011
1,032
573
113
Co.Carlow - Ireland
Hi @MODVRS

Would you be happy to share the link to the owners manual pdf? I've never had one for my truck, and more interested to have a read than anything else. Managed without it for 12 years so far!
