Crankshaft pulley clearance

WC57

New Member
Joined
Aug 20, 2018
Messages
22
Country Flag
australia
Hi, I am a bit concerned about my harmonic balancer or crankshaft pulley clearance. I have heard of the rubber deteriorating in them allowing them to move and possible rub a hole in the front cover. Here is a pic of mine, how does it look to you guys?


GrahamR

New Member
Joined
Jun 4, 2019
Messages
47
Garage
Country Flag
uk
Needs the tarnish cleaning up after months sat on the drive but here are a couple of pics of mine. I'm not sure what the symptoms of wear would be or what to look for... Never knew this was a wear item!








Trevor

Well-Known Member
Joined
Jul 25, 2010
Messages
1,812
Country Flag
england
Getting through alternator belts faster than normal can be a symptom.

Don't like the adverts?  Click here to remove them

WC57

New Member
Joined
Aug 20, 2018
Messages
22
Country Flag
australia
Thanks guys, looks like mine has the same clearance. I did try a pry bar and block of wood but the balancer seems solid. I have a problem with alternator belt squeal. I have fitted new belts and adjusted them as per normal but it is still there under acceleration. Don't want to go too tight. Maybe I should have a closer look at the alternator pulley?


Shayne

Well-Known Member
Guru
Joined
Feb 2, 2013
Messages
13,605
New belts on my 80 were an ongoing headache of squealing until pissed off with it i tightened them too much aiming to stretch them , while squealing , for a few miles before setting them as i thought they should be again . Been fine ever since .

Not for the faint hearted but i wonder if you could feel balancer wobble if you held a screwdriver to the side of the pulley while it spun ?


4 Paw Drive

New Member
Joined
Sep 25, 2012
Messages
20
Country Flag
scotland
Not wanting to high jack this thread, but i'm in the process of replacing the timing belt on a similar model, 2001 4.2L

The old belt didn't have a travel direction on it, but the new one does. Can anyone advise on the direction of rotation of the engine.
Does the cam pulley rotate clock wise or anti -clock when viewed from the front of the vehicle?

Thanks

4 Paw Drive

J

jibberjabber

Guest
Not wanting to high jack this thread, but i'm in the process of replacing the timing belt on a similar model, 2001 4.2L

The old belt didn't have a travel direction on it, but the new one does. Can anyone advise on the direction of rotation of the engine.
Does the cam pulley rotate clock wise or anti -clock when viewed from the front of the vehicle?

Thanks

4 Paw Drive
Just out of intrest, is you new belt a genuine Toyota timing belt? When I changed mine there was no direction of travel on the new belt or the old belt.

The crankshaft pulley rotates clockwise when viewed from the front.

Last edited by a moderator:

4 Paw Drive

New Member
Joined
Sep 25, 2012
Messages
20
Country Flag
scotland
Just out of intrest, is you new belt a genuine Toyota timing belt? When I changed mine there was no direction of travel on the new belt or the old belt.

The crankshaft pulley rotates clockwise when viewed from the front.

The new one is from Milner 4 x 4, the old one was a Toyota.

Thanks for the reply.

4 P D

J

jibberjabber

Guest

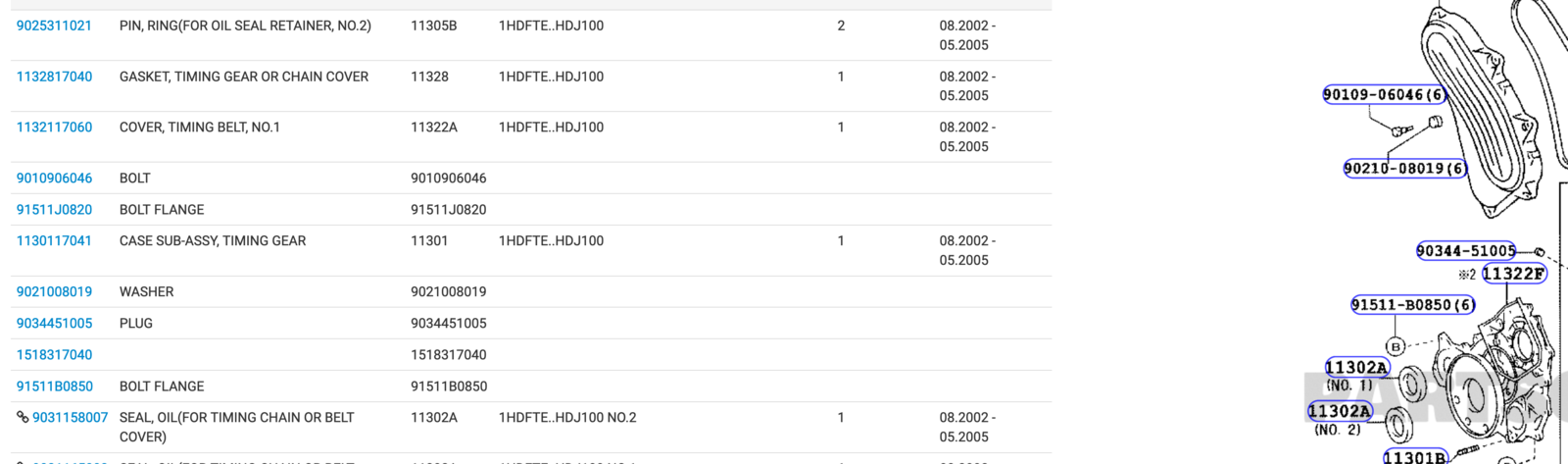

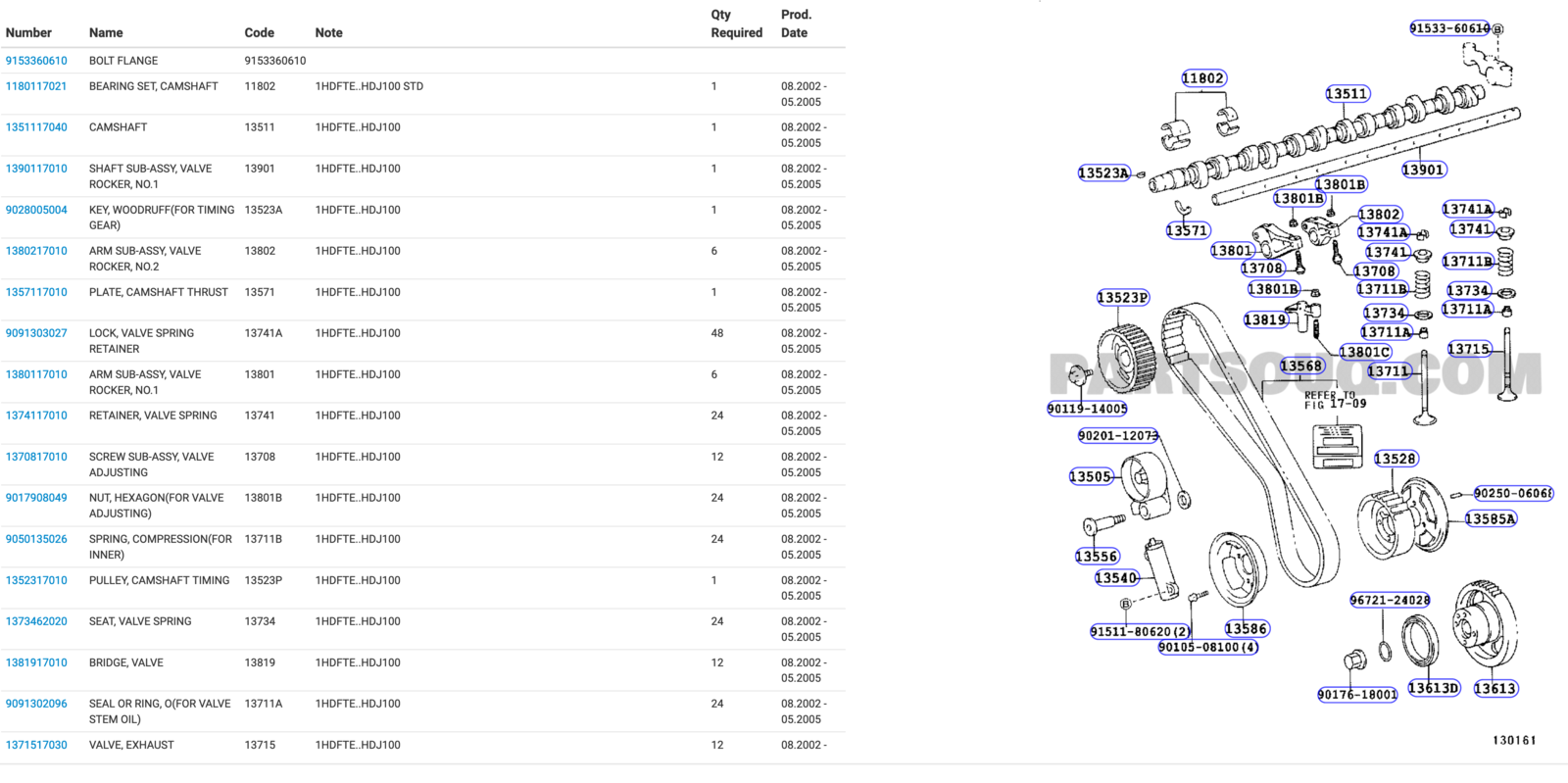

I have had very, very bad experience with aftermarket timing belts, I would strongly advise you to fit genuine belt 1356819176.

Also, idler 1350517020, washer 9020112073, shaft/bolt 1355617010, tensioner 1354017011.

And also just incase you drop/misplace, bolt 9010906046 times 2, washer 9021008901 times 2, and bolt 9151180620 times 1.

I don't cut corners when it comes to things like timing belts, the results can be catastrophic.

This is my best advice,

Good Luck


Attachments

  • Screenshot 2020-04-10 at 11.06.59.png
    Screenshot 2020-04-10 at 11.06.59.png
    466.1 KB · Views: 7
  • Screenshot 2020-04-10 at 11.28.32.png
    Screenshot 2020-04-10 at 11.28.32.png
    235.1 KB · Views: 6
