LJ70 Slow Project

[Shaun]

Then made the first template



[Shaun]

Then made and clamped panel in place



[Shaun]

Made second template and trimmed first panel



[Shaun]

Spot welded second panel in place



[Shaun]

Then seam welded and cleaned welds up



[Shaun]

Then it was time for the sills to be cut out and box section welded in.



[Shaun]

Rock sliders where then made, tube was too thick to bend so put a cut in and welded



[Shaun]

Making the box section fit the wing used panel adhesive across the back so if wings ever need to be removed



[Shaun]

Then welded on rock sliders



[Shaun]

Then made the rusted away part on the body, sandblasted and welded in place.



[Shaun]

All in etch primer ready for the black raptor finish.



[Shaun]

Time to make an exhaust, thought I’d use my mates old exhaust from his Vauxhall Tigra Drag car plus a rear box/tail pipe from a Colorado.



[Shaun]

Had this turbo flange made



[Shaun]

Shaped the pipe up cut from the old exhaust and tacked it on



[Shaun]

Welded all the way round



[Shaun]

Bought a stainless pipe step up from eBay and welded on.



[Shaun]

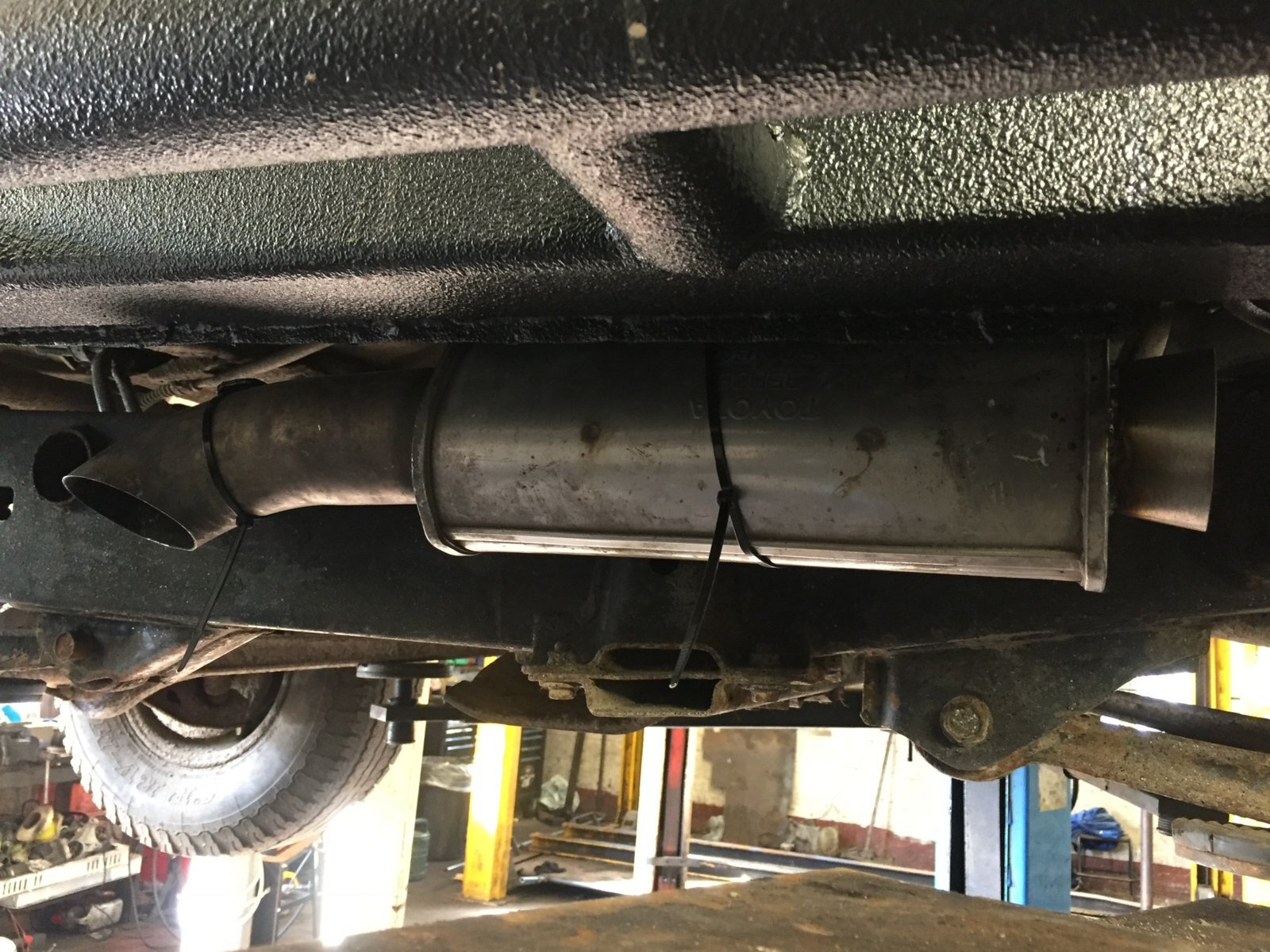

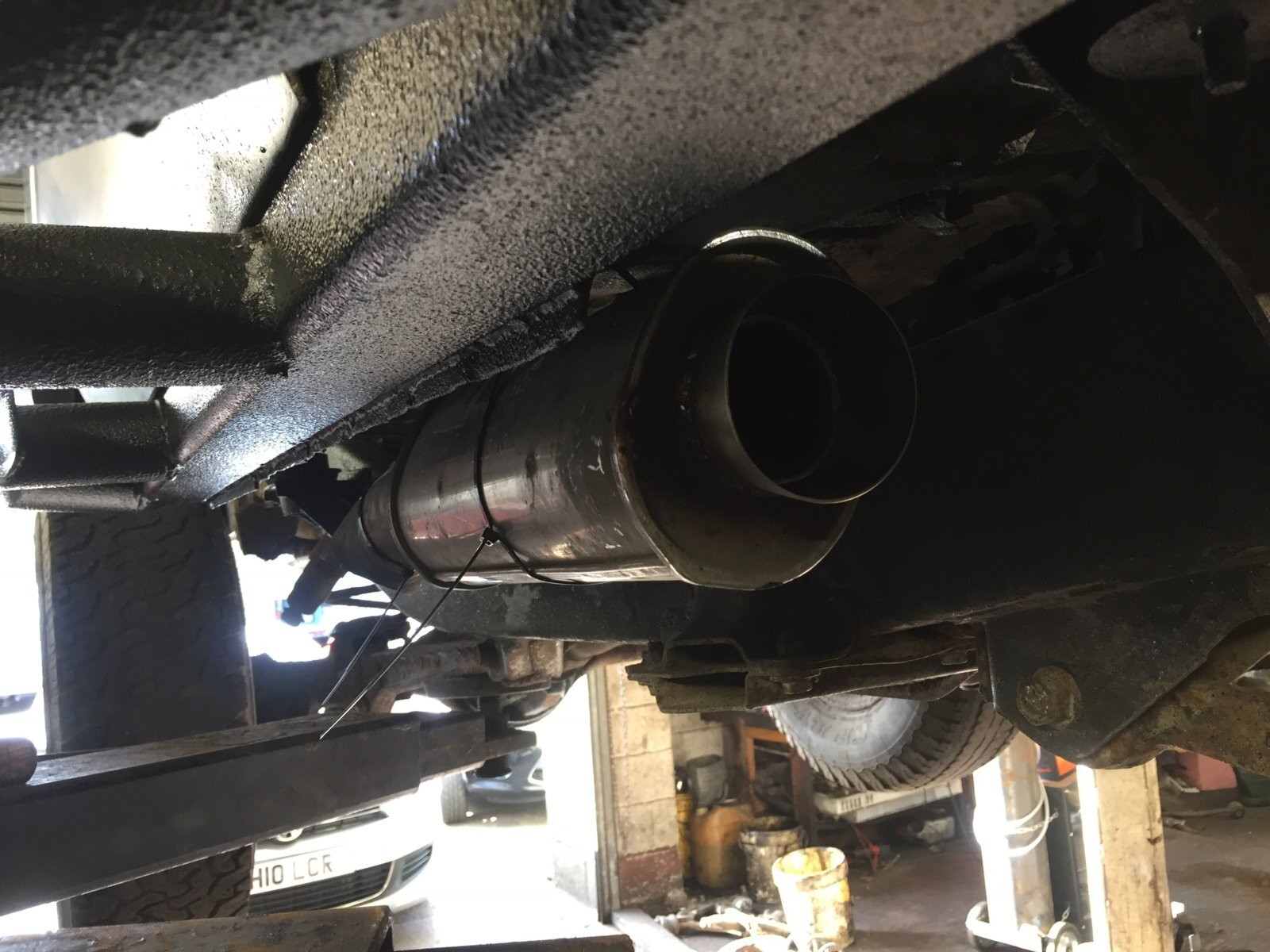

Using good old cable ties to hold roughly where I want the exhaust to sit.



[Shaun]

The bend on the drag exhaust was perfect round the chassis outrigger which was so lucky but just needed 3 slits just to change the bends slightly near the turbo.



[Shaun]

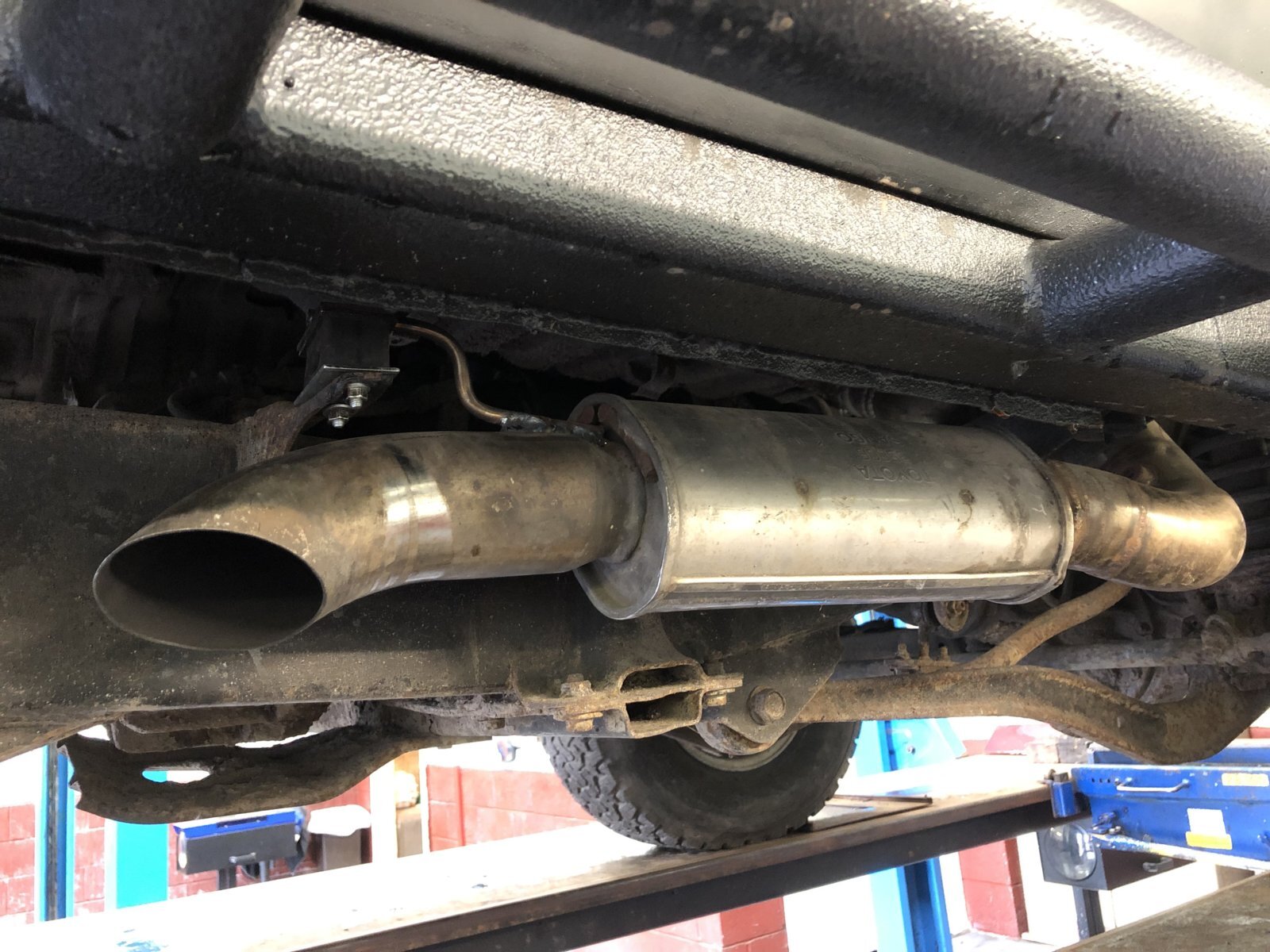

All welded up and ready for fitting



[Shaun]

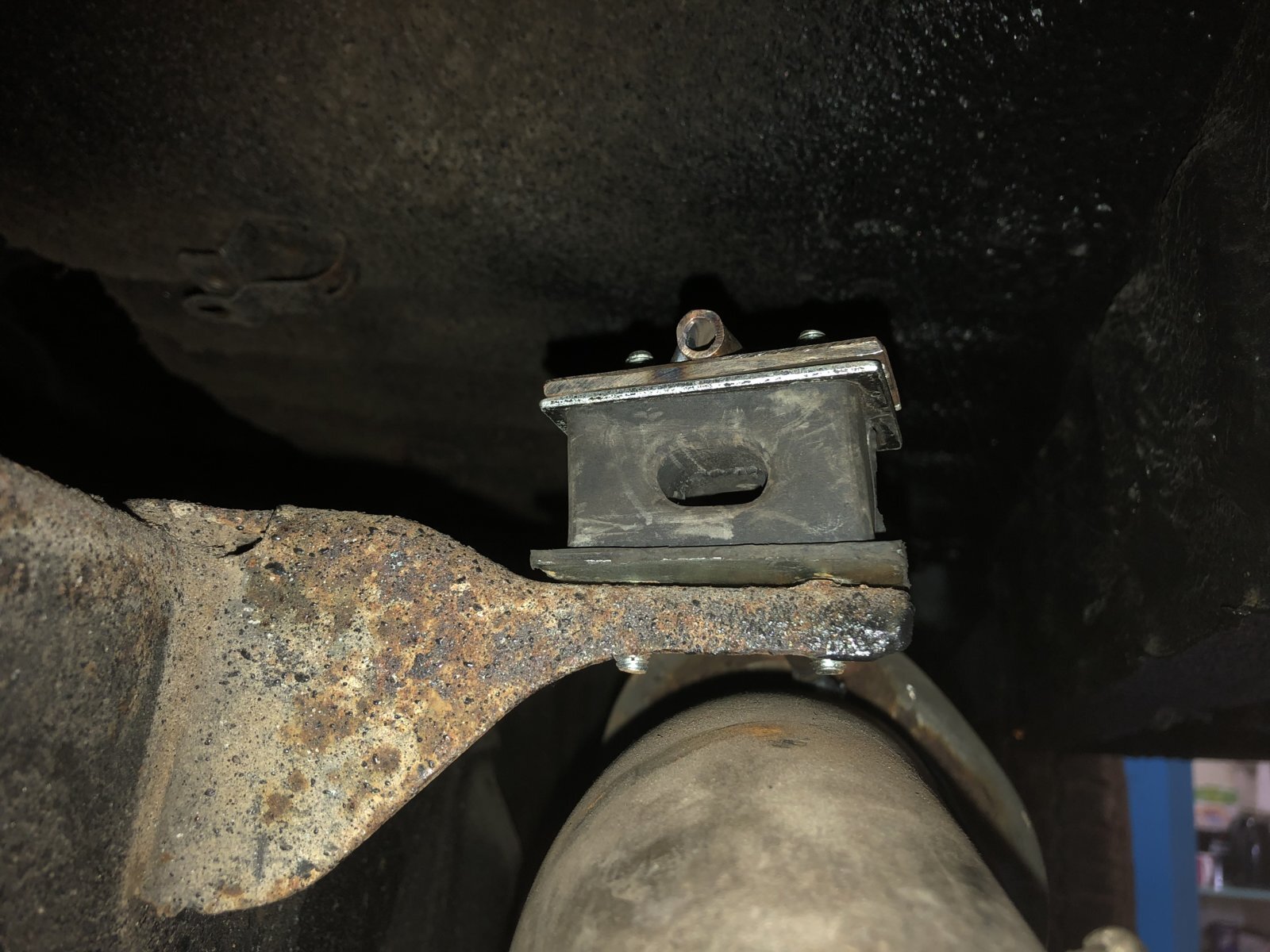

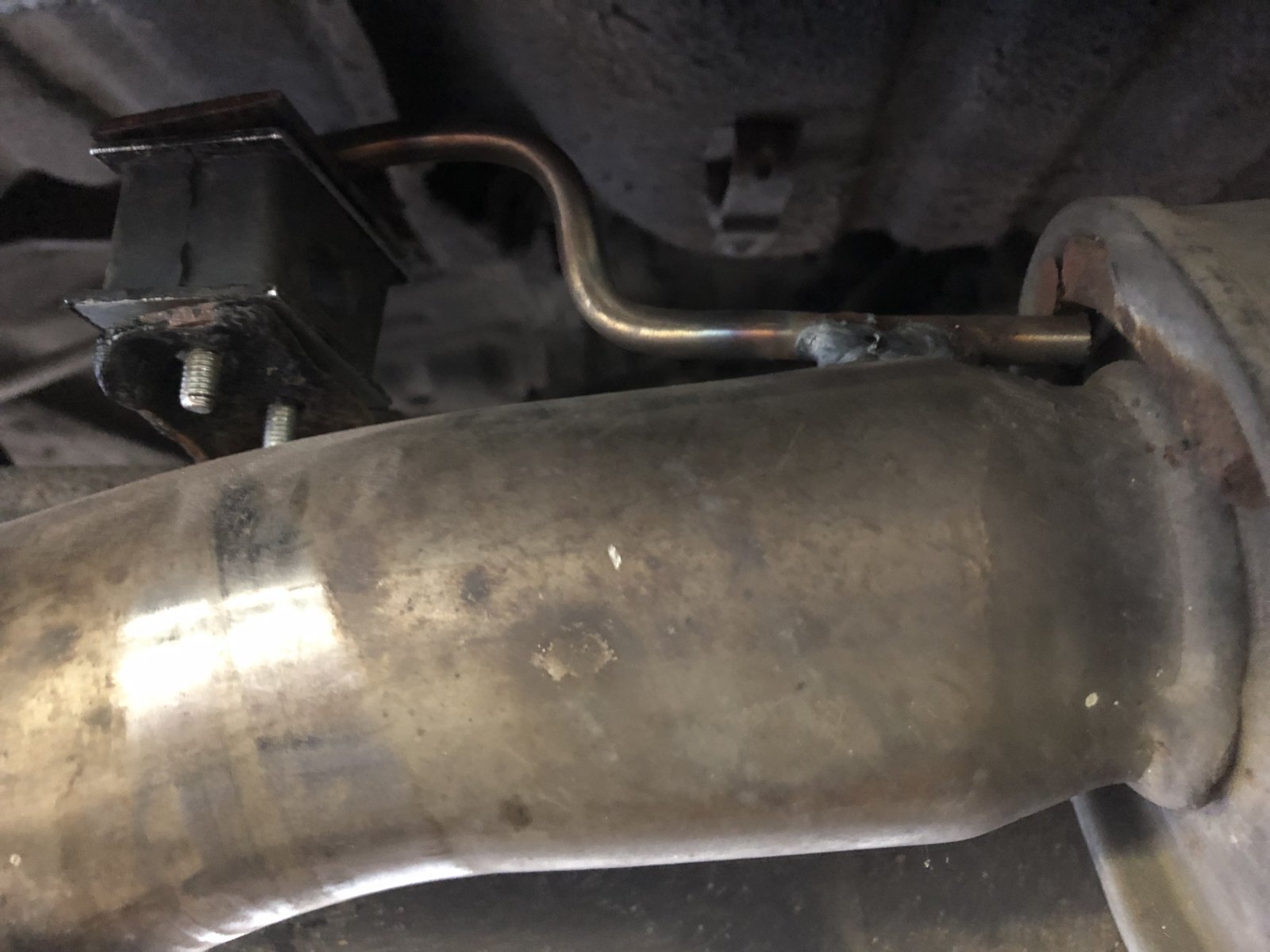

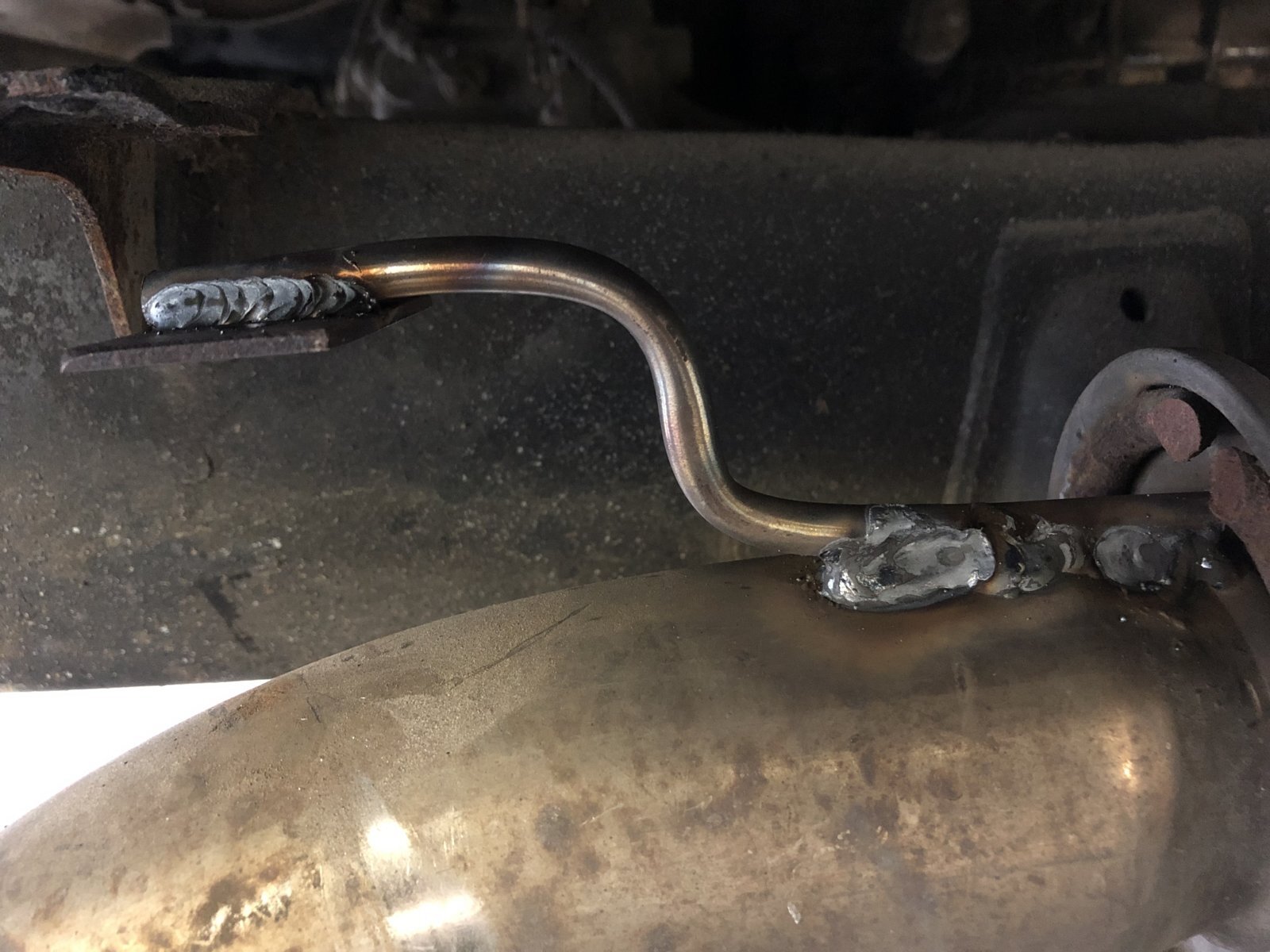

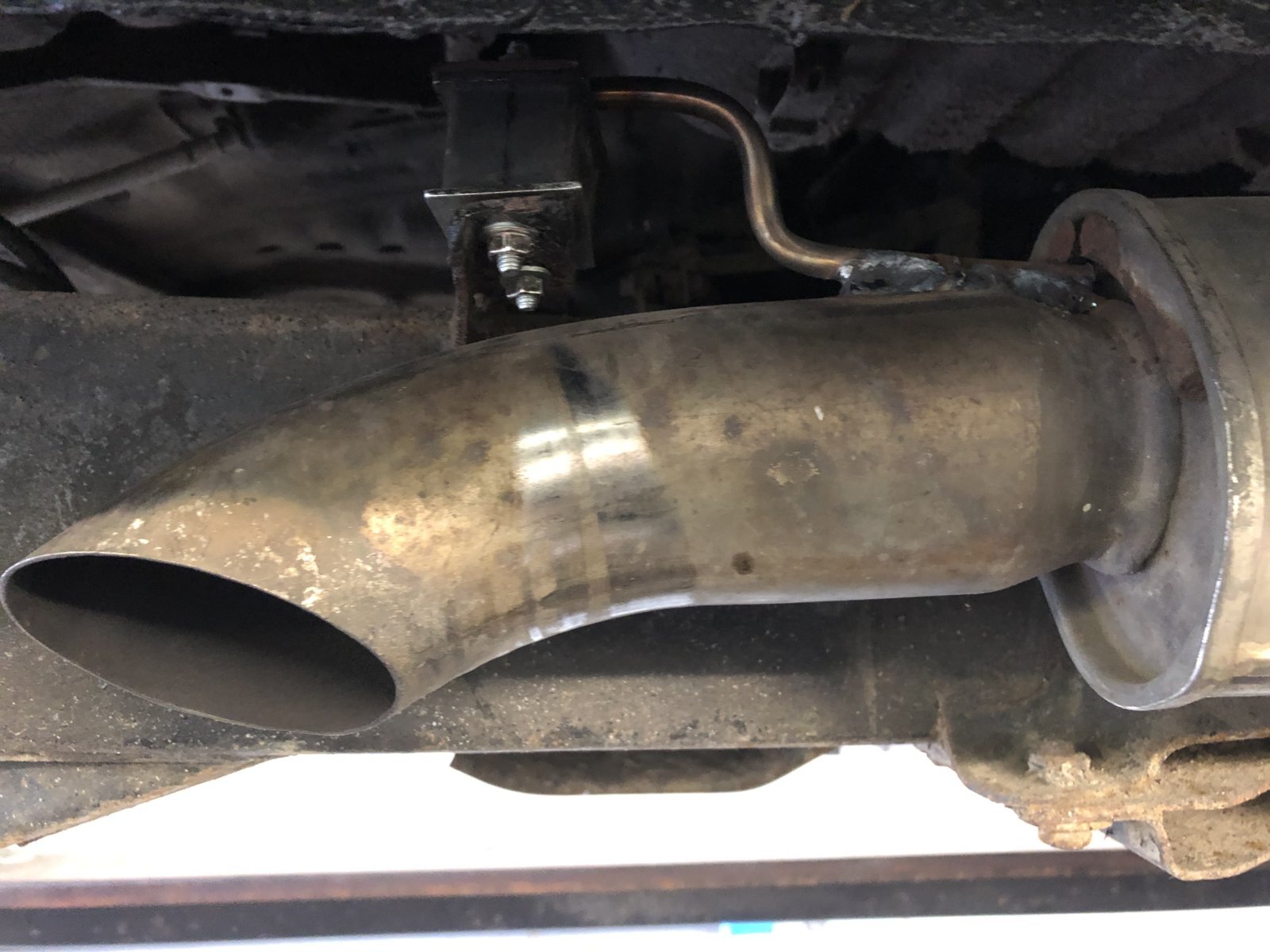

Then made a support bracket using an original but new exhaust mounting.
