LJ78 Build Thread

Ben Feb 6, 2017

  1. StarCruiser

    StarCruiser Well-Known Member Guru I am in uk

    7,648
    2,429
    113
    Garage:
    Map
    As above Ben, cracking job as always on that bumper.

    I think Gary has confirmed my thoughts as to the magnets possibly jamming the motor. Maybe you need to give it 12v off the car and see what it does.

    I'm a bit concerned you may be over charging your batteries at 14.9v, it should be 14.4 max for lead acid. Have you got the voltage sense wire connected straight to the battery via a fuse or fusible link? I can't remember what was wanted but if you need the pinouts of the alternator I may be able to help if you give me the Denso number.

  2. Ben

    Ben Well-Known Member Guru I am in australia

    5,766
    775
    113
    Map
    Thanks mate. :thumbup:

    Yeah the amount of time I put into building the rear bumper was crazy and I'm not 100% happy with it. If I was to make them to sell I think it would take 2-3 prototypes before I completely nailed the design.

    Of course if I was making them to sell though I would get them laser cut and folded which would make for a nicer bumper and cut down on the amount of welding required. :think:

    Thanks Ed, that what I was thinking. :thumbup:

    I'm thinking of making the frame for the rear storage system out of metal, bolted down to the third row seat mounts so that I will have a solid mounting point for the top tether. :think:

    :lol:

    Thanks mate. :thumbup:

    I'm pretty certain the magnets went in correctly as they had old adhesive on one end, so they went in that end down. :think:

    Yes mate, the high lift jack is the only jack I will use on this vehicle (I will show exactly where its going to be stored on my next update. ;))

    On my LJ70 I welded tubes into both bumpers and both ends of the rock sliders for my high lift jack adaptor (I wouldnt use one for wheel changes without one as that would be unsafe).

    However I found I only really need the ones on the rock sliders so on this build I am only fitting the tubes into the rock sliders and not the rear bumper or rock sliders. :ugeek:

    I also carry a wheel lift mate which is useful for lifting an individual wheel, to put a traction board underneath it. :icon-twisted:

    Which reminds me I need to think of some where for my waffle boards to live. :think:

    Thanks mate. :thumbup:

    I actually asked on the 76 owners page on Facebook last week to find out where the top tether is on the new 76 wagons and as you say its above the rear doors. :)

    One guy posted some pics for me but it wasnt very clear, I need to see one in the flesh really to decide whether thats something that could be retro fitted into mine or not. :think:

    Thanks mate. :thumbup:

    I'm still not 100% sure I will keep the factory rear locking diff. :shifty:

    I've got a complete pair of KZJ78 axles from that wreck I got all the parts from, so if the price of the replacement ring and pinion for my locking diff is going to be too high, or it proves too hard to source and/or the actuator in mine is knackered, I may just fit the KZJ78 axles with a set of Eaton E lockers and whack them under the 78. :think:

    I want an E locker for the front anyway. :icon-twisted:

    Yes now you mention it it always used to put out 14.4v in LJ. :icon-confused:

    I believe the voltage sense wire is connected to the battery. I found that when the ignition is on all 3 of these wires going to the alternator (I've only connected 2) become live. :icon-confused:

    I'm happy to admit vehicle electrics isnt my strong point, I'm happy and confident to do good quality work with regards to wiring, soldering, crimping etc. but fault finding and knowing what wires to connect where I struggle with. :icon-redface:

    Wiring pin out would be good, I dont have a Denso number as its an aftermarket one but it was just an 80 series alternator AFAIK. :thumbup:

    doyle61 likes this.
  3. StarCruiser

    StarCruiser Well-Known Member Guru I am in uk

    7,648
    2,429
    113
    Garage:
    Map
    Post up a pic of the alternator if you can Ben and I'll forward it to my mate who has a business rebuilding starters and alternators.

    Last edited: Aug 4, 2017
  4. Ben

    Ben Well-Known Member Guru I am in australia

    5,766
    775
    113
    Map
    Thanks mate, will do. :thumbup:

  5. Gary820

    Gary820 Well-Known Member I am in great_britain

    2,602
    767
    113
    Garage:
    Map
    Thinking more the correct position for the magnets, there's 2 north and 2 South. They go in alternate N-S-N-S if sequenced wrong the motor won't turn.
    If it's got volts going to it and doesn't work it's a possibility.

    clivehorridge likes this.
  6. StarCruiser

    StarCruiser Well-Known Member Guru I am in uk

    7,648
    2,429
    113
    Garage:
    Map
    Also there is often only a tiny gap so the adhesive thickness is critical, though I've no doubt you've got this bit right Ben.

  7. Ben

    Ben Well-Known Member Guru I am in australia

    5,766
    775
    113
    Map
    Thanks guys. :thumbup:

    I had no idea the magnets were poled like that! :icon-confused:

    I will have to put power directly to it and see if it works or not. :think:

    Quite far down the list of jobs at the moment though, I hoped this build would be some where near finished, weeks ago! :shifty:

    Everything seems to be taking longer than I'd have liked. :doh:

    But I am making slow progress. :)

    Rich I will try and get some alternator pics soon, thanks. :icon-wink:

    doyle61 and StarCruiser like this.
  8. StarCruiser

    StarCruiser Well-Known Member Guru I am in uk

    7,648
    2,429
    113
    Garage:
    Map
    Not certain but the North and South may need to be in a certain position relative to the position of the brushes. One thing for certain they go NSNS around the circle.

    On the rest of your post Ben, the first 90% of a job takes 10% of the time. The last 10% takes 90% of the time.

    Ben and clivehorridge like this.
  9. Ben

    Ben Well-Known Member Guru I am in australia

    5,766
    775
    113
    Map
    Long time no update! :shifty:

    The other carpenter at work hurt his neck a few weeks ago so I've been having to cover for him so havent had any down time really. :sleeping-sleep:

    Anyway.........

    Work has been progressing well on the 78 and its now on the road and has become my daily drive as I'm selling my Astra. :icon-cool:

    I fitted the bullbar.


    Followed by the winch.




    Followed by my LED driving lights and UHF aerial.



    I'm not a fan of these aftermarket amber lights, so they will have to go.



    Fitted my LED light bar next which just happened to be the perfect size for my roof rack, literally 5mm longer and it wouldnt have fitted.



    Bolted my steering guard and front recovery points on next.

    *I will get these shot blasted and electroplated or powder coated when I get back to Melbourne.





    Rear awning next.


    These top quality Aussie made awnings come with some nice 5mm thick stainless steel brackets.


    As I wanted the brackets to be as concealed as possible I needed to adjust them slightly.

    Ended up having to put a tube on the handle of my vice to bend it, its bloody hard stuff thick stainless.



    But soon I had my 2 brackets bent to shape.


    Drilled some extra holes.


    And bolted them on.



    And bolted the awning on.

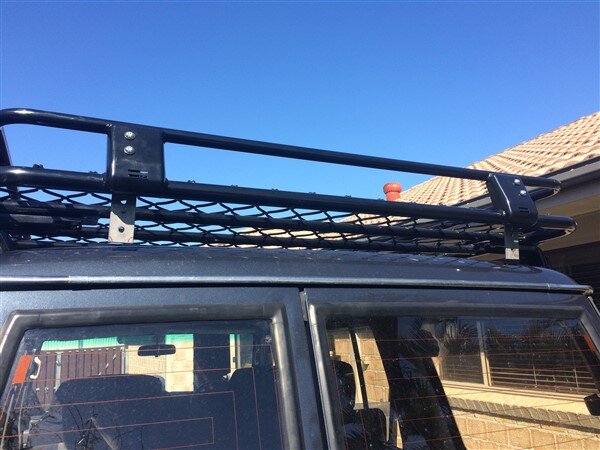

    *I ended up moving the whole roof rack further forwards a few days after this as I didnt like how far back the awning was sitting.






    I fitted my TJM seat covers.



    And dash mat.


    I had an Amayama delivery. :dance:


    Window strip clips (which turned out to be the wrong ones again. :doh:)



    A nice shiny new rear number plate light housing.



    And my rear step.



    I could finally put the rear number plate light assembly together.




    And got it fitted. :cool:



    I modified the towbar next.



    Cut all these brackets off.


    Bolted the towbar on.



    Bolted on these little plates that the diagonal braces attach to.


    Trimmed the diagonal braces slightly.


    Held them in position with a magnet.


    Tack welded them on.


    Then got it on the bench to fully weld it.



    I decided to give the rear bumper another coat of paint along with the freshly modified tow bar.

    *Both will be getting shot blasted, electro plated and powder coated once I'm back in Melbourne.

    Covered the back of the car.



    And masked off the LED reverse lights and exhaust.


    And got the towbar on a crate ready for paint.







    Once the paint was dry I bolted the new step on.



    Followed by the plastic trim pieces for the rear bumper.



    Followed by the towbar.



    Top plastic trims went on next which fill the gap between the rear bumper and body quite nicely.




    And that was the rear bumper almost done.



    Mud flaps went on last.




    As they dont come down far enough and are too high off the ground (Legally)


    I needed to extend them slightly.

    Got some rubber matting from work.


    Cut and drilled some alluminium checker plate.


    And sourced some chain.


    And bolted it all together.

    *I'm not 100% happy with them and will probably change them in the future, but for now they keep it legal.



    They can be chained up out of the way when off road.


    Alternator next.

    I played around with those 3 wires that went to the alternator, one of which I hadnt previously connected and found with a test light they were all ignition live, but out of the 2 bigger wires one went really bright and the other was slightly dimmer, so I concluded the brighter one was the battery sense wire and connected that to the terminal on that little pic I found showing different alternator terminals and it worked! :dance:


    A nice healthy charge rate.


    I then soldered the wires together.


    Followed by heat shrink.




    Tape.


    And lastly convoluted/split tube.


    I borrowed LJ's number plates and took it for a test drive. :shifty:





    A few slight issues with the instruments.

    Oil pressure gauge isnt working and engine temp is sitting quite low, it always used to sit on half way in LJ so maybe the temp sender or gauge is slightly different on the 1KZ to the 2lt.

    I'm not too worried though as I can get them fixed once I'm back in Melbourne and will be working alongside 2 auto electricians again.



    The tacho also isnt working.


    Lexi decided to climb into the 78 all by herself the other day when I was working on it in the garden. :icon-biggrin:

    She ended up falling asleep on the front seat for an hour. :lol:



    I got a stereo fitted and wired up.


    The glovebox went back in.


    But I couldnt find the striker plate that the latch clips onto to keep the damn thing closed. :doh:


    Meant to screw on here.


    After wasting an hour looking for it I gave up and order a new one.




    I got it registered! :character-beavisbu:


    And the next day the windows got tinted as I was sick of driving around in a giant fish bowl with everybody being able to see me! :shifty:

    I refuse to own a car without window tints! :eusa-naughty:






    Friday I got the aircon gassed up, which is now working beautifully! :occasion-snowman:

    And I also picked up a matching awning for the side of the car from the local place that makes them, in their own QLD factory using Australian made canvas. :icon-cool:

    Even collecting and paying cash it cost me almost 4 times what a Chinese made one off ebay/from Aldi/one of the unscrupulous 4wd accessory stores/etc. would have cost. :|

    But thats the price to support my country and the 4wd accessory manufacturing industry we have here, if no one did the jobs would all go overseas and the money with them. :shifty:

    Also when I forgot to peg my rear awning down last year when I had it on LJ and a storm hit overnight, it broke 2 parts on it when it got flung over the roof. Being Australian made I was easily and quite cheaply able to source the replacement parts for it. Not so easy to do that with a cheap Chinese one. :icon-biggrin:



    OK I'm out of time, its 6:30am now and I've got another big day ahead working on LJ. :shifty:

    As soon as I get time I will get the interior fit-out, update up as I've been very busy getting that all done. Its come up great. :thumbup:




    *Edit I tried deleting this pic from further up the post as it was a double up and now it keeps appearing at the bottom and wont let me delete it. :icon-evil:


    Last edited: Aug 26, 2017
    doyle61, Gary820 and Urban like this.
  10. Ben

    Ben Well-Known Member Guru I am in australia

    5,766
    775
    113
    Map
    Long time no update! :shifty:

    The other carpenter at work hurt his neck a few weeks ago so I've been having to cover for him so havent had any down time really. :sleeping-sleep:

    Anyway.........

    Work has been progressing well on the 78 and its now on the road and has become my daily drive as I'm selling my Astra. :icon-cool:

    I fitted the bullbar.


    Followed by the winch.




    Followed by my LED driving lights and UHF aerial.



    I'm not a fan of these aftermarket amber lights, so they will have to go.



    Fitted my LED light bar next which just happened to be the perfect size for my roof rack, literally 5mm longer and it wouldnt have fitted.



    Bolted my steering guard and front recovery points on next.

    *I will get these shot blasted and electroplated or powder coated when I get back to Melbourne.





    Rear awning next.


    These top quality Aussie made awnings come with some nice 5mm thick stainless steel brackets.


    As I wanted the brackets to be as concealed as possible I needed to adjust them slightly.

    Ended up having to put a tube on the handle of my vice to bend it, its bloody hard stuff thick stainless.



    But soon I had my 2 brackets bent to shape.


    And bolted them on.





    And bolted the awning on.

    *I ended up moving the whole roof rack further forwards a few days after this as I didnt like how far back the awning was sitting.






    I fitted my TJM seat covers.



    And dash mat.


    I had an Amayama delivery. :dance:


    Window strip clips (which turned out to be the wrong ones again. :doh:)



    A nice shiny new rear number plate light housing.



    And my rear step.



    I could finally put the rear number plate together.




    And got it fitted. :cool:



    I modified the towbar next.



    Cut all these brackets off.


    Bolted the towbar on.



    Bolted on these little plates that the diagonal braces attach to.


    Trimmed the diagonal braces slightly.


    Held them in position with a magnet.


    Tack welded them on.


    Then got it on the bench to fully weld it.



    I decided to give the rear bumper another coat of paint along with the freshly modified tow bar.

    *Both will be getting shot blasted, electro plated and powder coated once I'm back in Melbourne.

    Covered the back of the car.



    And masked off the LED reverse lights and exhaust.


    And got the towbar on a crate ready for paint.







    Once the paint was dry I bolted the new step on.



    Followed by the plastic trim pieces for the rear bumper.



    Followed by the towbar.



    Top plastic trims went on next which fill the gap between the rear bumper and body quite nicely.




    And that was the rear bumper almost done.



    Mud flaps went on last.




    As they dont come down far enough and are too high off the ground (Legally)


    I needed to extend them slightly.

    Got some rubber matting from work.


    Cut and drilled some alluminium checker plate.


    And sourced some chain.


    And bolted it all together.

    *I'm not 100% happy with them and will probably change them in the future, but for now they keep it legal.



    They can be chained up out of the way when off road.


    Alternator next.

    I played around with those 3 wires that went to the alternator, one of which I hadnt previously connected and found with a test light they were all ignition live, but out of the 2 bigger wires one went really bright and was slightly dim, so I concluded the brighter one was the battery sense wire and connected that to the terminal on that little pic I found showing different alternator terminals and it worked! :dance:


    A nice healthy charge rate. :biggrin:


    I then soldered the wires together.


    Followed by heat shrink.




    Tape.


    And lastly convoluted/split tube.


    I borrowed LJ's number plates and took it for a test drive. :shifty:





    A few slight issues with the instruments.

    Oil pressure gauge isnt working and engine temp is sitting quite low, it always used to sit on half way in LJ so maybe the temp sender or gauge is slightly different on the 1KZ to the 2lt.

    I'm not too worried though as I can get them fixed once I'm back in Melbourne and will be working alongside 2 auto electricians again.



    The tacho also isnt working.


    Lexi decided to climb into the 78 all by herself the other day when I was working on it in the garden. :icon-biggrin:

    She ended up falling asleep on the front seat for an hour. :lol:



    I got a stereo fitted and wired up.


    The glovebox went back in.


    But I couldnt find the striker plate that the latch clips onto to keep the damn thing closed. :doh:


    Meant to screw on here.


    After wasting an hour looking for it I gave up and order a new one.




    I got it registered! :character-beavisbu:


    And the next day the windows got tinted as I was sick of driving around in a giant fish bowl with everybody being able to see me! :shifty:

    I refuse to own a car without window tints! :eusa-naughty:






    Friday I got the aircon gassed up, which is now working beautifully! :occasion-snowman:

    And I also picked up a matching awning for the side of the car from the local place that makes them, in their own QLD factory using Australian made canvas. :icon-cool:

    Even collecting and paying cash it cost me almost 4 times what a Chinese made one off ebay/from Aldi/one of the unscrupulous 4wd accessory stores/etc. would have cost. :|

    But thats the price to support my country and the 4wd accessory manufacturing industry we have here, if no one did the jobs would all go overseas and the money with them. :shifty:

    Also when I forgot to peg my rear awning down last year when I had it on LJ and a storm hit overnight, it broke 2 parts on it when it got flung over the roof. Being Australian made I was easily and quite cheaply able to source the replacement parts for it. Not so easy to do that with a cheap Chinese one. :icon-biggrin:



    OK I'm out of time, its 6:30am now and I've got another big day ahead working on LJ. :shifty:

    As soon as I get time I will get the interior fit-out, update up as I've been very busy getting that all done. Its come up great. :thumbup:

  11. Ben Stratford

    Ben Stratford Well-Known Member Supporter I am in england

    1,264
    270
    83
    Map
    Great to see it nearing completion Ben, an inspiring sight.
    Do you have a first trip planned?

  12. Gary820

    Gary820 Well-Known Member I am in great_britain

    2,602
    767
    113
    Garage:
    Map
    It's looking great Ben.

  13. StarCruiser

    StarCruiser Well-Known Member Guru I am in uk

    7,648
    2,429
    113
    Garage:
    Map
    Great job as always Ben. Well done. :clap::thumbup:

  14. Ako

    Ako Member I am in australia

    107
    64
    28
    Map
    looking pretty good Ben. Wish they still made them from the factory like that. :)

    You will probably find that awning lasts way longer, all the chinese canvas I have seen on camper trailers is inferior quality.

  15. AndyCook

    AndyCook Well-Known Member I am in scotland

    3,443
    282
    83
    Garage:
    Map
    Great work, good to see it on the road again

  16. Ben

    Ben Well-Known Member Guru I am in australia

    5,766
    775
    113
    Map
    Thanks guys, I'm really pleased with it. :thumbup:

    Ben, I wanted to do a trip to Fraser for my birthday but my wife will be too far along in her pregnancy by then. :doh:

    So were going down to Byron for a long weekend camping instead. Wont be any 4wding sadly, but we will be camping and I'm hoping to have a solar panel by then so we can be relatively self sufficient without having to start the engine for 3 days. :icon-biggrin:

    Not sure when I will get to give it a proper shake down off road, here on the Gold Coast I'm very limited with where I can go. :thumbdown:

    Roll on Melbourne where I will once again be spoilt with amazing 4wd opportunities! :dance:

  17. Ako

    Ako Member I am in australia

    107
    64
    28
    Map
    ^ And get some VB instead of that XXXX rubbish :)

  18. Ben

    Ben Well-Known Member Guru I am in australia

    5,766
    775
    113
    Map
    VB :wtf: :puke-front:

    I drink TED or Boags Premium. :icon-cool:

  19. Paddler Ed

    Paddler Ed Well-Known Member I am in australia

    1,513
    210
    63
    Garage:
    Map
    Boags XXX, Coopers Green or Red, or the local Pale Ale is the winner here.

    Unfortunately I can only get Boags XXX via Dan Murphy's online...

  20. Ben

    Ben Well-Known Member Guru I am in australia

    5,766
    775
    113
    Map
    OK time for an update on the interior fit out. :icon-biggrin:

    I purchased the 50 litre Boab tapered water tank that I spotted many months ago.

    I suspect it was designed for the back of a 70 series, most likely the Troopy, as it fits perfectly between the wheel arches. :icon-cool:


    While designing the interior fit out I wanted to make sure I could still access the handy underfloor storage area, which was now full of recovery gear.



    But the fridge would sit over part of it, so a smaller access flap would be required.


    I had also decided that the High Lift jack would fit beautifully above the water tank.



    I'm a huge fan of false floors in 4wd's when setting them up for touring/overlanding. It creates a nice flat solid surface and makes building the system above much easier. :clap:

    So it was a no brainer to include one in this build. :icon-biggrin:

    I went to Bunnings and bought some structural ply and a few meters of marine carpet.


    And with the rear seats folded up out of the way I could begin building the false floor.


    Made a cardboard template to fit snugly around the wheel arches.




    And marked and cut the ply.






    The false floor will be held down by 4x M10 bolts into captive nuts in the floor pan from the 3rd row seats.

    But I wanted to add some brackets at the front of the false floor to add some extra bolts, not that it was really necessary.

    Cut and drilled some 40mm x 5mm steel.


    They bolt down to the floor with one of the rear seat bolts


    And will bolt up into the ply.


    I decided to add a piece of ply under the back edge to help it sit flat on the floor as the rest of the board was sitting on top of the ridges in the floor, but their are no ridges right at the very back, in front of the doors.


    It would also prove to be a useful edge to support the access flap.

    *I just wish I had routered it down slightly where the flap sits, to allow for the thickness of the carpet.


    I worked out where the holes needed to be for the 4 x M10 counter sunk headed bolts.



    Countersunk them.


    And drilled and added the M8 T nuts for the 2 brackets at the other end.


    Glued and screwed the strip on the bottom.


    Then it was time for the carpet!


    Heres my top tip for this week...........

    When upholstering something like this, to get a nice neat finish I like to lay the board down and cut an equal overhang all the way around.

    To do this I used a 60mm thick spirit level and ran a knife along the edge of it.


    I then glued and stapled it to the board, trying to keep the carpet nice and taught.



    All done.


    And sat back in place, it almost didnt need bolting down, it was such a snug fit!





    Put the water tank and fridge back in.


    Next I needed to cover and fit the flap.


    In hindsight I should have routered that piece of ply I mentioned earlier, as then I wouldnt have had to leave an exposed piece of ply on the bottom of the flap, oh well.

    Top side.


    Underside.


    Cut and screwed a piece of piano hinge on.


    Fitted it.



    Made a template for the backboard which would run along the full width of the vehicle against the water tank.


    While busy designing the system I realised that behind the arch on the passenger side, next to the fridge, was a perfect spot for a 20 litre fuel or water can, as and when I need to carry one.



    Behind this I decided I would add a tool storage box, as I've designed this as a touring/camping vehicle, things that wont be needed very often like the tools and high lift jack etc. will be stored out of the way and the drawers and more accessible storage areas will house the everyday items.


    Back to the backboard.


    I marked the ply.



    And cut it out.


    I also cut the ply shelf for the top.


    I looked at what cooking gear I will be carrying in the drawers and have designed the height of the drawers to best accommodate everything.



    I got setup outside and started building the drawer system.







    I found some nice thick angle brackets to bolt it all together with.








    Lexi will travel on the left and their will be a mesh cargo barrier separating the boot area from the rest of the car, with a central mesh divide to keep her on the left.



    I upholstered the tool storage box.




    I made some blocks for the high lift jack to fit into.

    *in hindsight I should have made the groove further forwards, it will become apparent why, shortly.




    I left one face un-carpeted as they would be screwed on through that face.


    They were a nice tight fit on the high lift.






    Screwed the high lift jack blocks on.



    Started carpeting it all.



    Screwed the brackets on.



    They all got at least 1 M6 bolt going through to a T nut on the other side of the ply.







    I mentioned earlier I wish I had made the high lift jack blocks slightly differently and that was because after carpeting them and attaching them I realised the bloody jack wouldnt quite fit because of the jack base. :doh:

    So I ended up having to chisel a groove in.


    I carried on carpeting everything.




    Got it all back i the car.



















    I added some brackets to bolt.



    Added all the T nuts into the top face of the shelf.



    And carpeted it.


    I added some rivnuts into the C pillar.



    And added a bracket.


    Then everything had to come out again as I remembered I hadnt fitted the brackets to the underside of the false floor, the ones that bolt it down to the rear seat belt mounts. :doh:


    Bolted them on.



    And bolted it down.



    With it all bolted back in heres some pics of the setup 90% finished.

    Behind the rear seats is the water tank, high lift jack and gas cylinder.



    And with the seats folded back up, I have good usable rear seating for 3 and the shelf in the back is below the height of the rear seats so I can still see clearly out of the back window.


    And in the boot this is how the setup looks.









    I'm in the process now of making the 3 drawer fronts, which will be carpeted ply again, but the drawer boxes will have to wait until I'm back in Melbourne as I want to use the guillotine and folder to make them out of 2.4mm alluminium.


    doyle61, Charlie, Ako and 5 others like this.
Don't like the adverts? Become a supporter

Share This Page
