My HDJ80 Overland Build

Michael Clark Jul 10, 2018

  1. Michael Clark

    Michael Clark Active Member Supporter I am in uk

    86
    55
    18
    Map

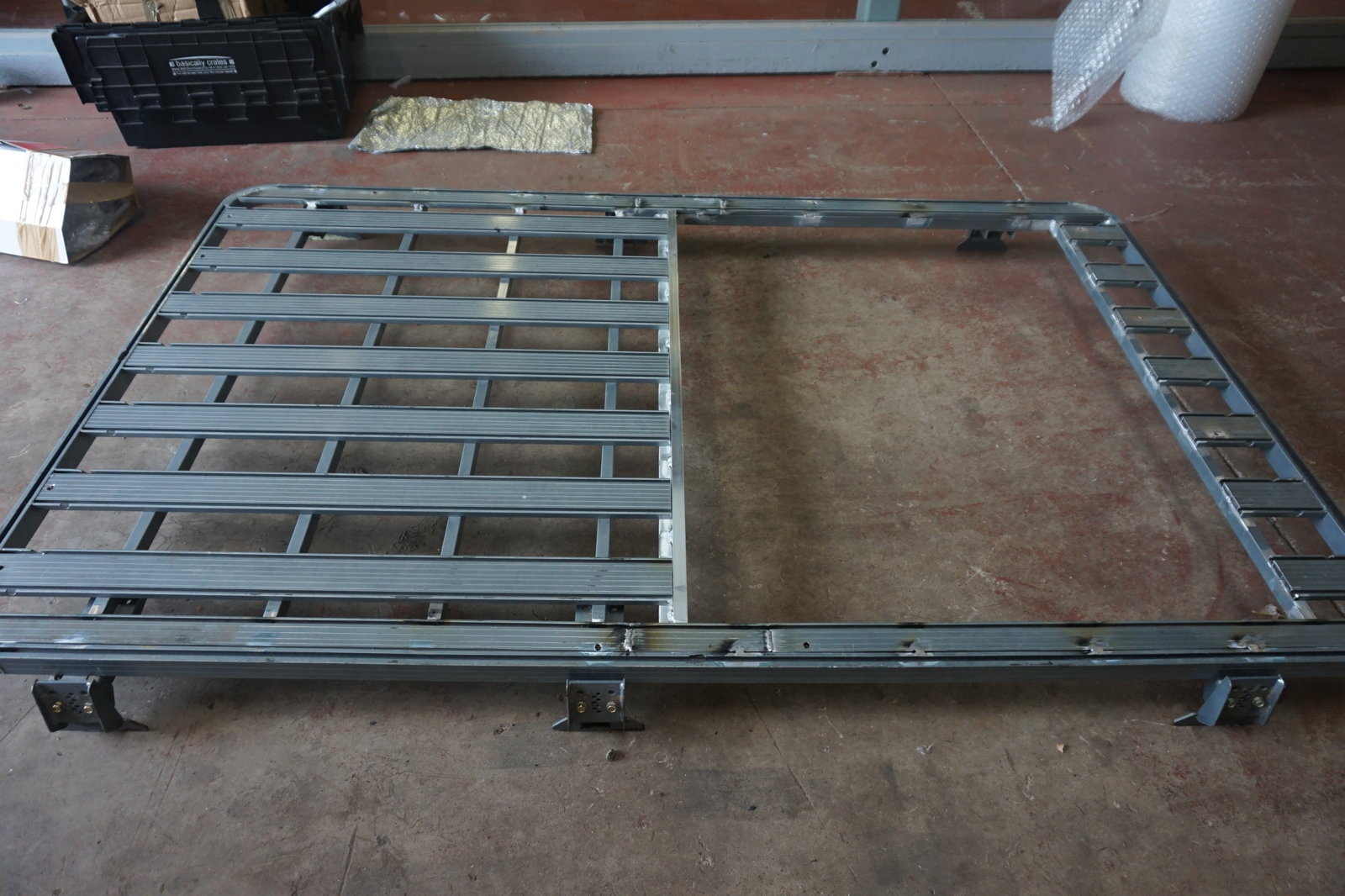

    My modified Outback rack ready for the roof tent mod.


    Richard Turner likes this.
  2. Olazz

    Olazz Well-Known Member Supporter I am in zimbabwe

    1,280
    296
    83
    Map
    I'm interested to see what your idea is Mike and how its going to turn out. It would appear that you're going to compromise the interior tent accommodation... unless you have some clever engineering solution. C'mon , spill the beans chap!

  3. Michael Clark

    Michael Clark Active Member Supporter I am in uk

    86
    55
    18
    Map
    At the moment design is a couple of hinged/sprung boards that cover the apperture when sleeping - they will lift up to allow access downstairs when using the full length bed. But I have lots of other ideas which may work or not. Will see when its all in place. Just like most pop tops have boards that slide into place for the bed, just this one is a little shorter! This design will work, but Im still working on a design which wont involve disturbing each other if we need to get up in the night. TBH at the moment the design is no worse (and probably easier) than clambering over someone to access the conventional ladder system.

    Of course there is a twofold advantage (in my eyes anyway) for this system. One is access to tent from within van and removing need for an external ladder. Other is when tent is up you have standing room and even when it is down you have extra head height for a bench seat (just big enough for both of us to sit and eat inside if necessary)

  4. Michael Clark

    Michael Clark Active Member Supporter I am in uk

    86
    55
    18
    Map

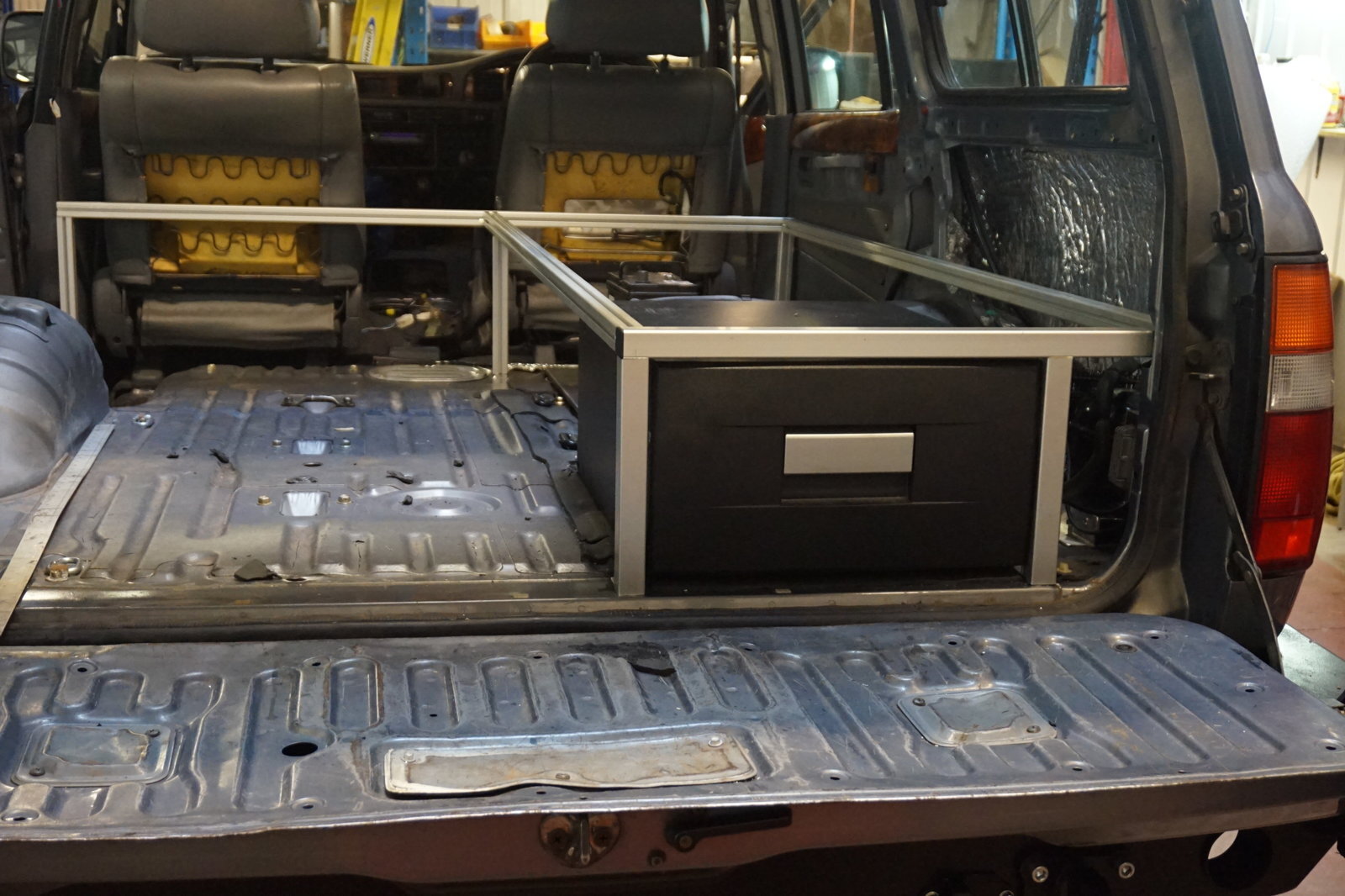

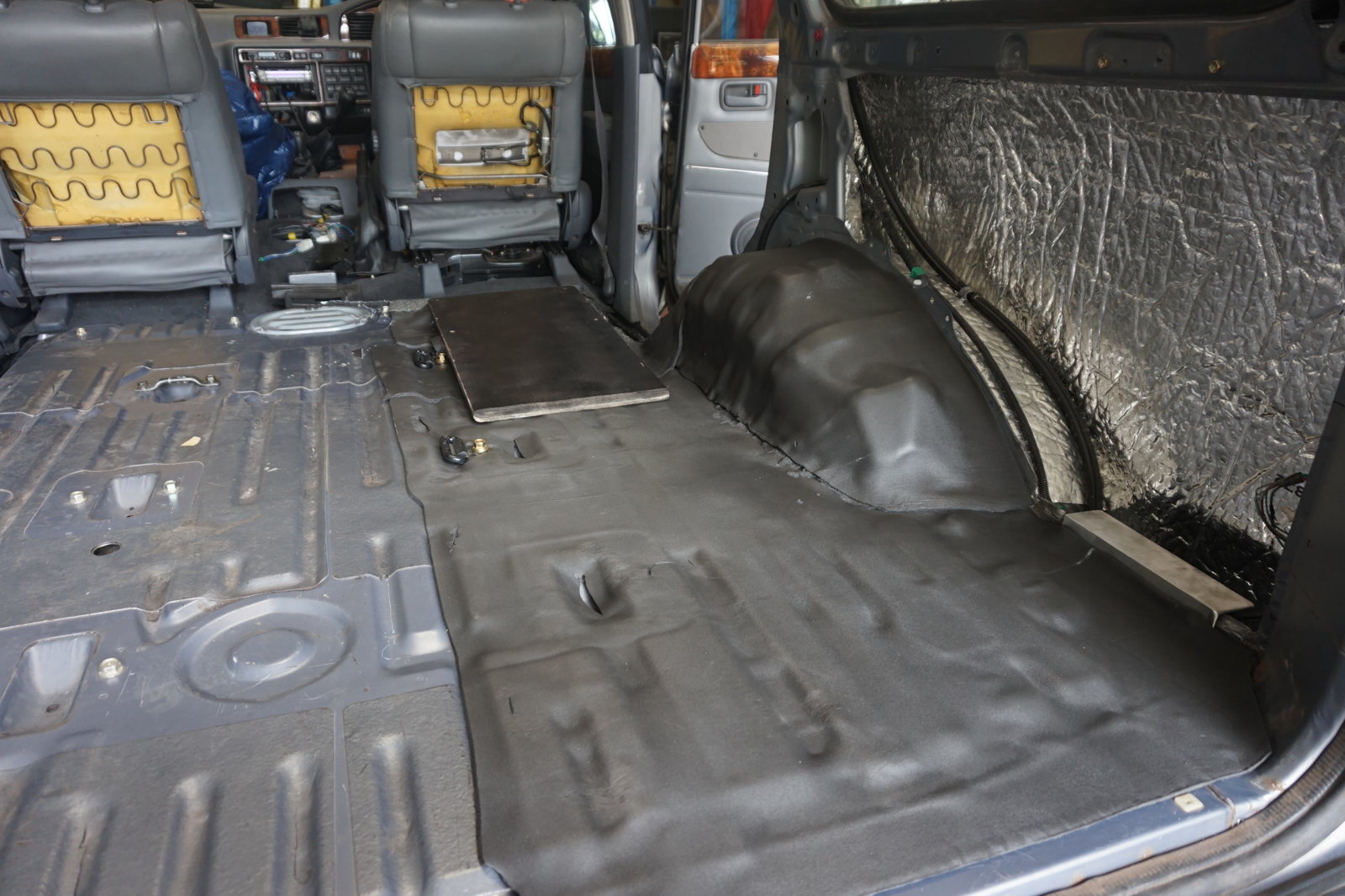

    Managed to find time to make some more progress. Sub tank installed but not plumbed in. May leave that to Julian at OC.

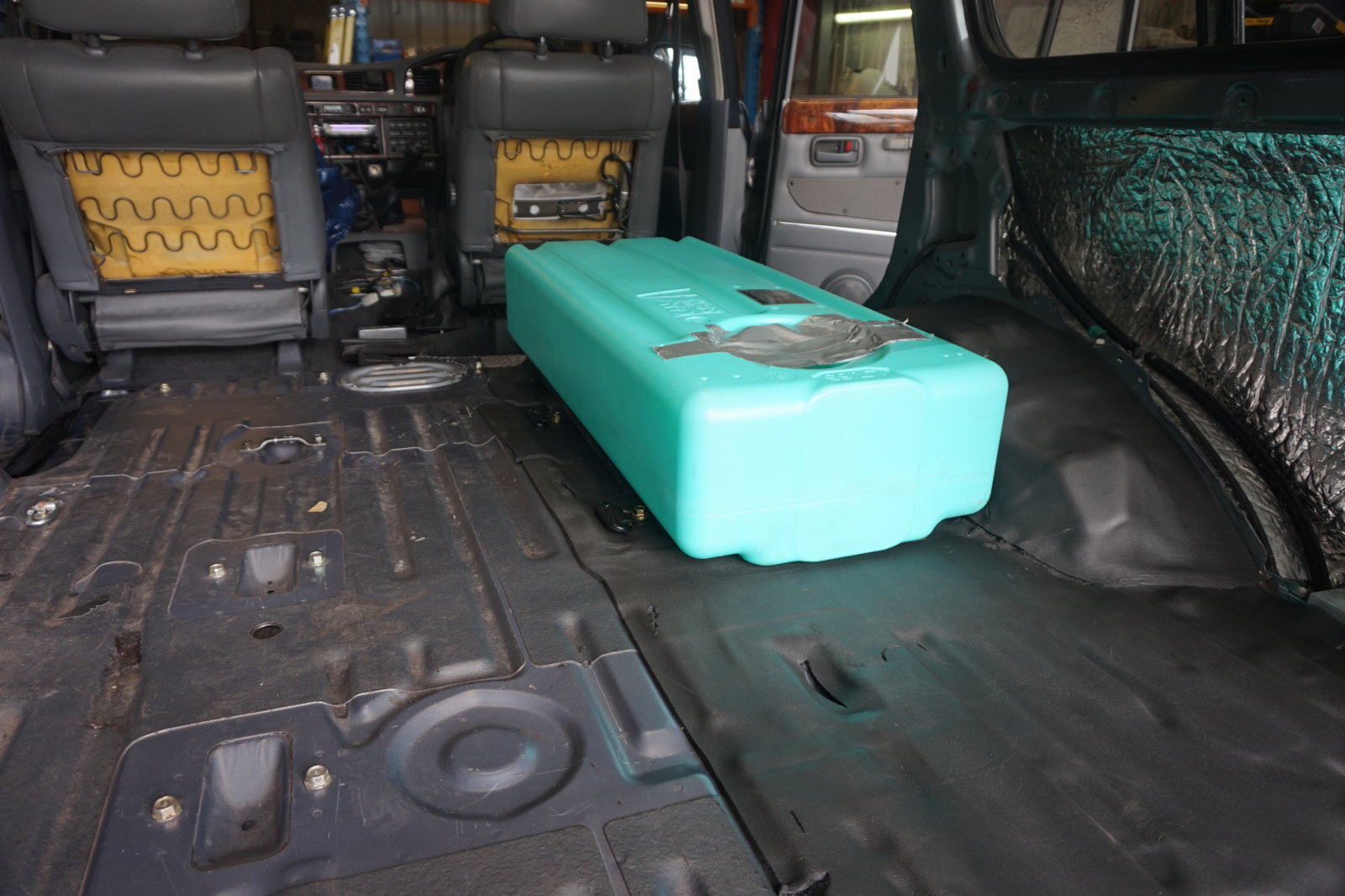

    Interior is taking shape. Finally found a suitable 65l water tank that will sit on the right hand side (rather than behind front seats as originally intended). Also got a 15L calorifier which will sit behind drivers seat. 80L total plus will probably take a 20L container for good drinking water (may install a filter so main tank can be used to drink from, not sure yet)

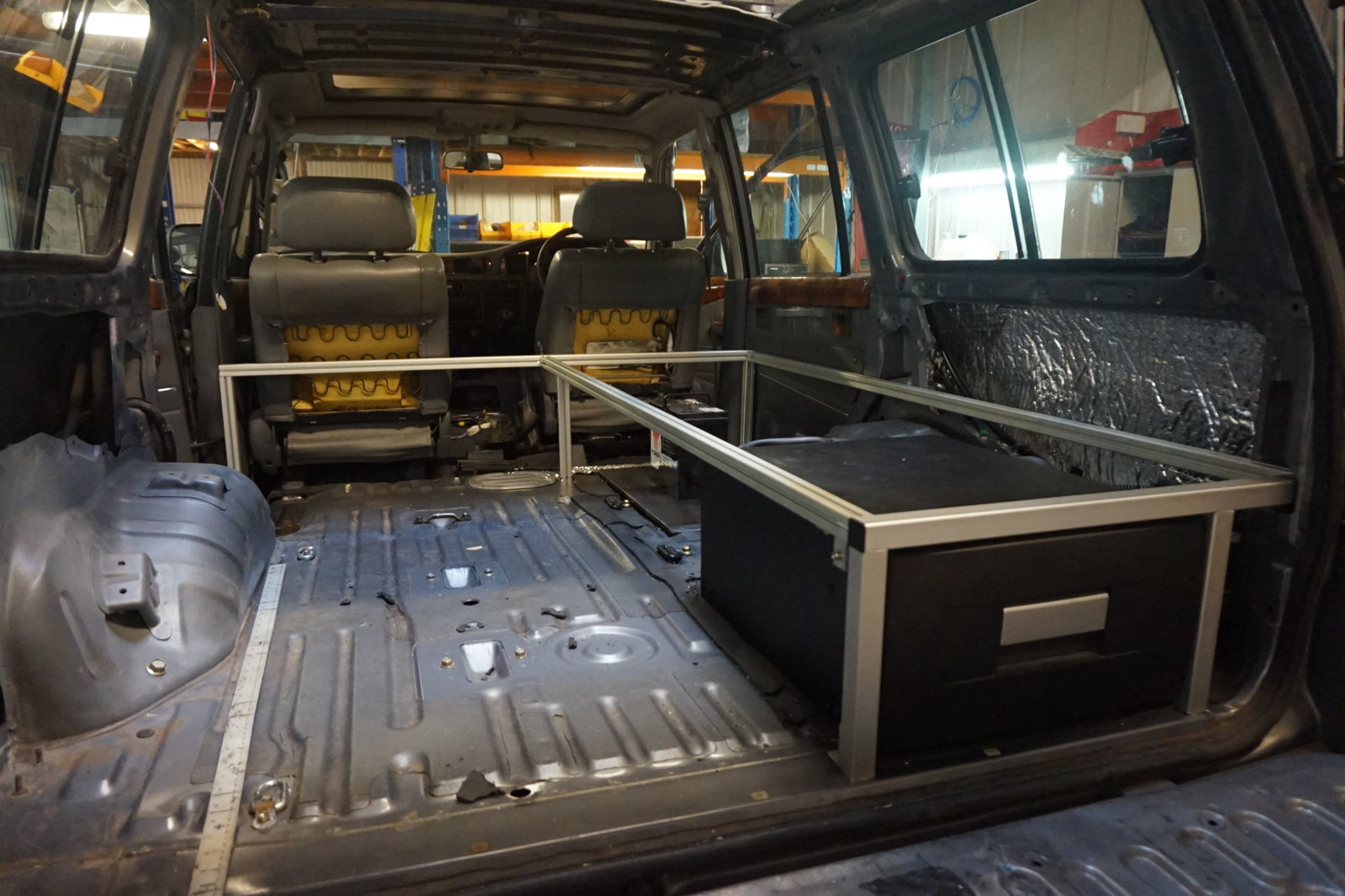

    Building the framework with Valuframe - what amazing stuff. Reasonably priced and so adaptable and strong.

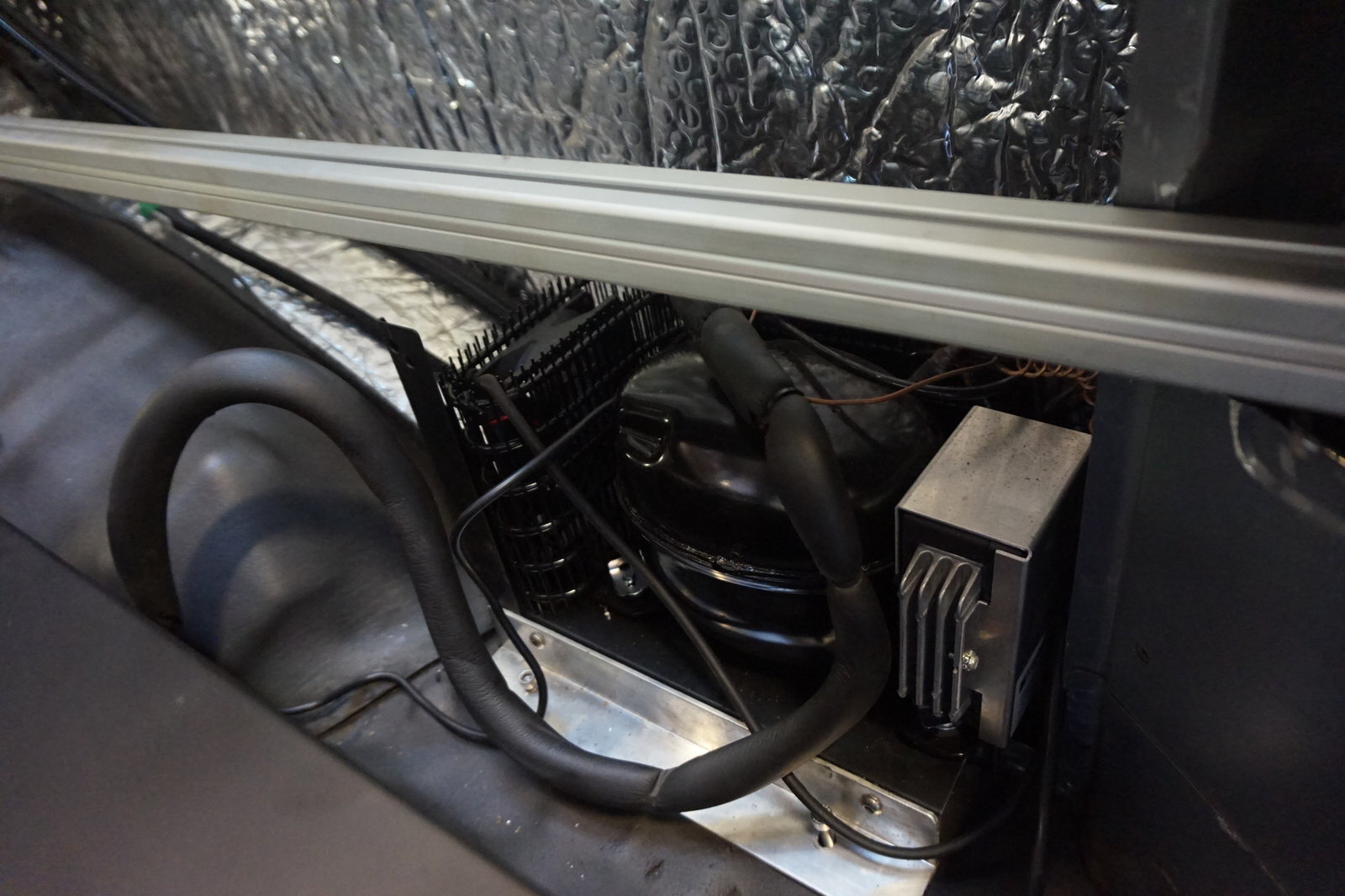

    Fridge installed. Hopefully get the water tank and calorifier physically installed over the weekend.

    Calorifier I was just going to use the pipes to the heater under the drivers seat (as that will now be redundant). Is this an OK idea?

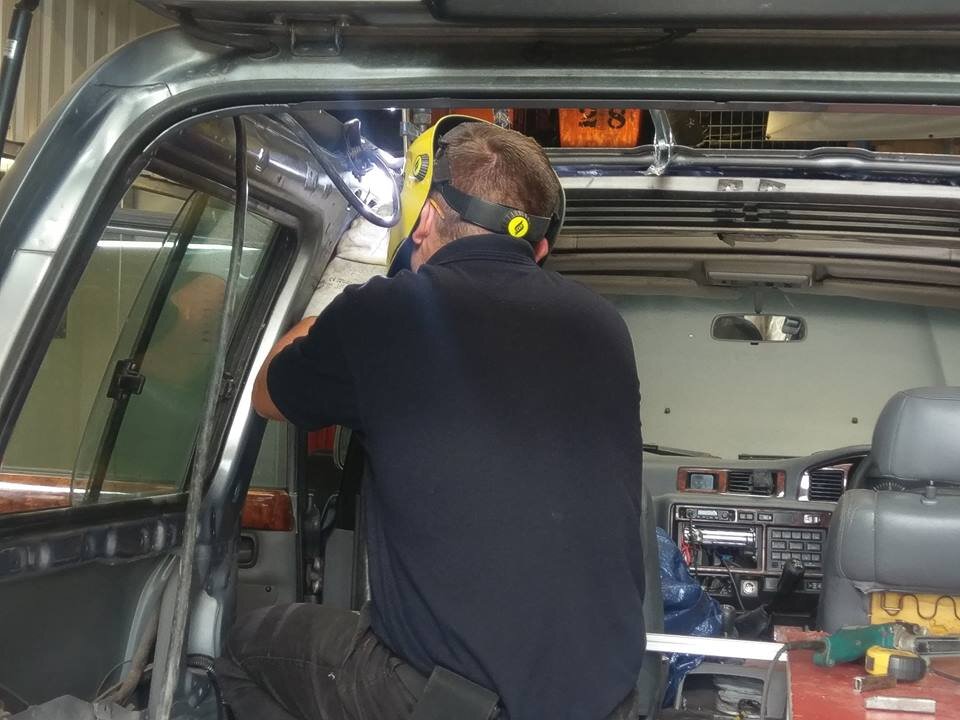

    Hole in roof is still work in progress!

    DSC00981.JPG DSC00983.JPG DSC00984.JPG DSC00985.JPG DSC00986.JPG

  5. fbnss

    fbnss Well-Known Member Supporter I am in england

    2,013
    1,223
    113
    Map
    Dont forget to leave access to the inspection hatch for the fuel tank, ive been out n about twice now where people have had to clean out the filter in there.

    ByronJ, clivehorridge and chapel gate like this.
  6. Michael Clark

    Michael Clark Active Member Supporter I am in uk

    86
    55
    18
    Map
    Of course!

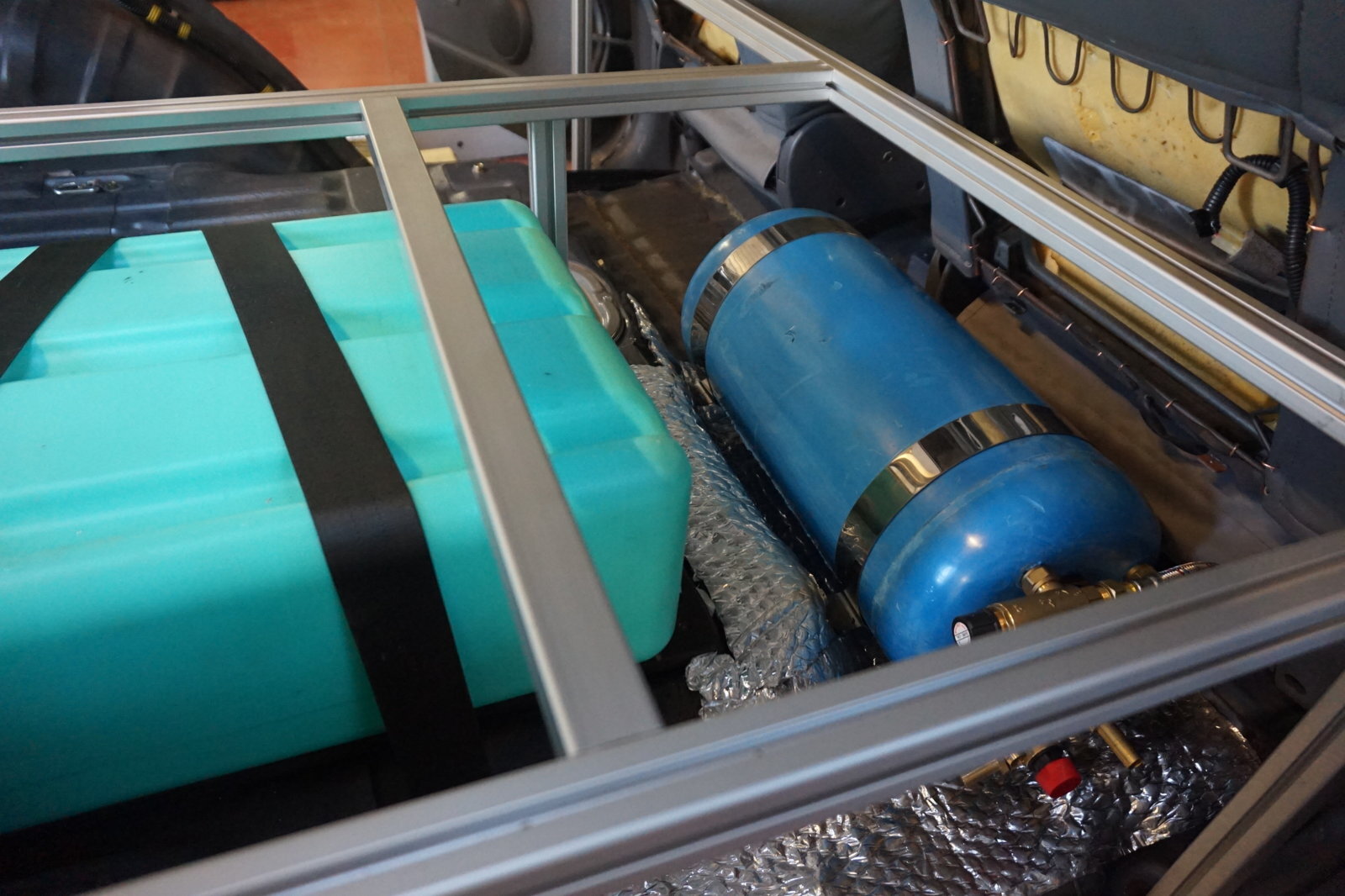

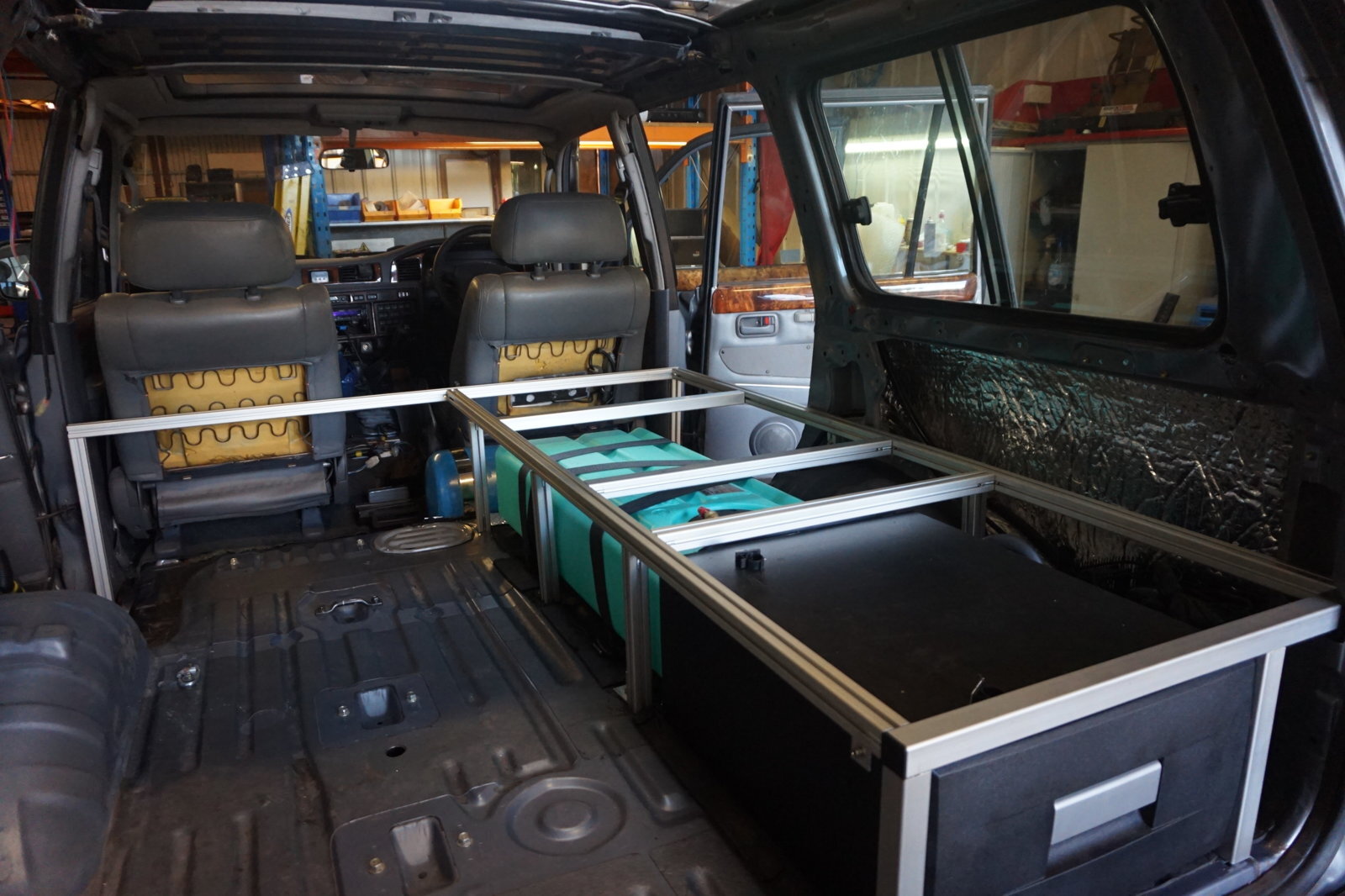

    More progress today. Fridge, water tank and calorifier all physically installed along with the framework

    DSC00988.JPG DSC00989.JPG

  7. rob rule

    rob rule Member

    131
    86
    28
    Map
    Looking Good. (does that water tank have some sort of internal baffles?)

  8. Michael Clark

    Michael Clark Active Member Supporter I am in uk

    86
    55
    18
    Map
    No baffles. I have thought about this, but Ive built a couple of campers before this with larger tanks and no baffles and not really had any issues. I cant imagine its any worse than the large underslung diesel tank which doesnt have any major baffles. Will just see how it goes.

  9. cmcmill01

    cmcmill01 Well-Known Member Supporter I am in uk

    344
    77
    48
    Map
    Whats the Valuframe like to work with? Looking to redo my drawer system and this and the 25mm tubing look like 2 easy options?

    hopeless wanderer likes this.
  10. Michael Clark

    Michael Clark Active Member Supporter I am in uk

    86
    55
    18
    Map
    Its brilliant. So easy to work with, so adaptable (if you change your mind on the design). Just need to get your head around all the different options, hinges, connectors etc.

    cmcmill01 and clivehorridge like this.
  11. Michael Clark

    Michael Clark Active Member Supporter I am in uk

    86
    55
    18
    Map

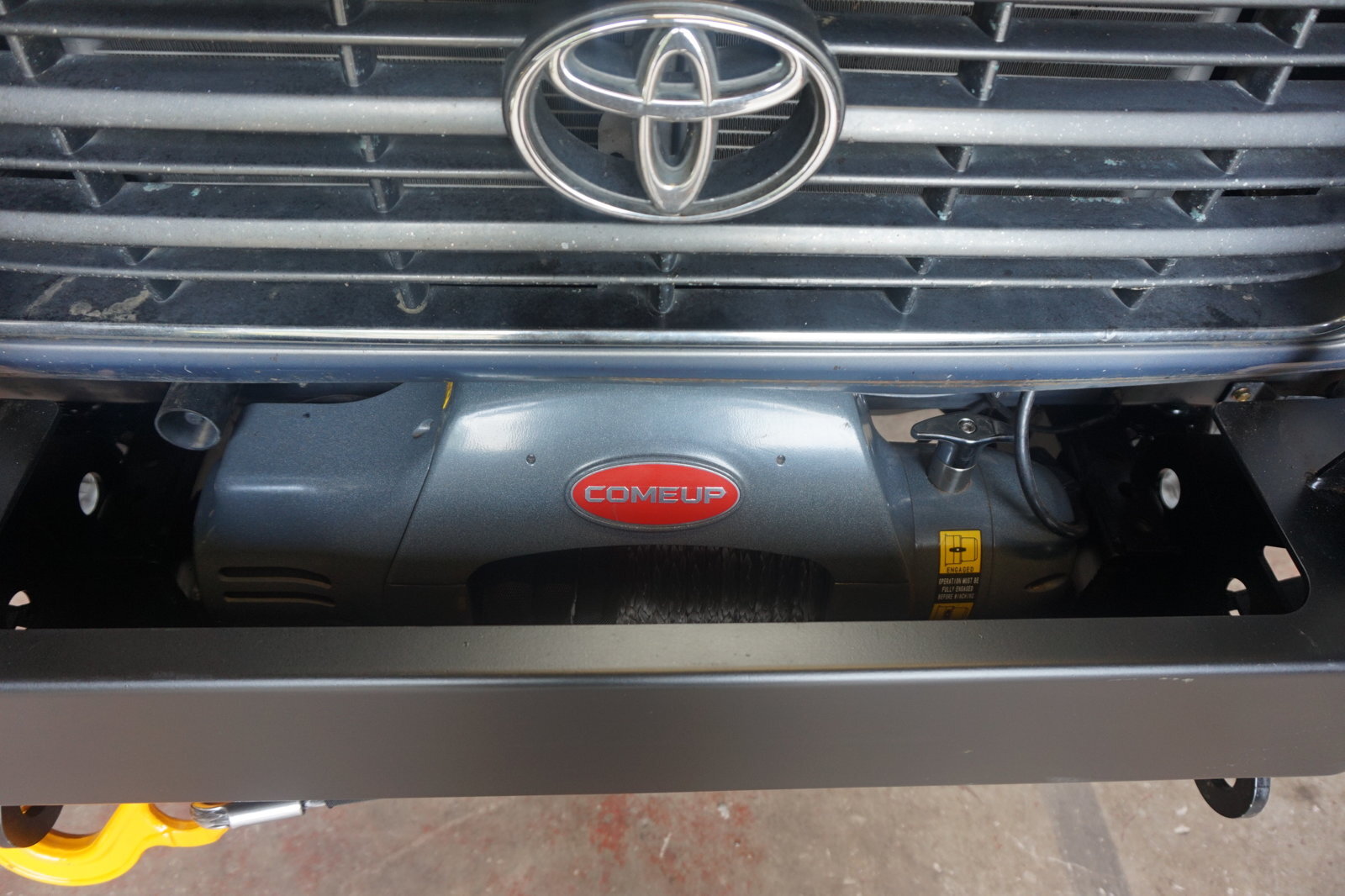

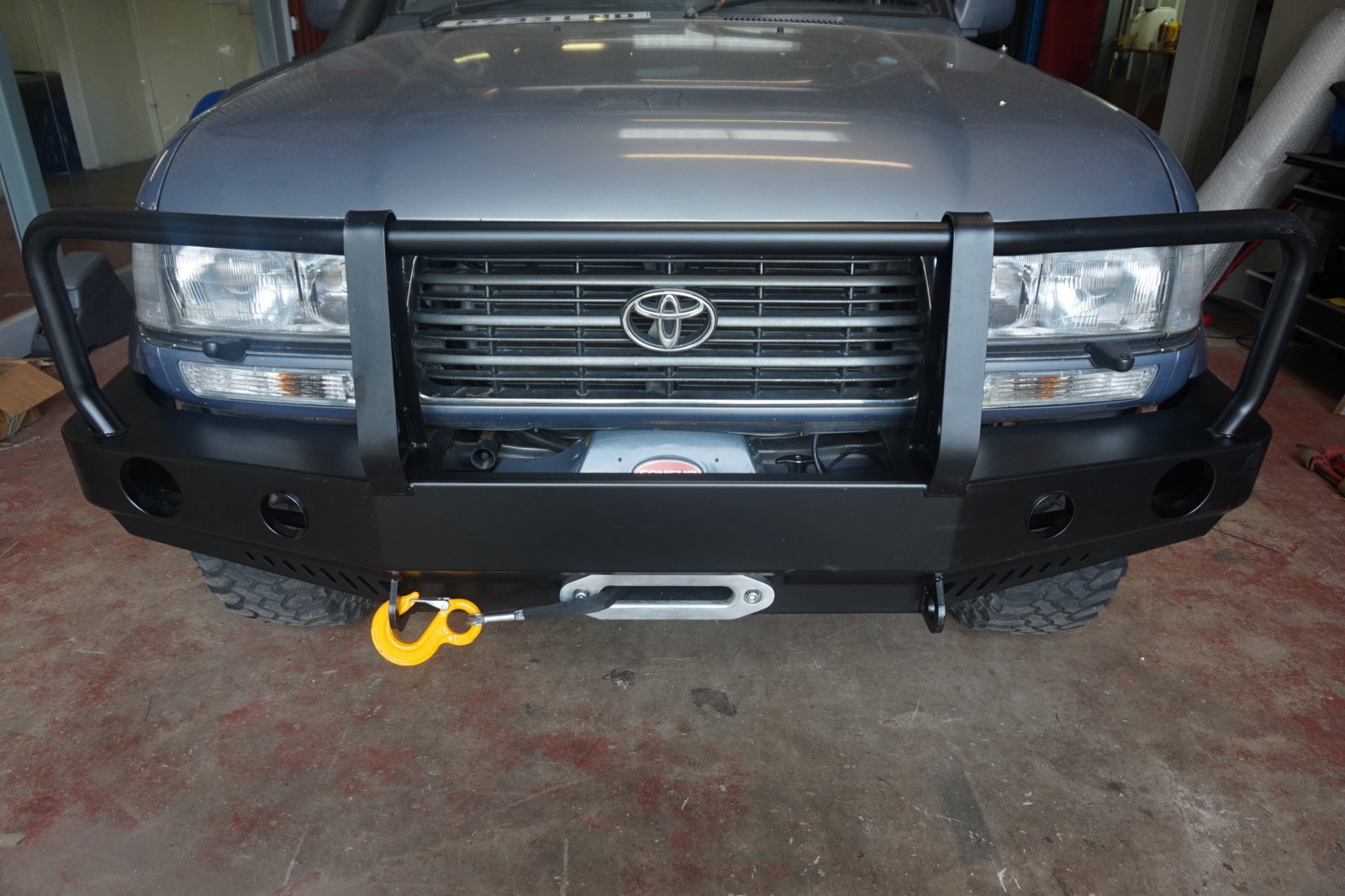

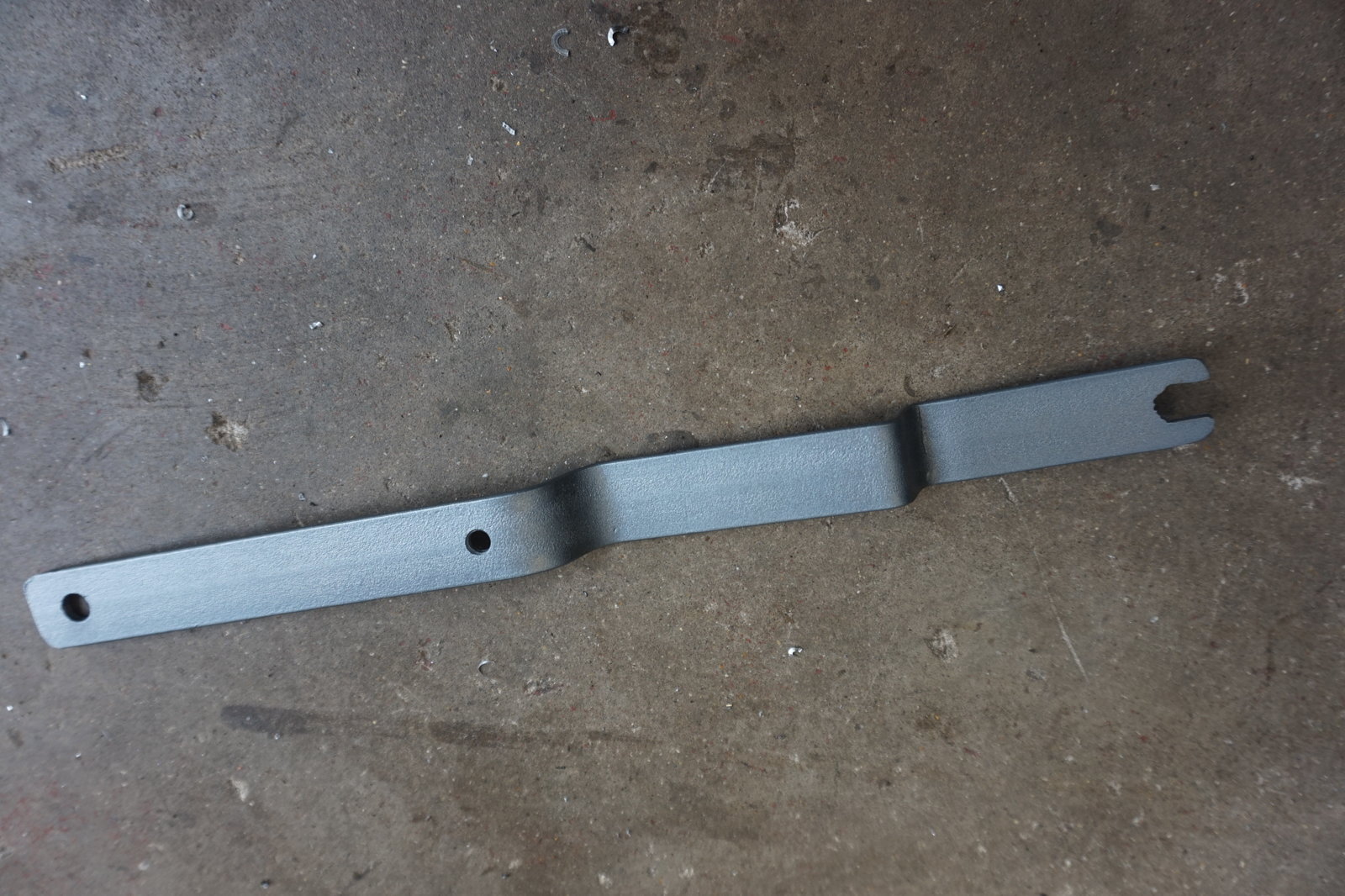

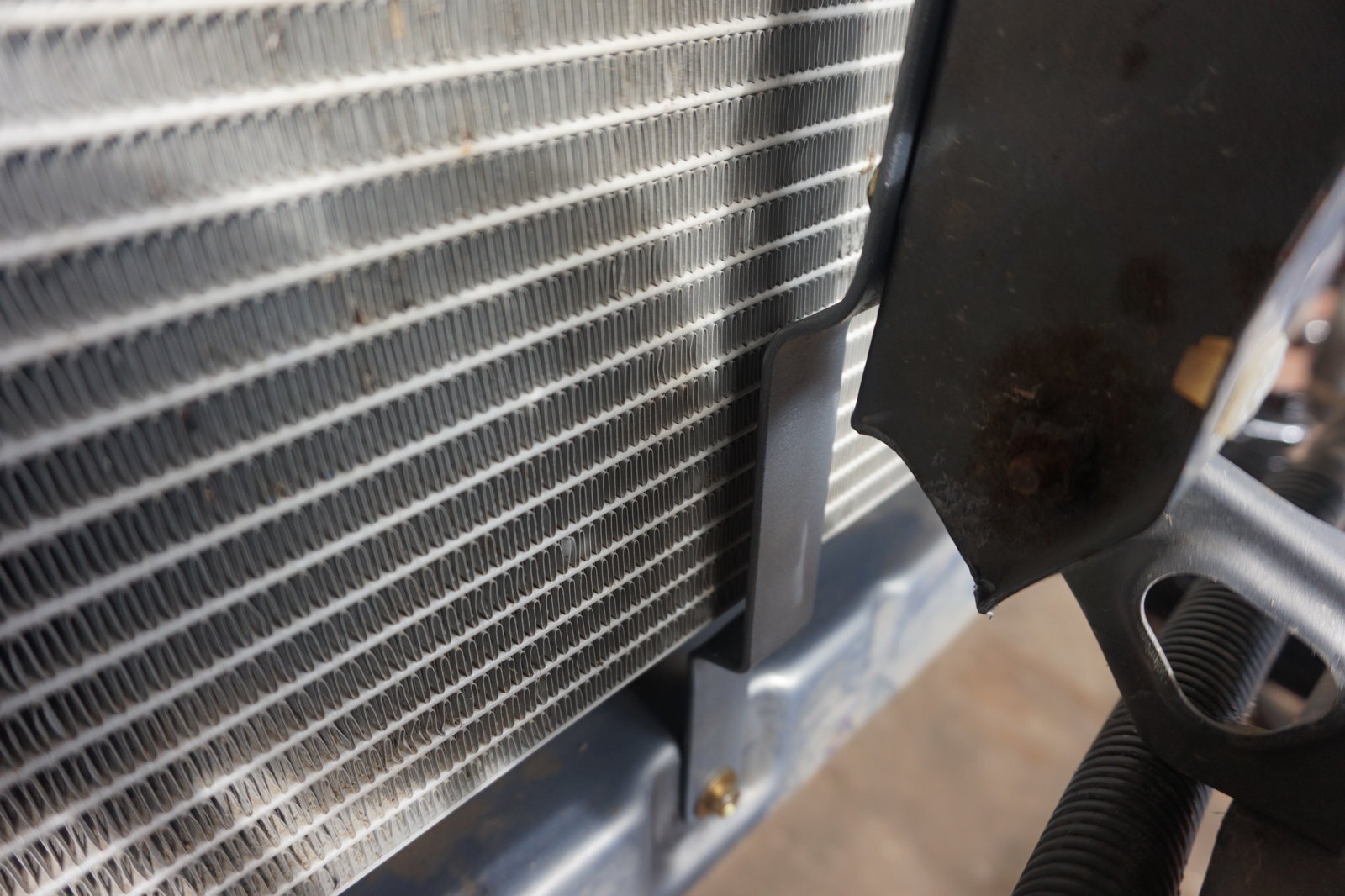

    Winch and winch bumper installed. Just fitted with a bit of fabrication to the slam panel bar!

    DSC01006.JPG DSC01007.JPG DSC00996.JPG DSC00999.JPG

  12. rob rule

    rob rule Member

    131
    86
    28
    Map
    that will give you some Taxi negotiation advantage....

  13. Michael Clark

    Michael Clark Active Member Supporter I am in uk

    86
    55
    18
    Map
    haha, of course. And good for herding cattle!

    clivehorridge likes this.
  14. Michael Clark

    Michael Clark Active Member Supporter I am in uk

    86
    55
    18
    Map

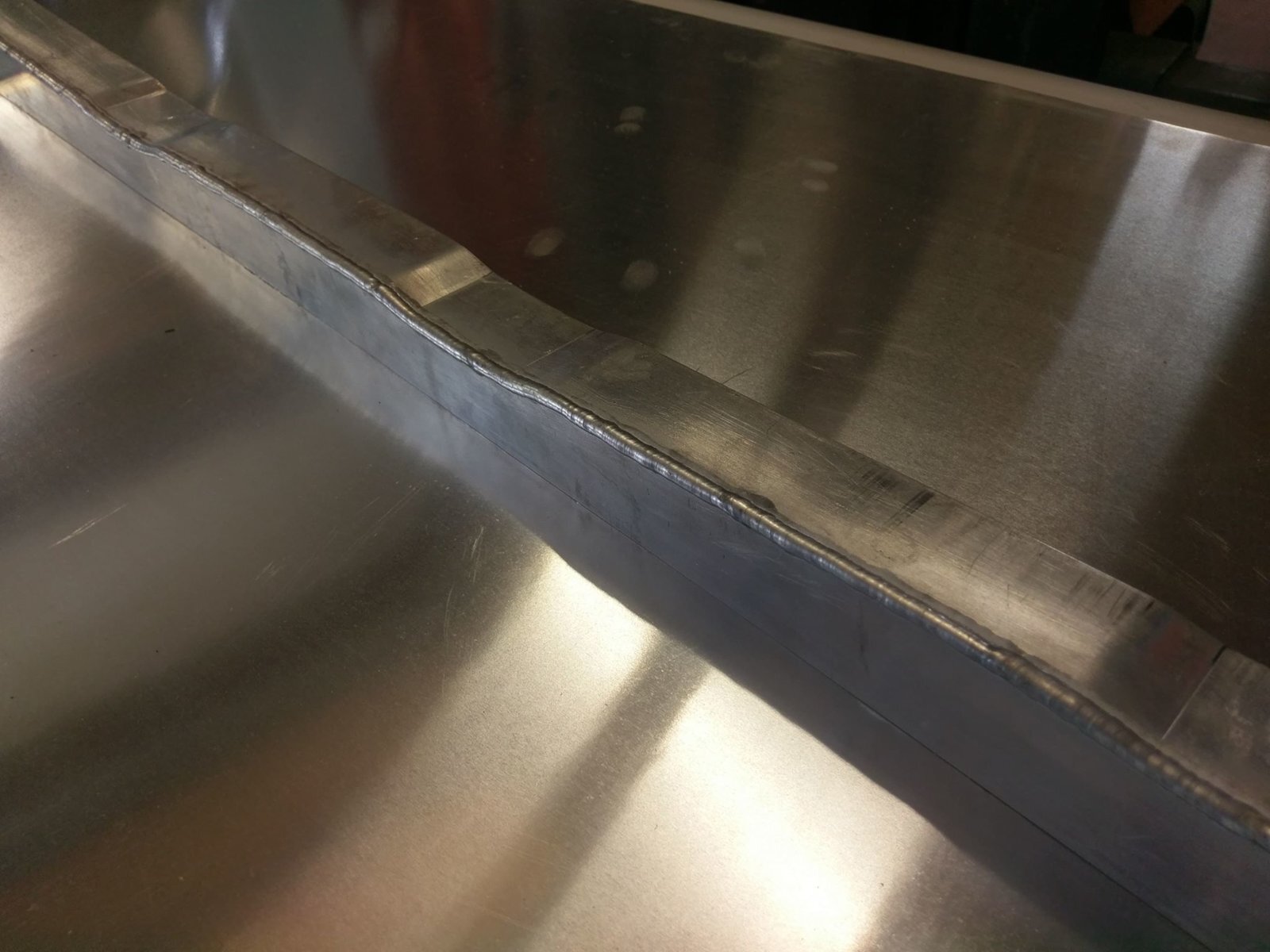

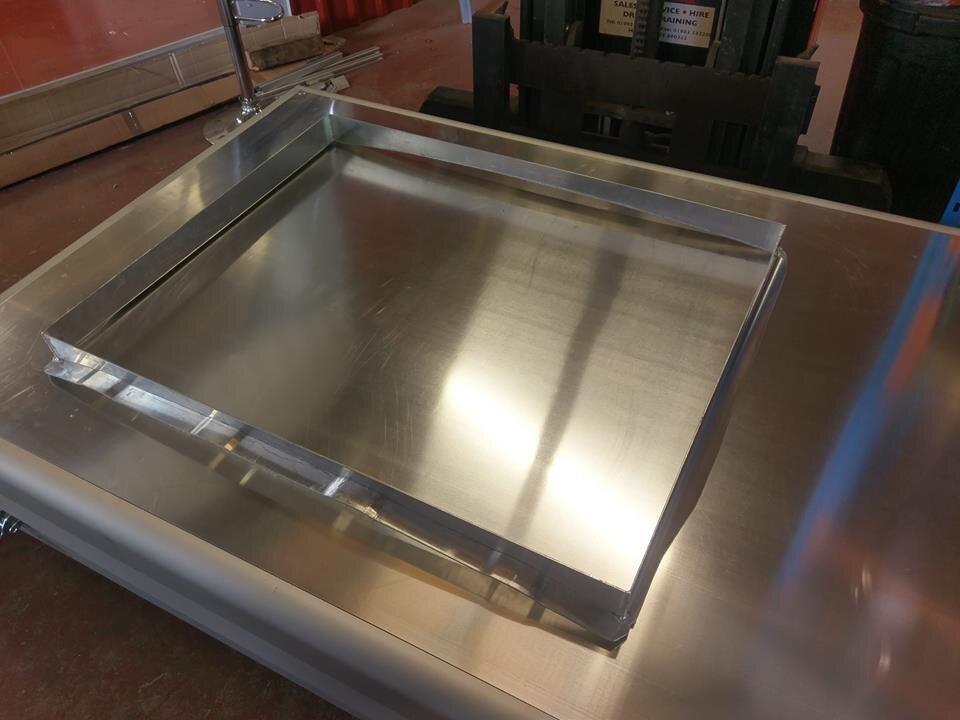

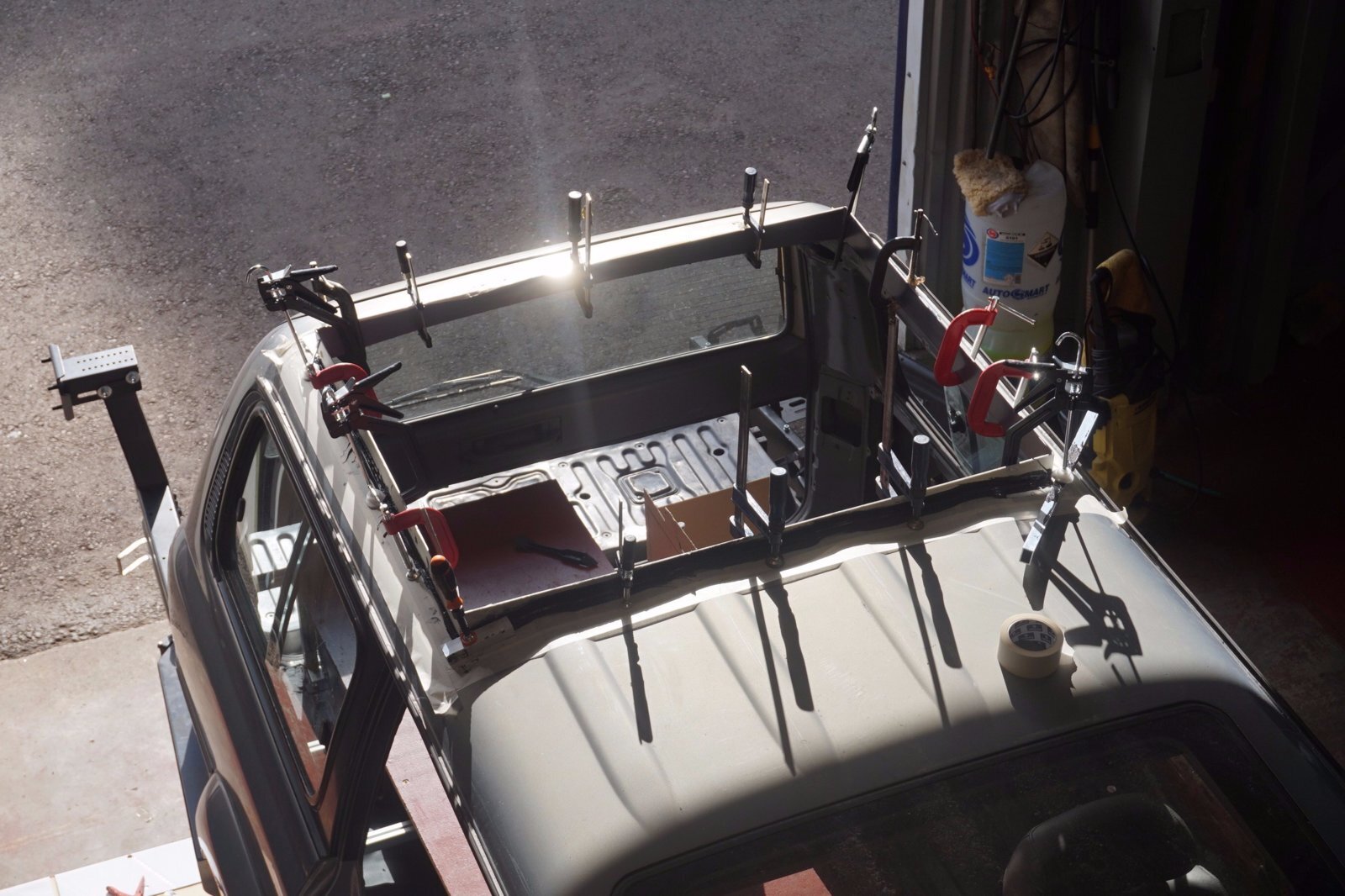

    Frame for the roof apperture is finished. A little more complex than one would have hoped. Lots of angles to contend with but now is a perfect fit.

    Also relocated one of the roof support beams to give added strength to the roof.

    39388997_277063533120672_2918057354211622912_n.jpg 39253563_2130304850518795_8286370508291702784_n.jpg 39398707_301780183916896_7514980492005867520_n.jpg

    grantw likes this.
  15. Michael Clark

    Michael Clark Active Member Supporter I am in uk

    86
    55
    18
    Map
    And its in.


    clivehorridge likes this.
  16. rob rule

    rob rule Member

    131
    86
    28
    Map
    going to install an internal roll bar system?

  17. Michael Clark

    Michael Clark Active Member Supporter I am in uk

    86
    55
    18
    Map
    No plans. Roof has been reinforced

  18. rob rule

    rob rule Member

    131
    86
    28
    Map
    you realise that here in sandland it would make a wonderful MMG mount.....to go with the taxi negotiator bulbar...yes Sir now we are talking..:smilingimp:

  19. rob rule

    rob rule Member

    131
    86
    28
    Map
  20. Michael Clark

    Michael Clark Active Member Supporter I am in uk

    86
    55
    18
    Map
    lol, always an option!
