RJ70 Build Thread.

Thanks mate, I'm really pleased with how it came out! :thumbup:

:lol:

Not enough! :eusa-naughty:

Lucky if I get 6-7 hours a night! :doh:

The biggest problem for me is the neighbours! Their bloody every where and as we dont have daylights saving, its light at 4;30am, I'm wide awake, raring to get a few hours work done before I have to go to work and I cant really make any noise until 7am at the earliest! :angry-screaming:

I cant wait till we can buy some land and our nearest neighbour to be a mile or 2 away so I can angle grind/hammer/play loud music/walk round my garden naked etc at anytime of the day or night. Without having to worry about upsetting neighbours! :icon-cool:



Me too! Piranha is a cool place! :icon-biggrin:
The neighbours can't see us but bugger getting around in the bollocky as I do enough damage to myself now without making more targets for stray stones etc flying off machines.The mower picked up a stone today it hit the wall of a shed and then got me in the chops.Hurt like hell.

Just caught up on the updates.
Looking good, can't be long until that V8 roars into life:hearteyecat::tonguewink::auto-biker:

Thanks Andy. :thumbup:

I cant wait! :icon-twisted:

I'd love to have it finished by April/May when we buy our first house. :icon-cool:

Still need to finish the fuel tank/fuel pump, design and build the stainless exhaust, finish modifying and plumbing in the radiator, work out what air filter/induction kit I'm going to use, plumb in the clutch cylinder, design and build a battery tray and then complete the mountain of wiring. :think:

Leaving the wiring till last as thats the bit I'm dreading most. :shifty:

I may end up getting some help if I'm struggling. I met a chap the other day who bought the Lexus gearbox off me who told me about a guy/friend of his who is meant to be moving down this way from Brisbane who owns a company that has done loads of 1UZ conversions, so I may ask him for help. :icon-biggrin:

This is the company.

http://www.venomcobras.com/

Amayama.

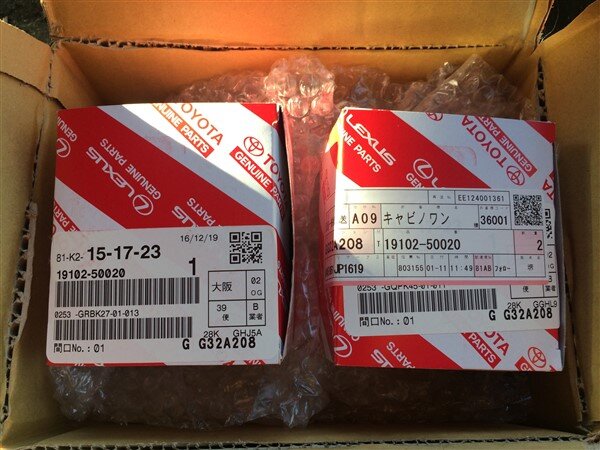

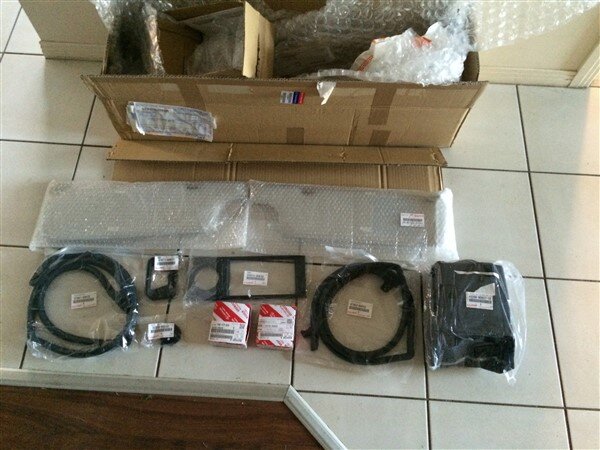

So I got home to find 2 boxes from Amayama in Japan. :violin:


Ignition rotors in one.

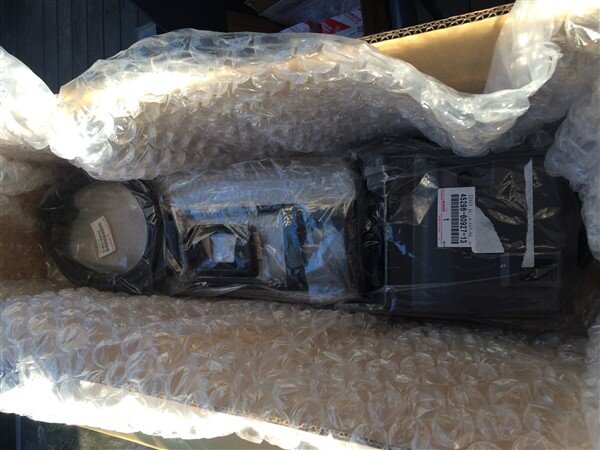

And interior trim in the other.

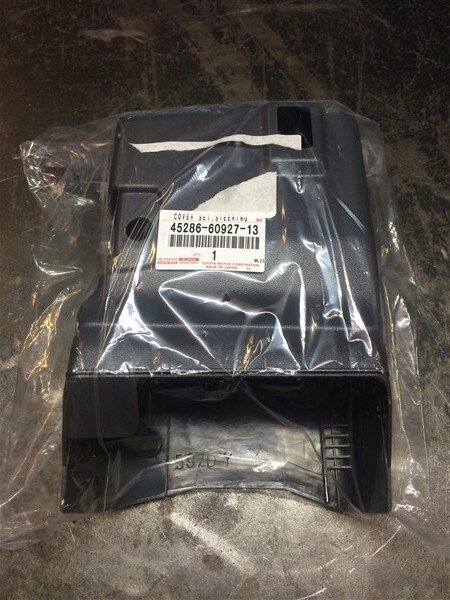

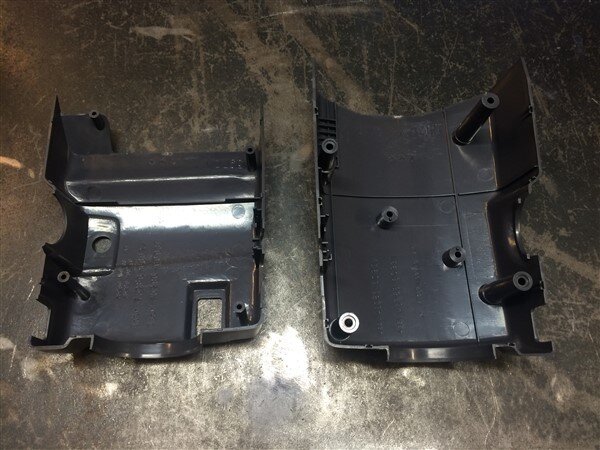

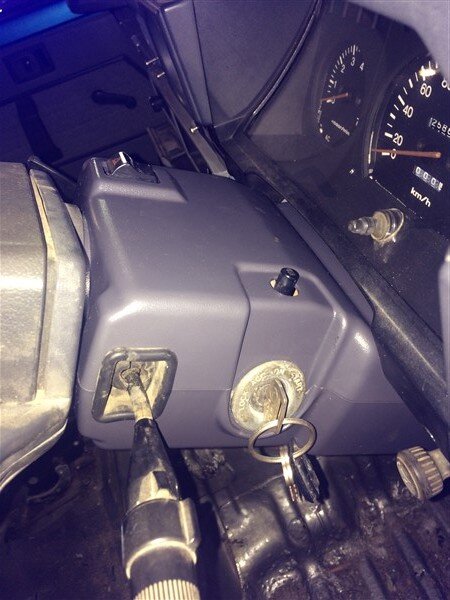

Ignition cowl.

I tried sourcing a second hand one in Australia but sadly most of the early 70's got fitted with that horrid shit brown interior. :puke-front:

They also tend to go very brittle and are often broken.

So a nice new grey one. :dance:



Fitted perfectly!

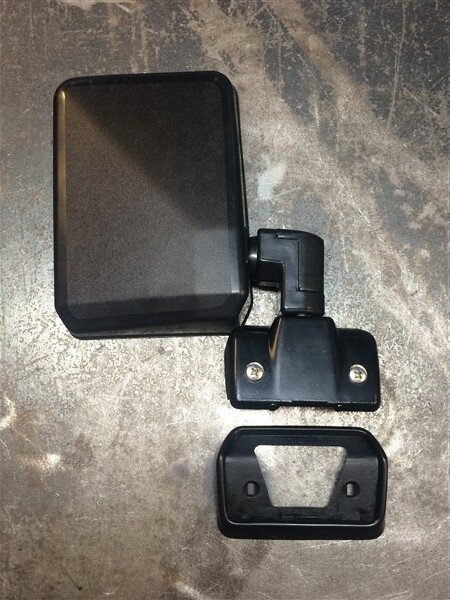

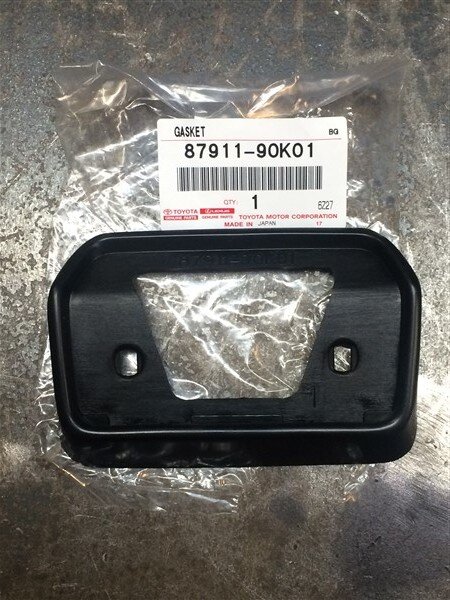

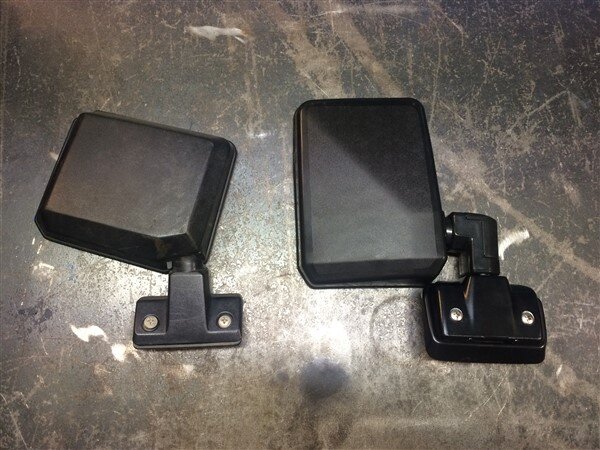

Rubber for the later style (much better looking) mirrors! :icon-cool:



Meaning I could do away with the little ones which I hate and fit my other later one.

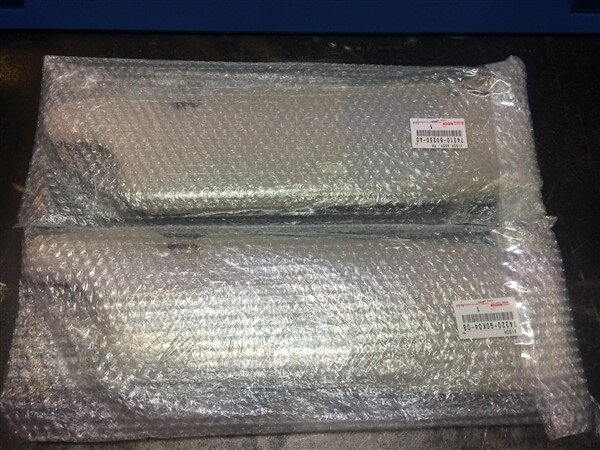

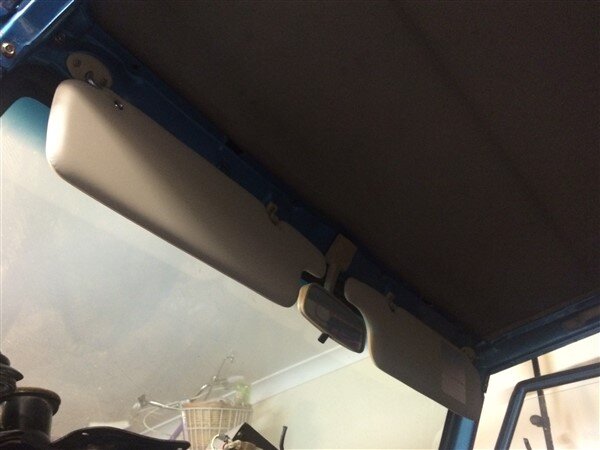

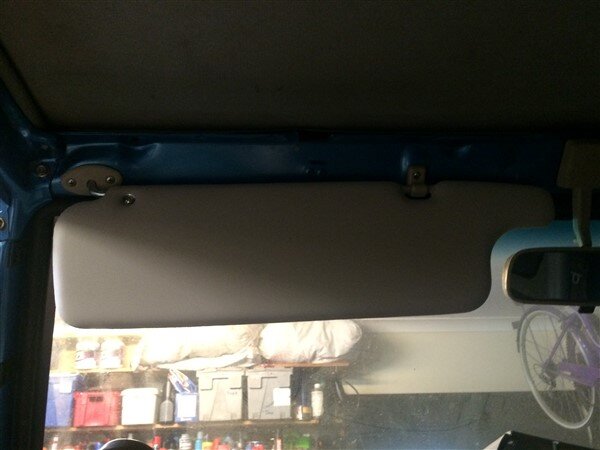

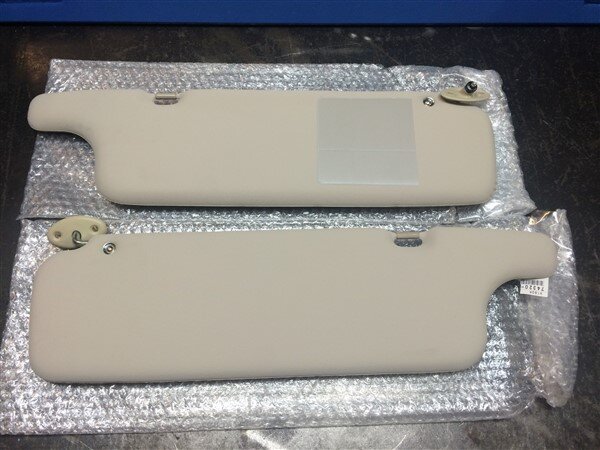

New sun visors next.



I chose ones without a mirror fitted as I dont want to get blinded by the sun driving along with the windscreen folded down.

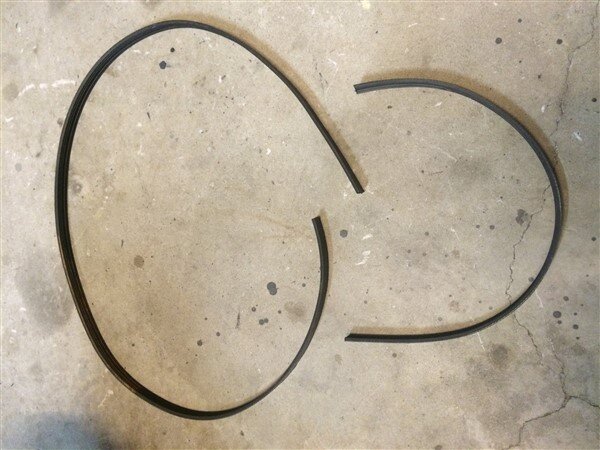

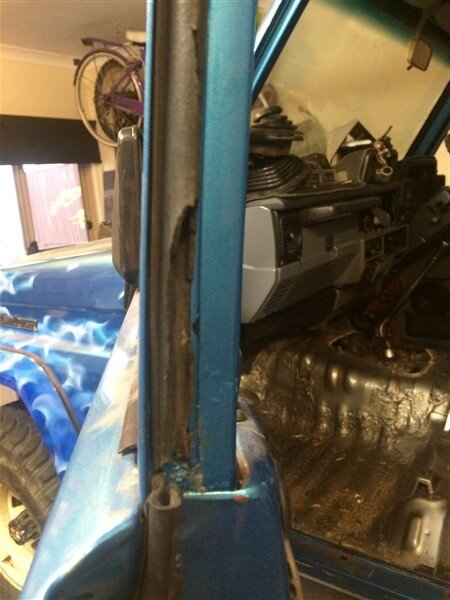

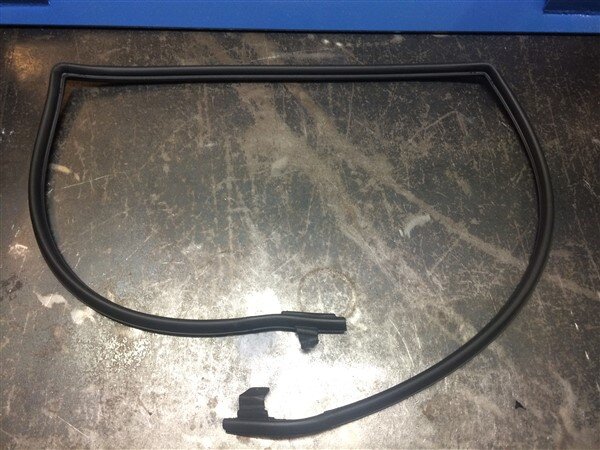

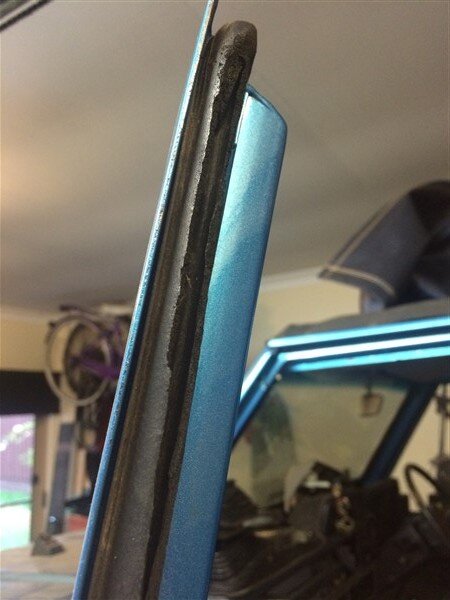

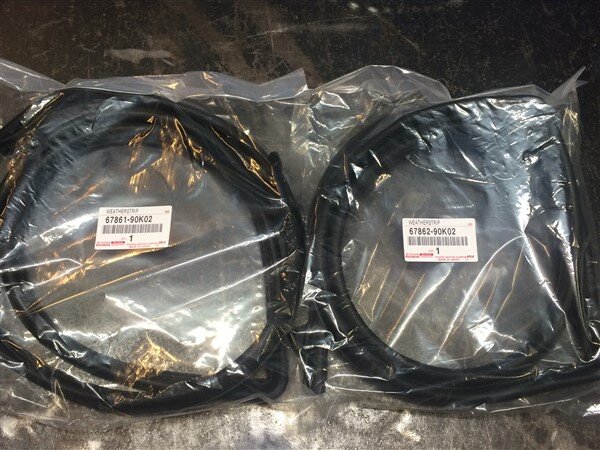

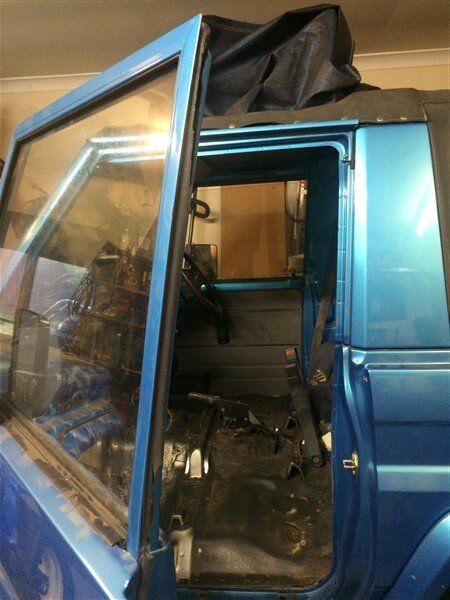

New rubber door seals for the tops of the front doors.

As the tops of the front doors unbolt these seals fit over the lower seals and screw in place. :icon-ugeek:

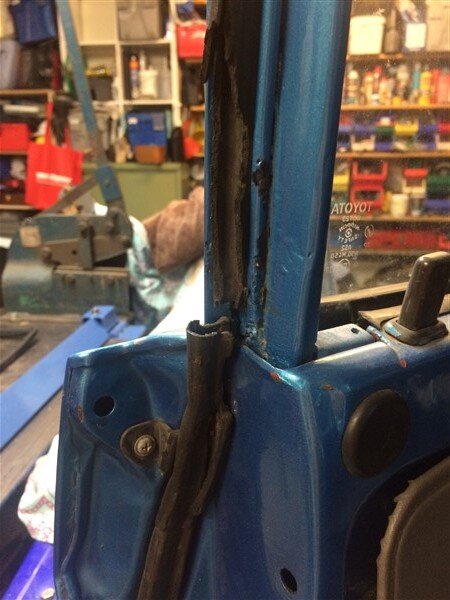

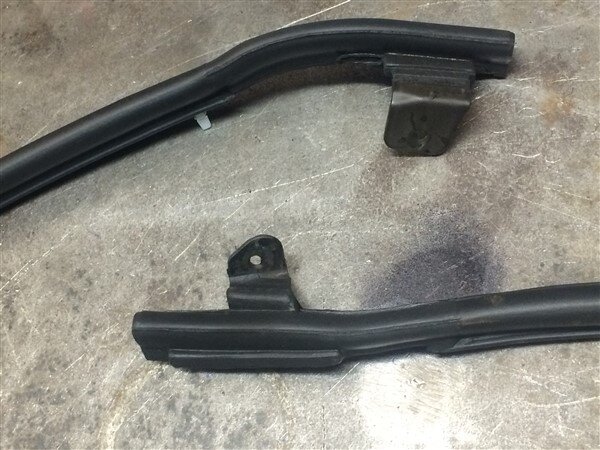

The 30 year old ones were shot!

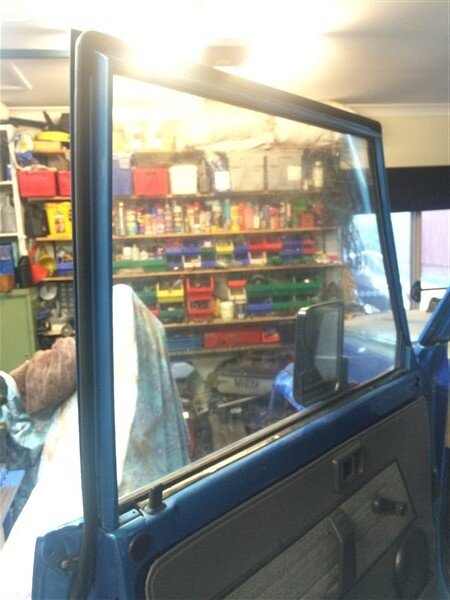

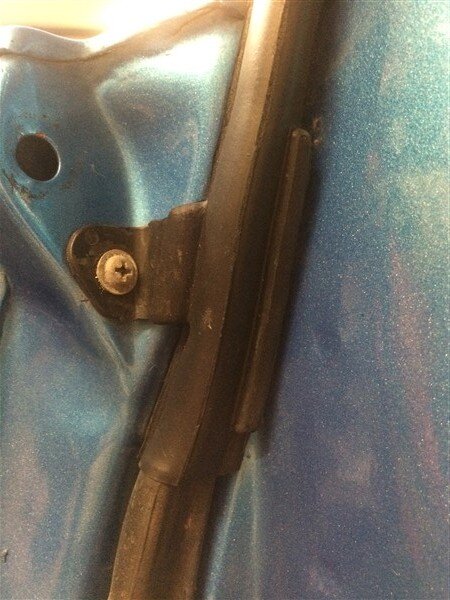

New seal fitted.


And screwed in position.

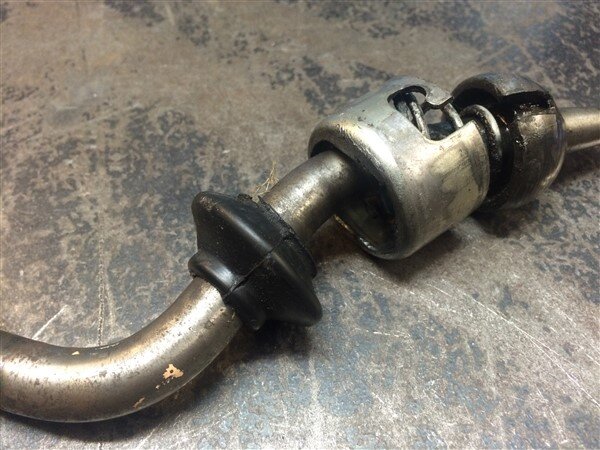

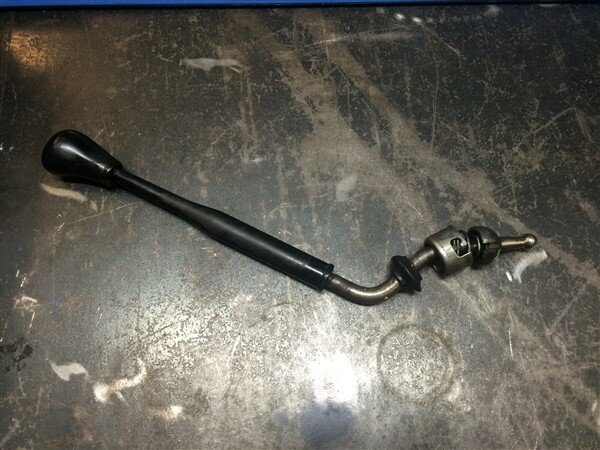

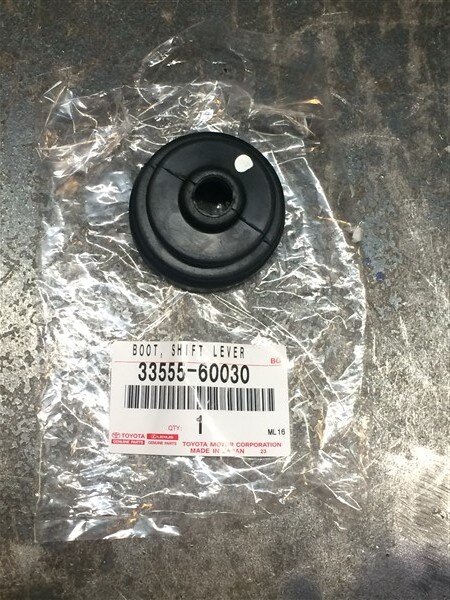

New rubber gear stick boot.


As the old one was completely buggered and would have been letting dirt and water into the box.



Old versus new.


The new rubber pushed straight down the gear stick with a bit of WD40 to help it along.

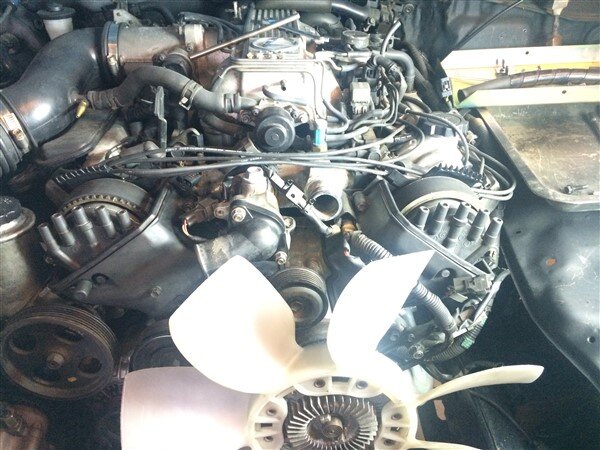

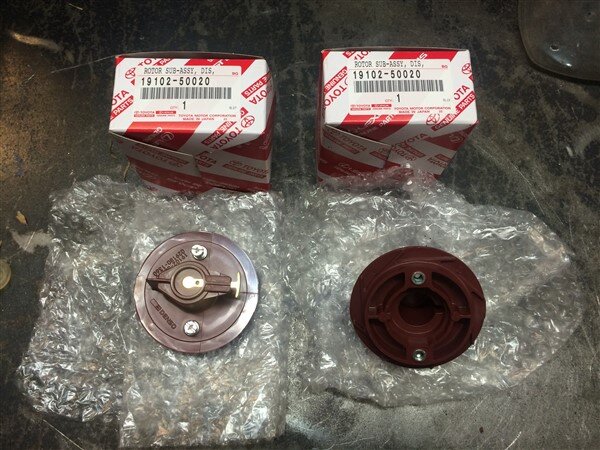

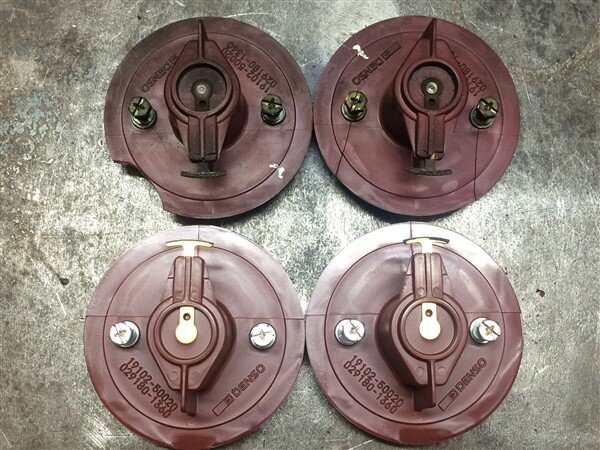

New ignition rotors next.

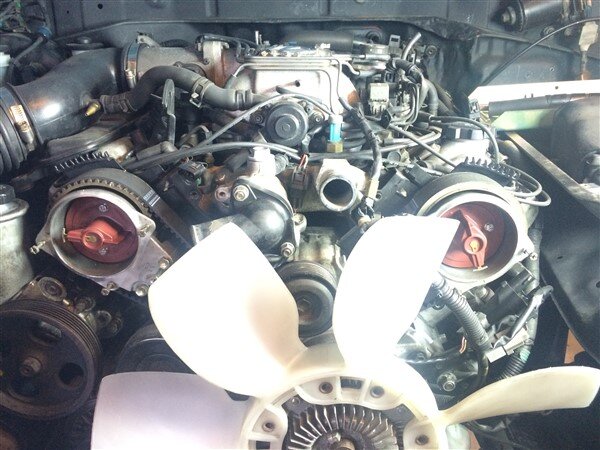

Fitted.


Followed by the distributor caps.


Gearbox Breather.

I meant to add brass fittings to both the gearbox and transfercase before I fitted it to the car but I forgot. :doh:

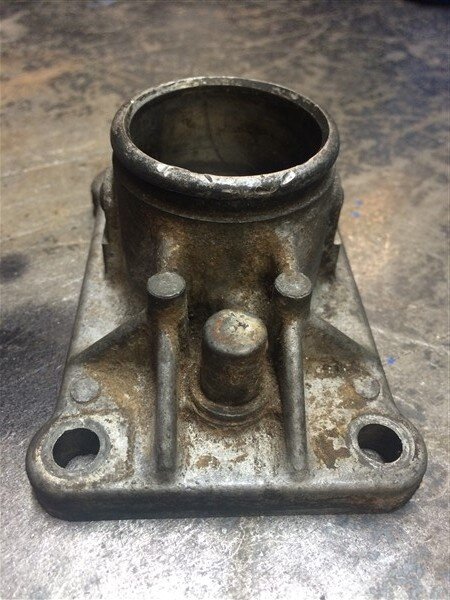

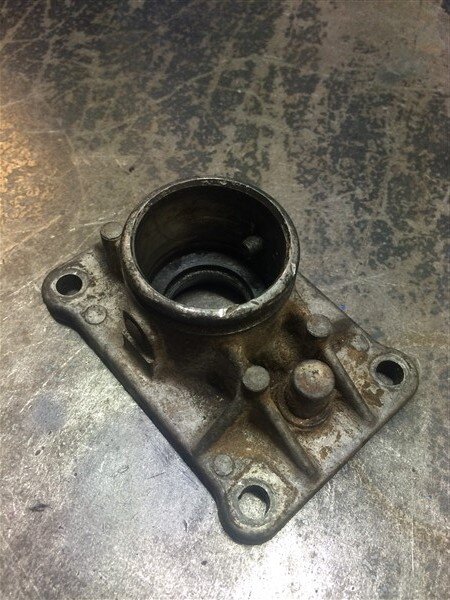

Gearbox one is easy enough to do, as the top plate unbolts.


The standard breather is the little cap on the back, but they arnt very waterproof.

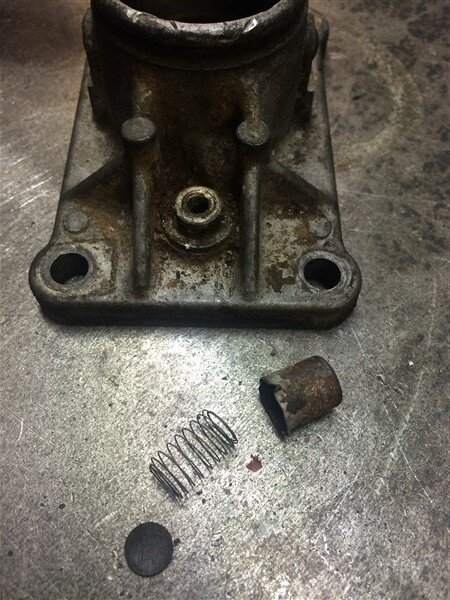

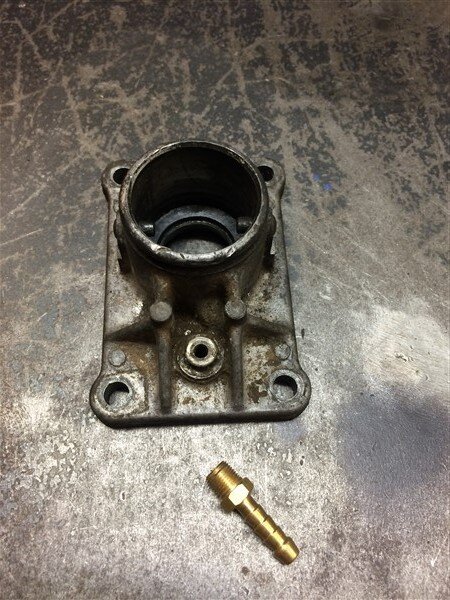

Levered the old one off.

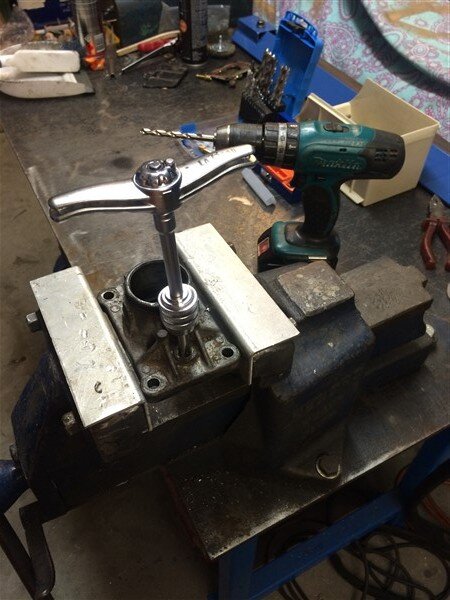

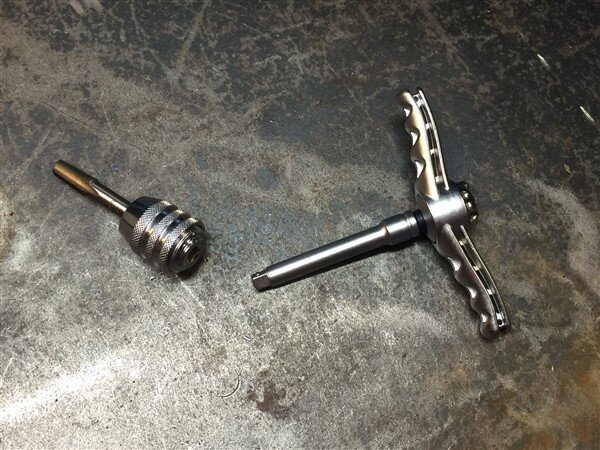

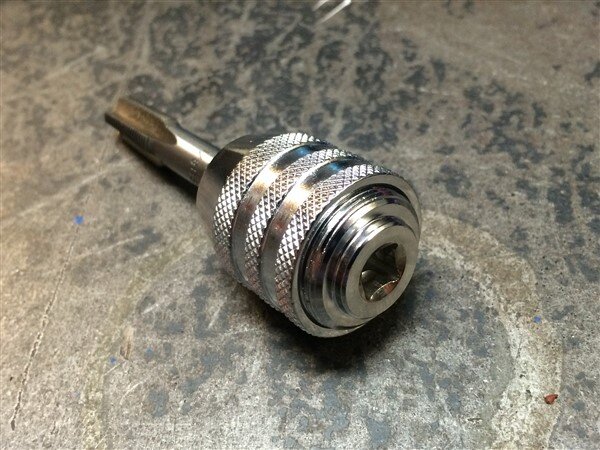

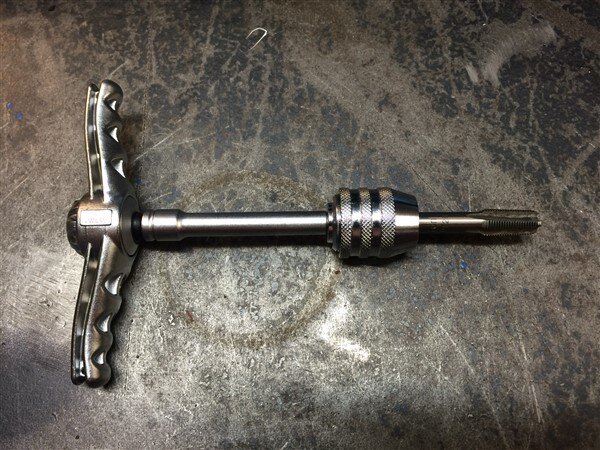

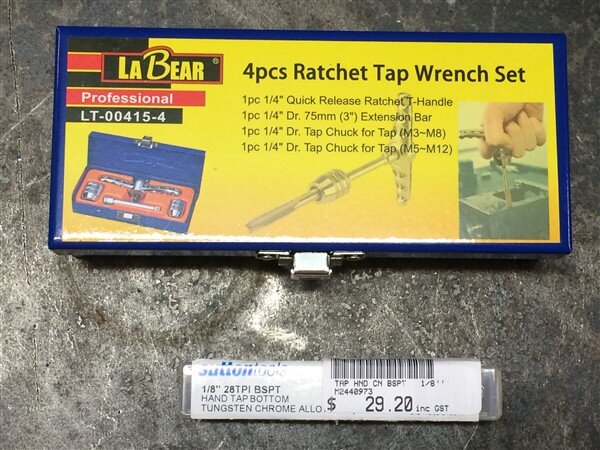

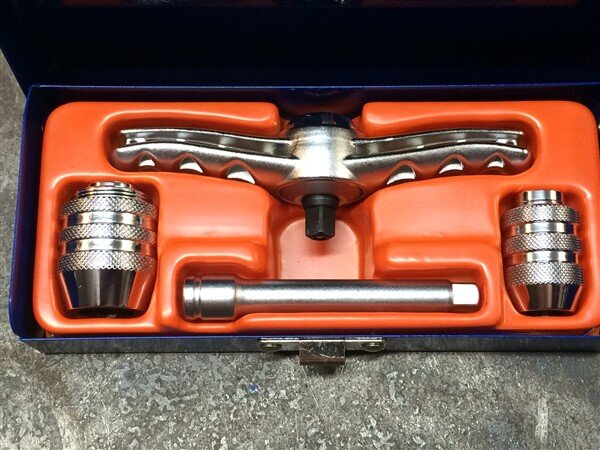

Picked up a tap and a cool tap wrench set that uses little 1/4" drive chucks, so I can use a normal 1/4" ratchet if space is limited. :icon-cool:






Drilled a suitable size hole.

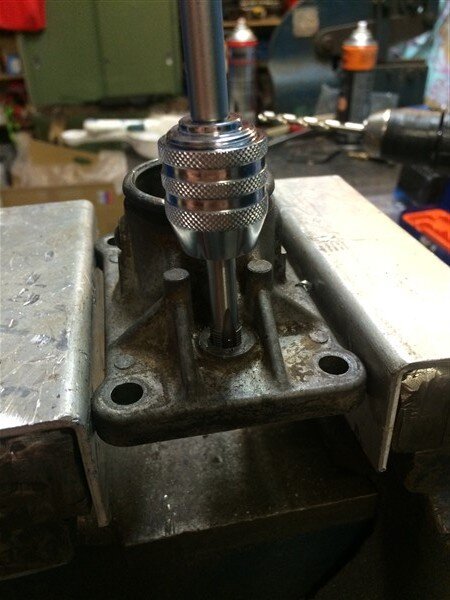

Wound the tap through it.

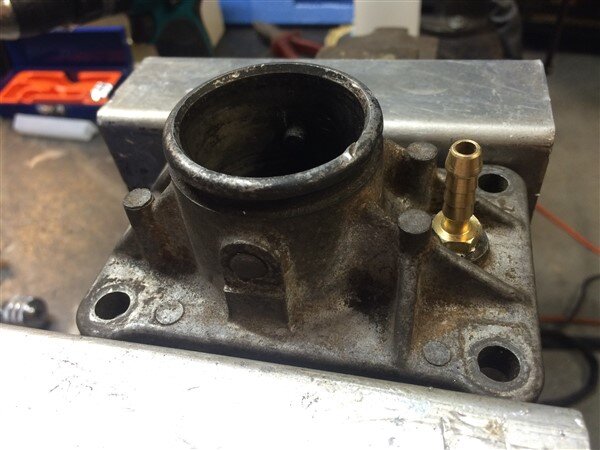

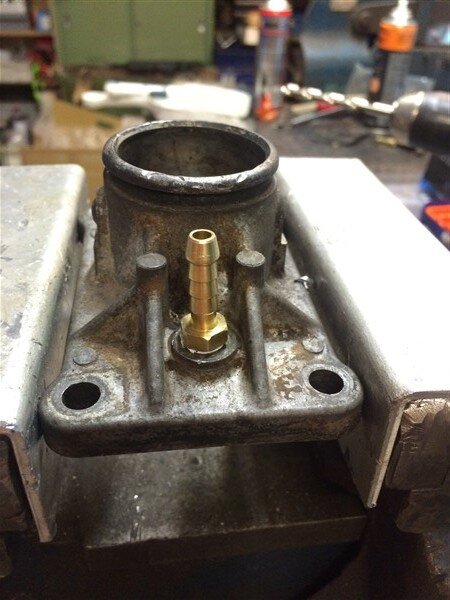

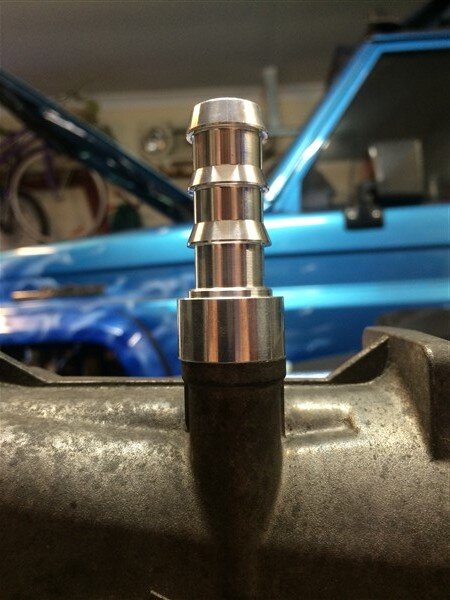

And screwed the fitting into it.



I dont plan on fitting a permanent snorkel, but I will be fitting diff breathers to both axles and the G & T boxes and I will probably make a temporary snorkel that can be carried in the vehicle and quickly fitted for the very rare occasion when I might need to cross a deep river or creek. :think:

More Radiator Modifications.

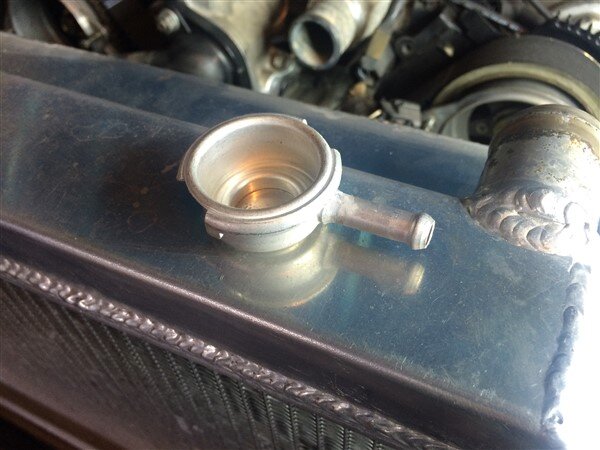

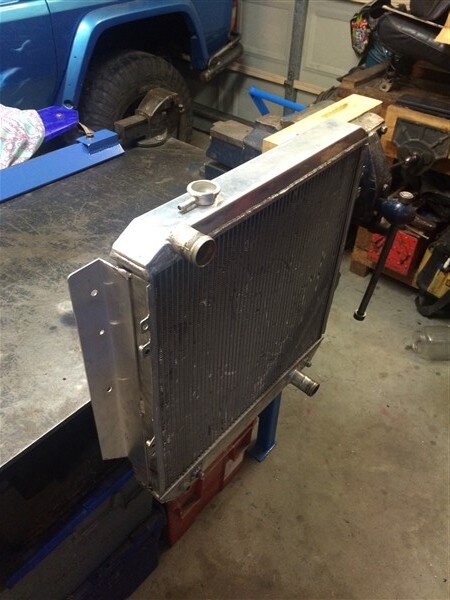

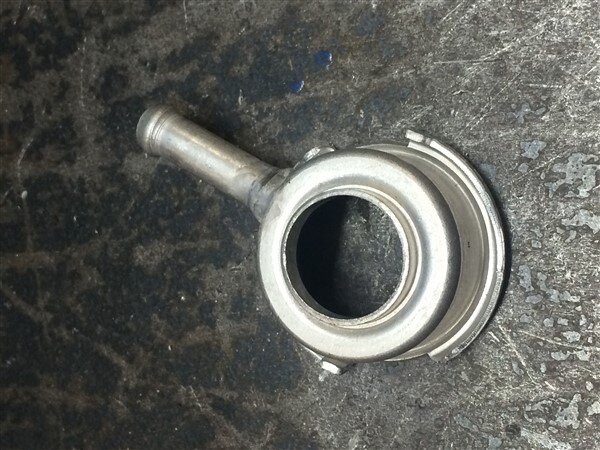

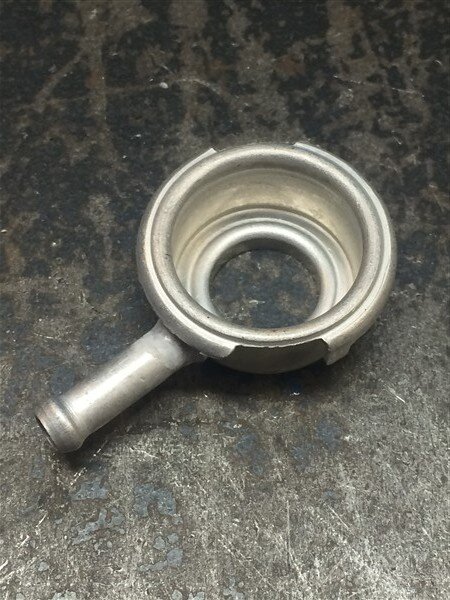

The bargain $3.50 delivered, radiator neck finally arrived from China.

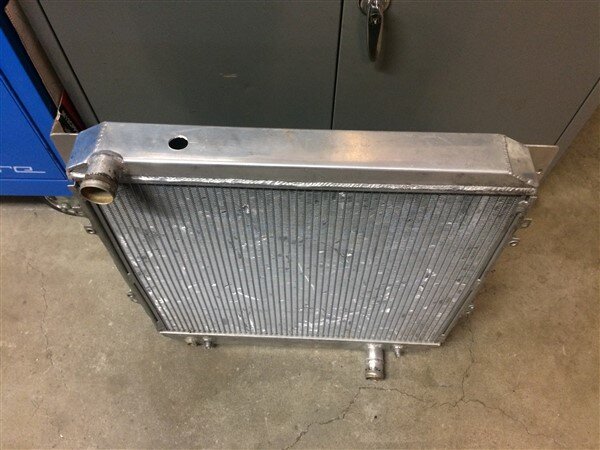

Worked out where it should go.

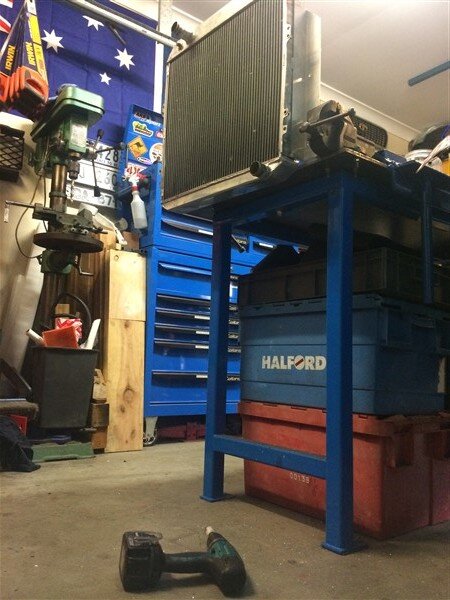

Got the rad in the vice.

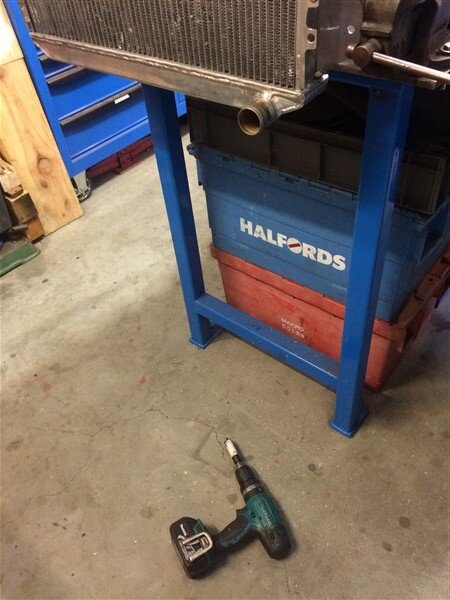

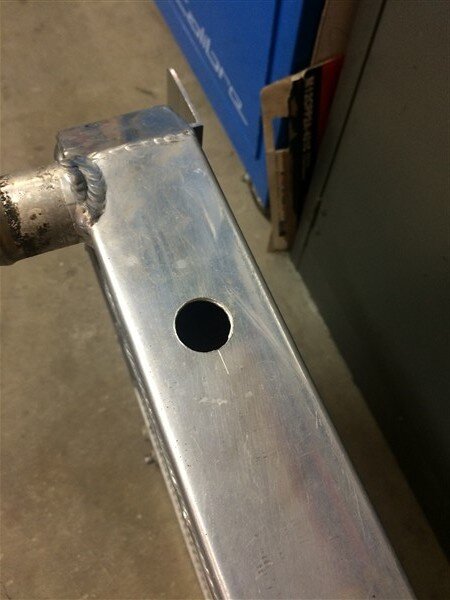

And drilled up from below with a step drill, to minimise swarf going inside the rad.

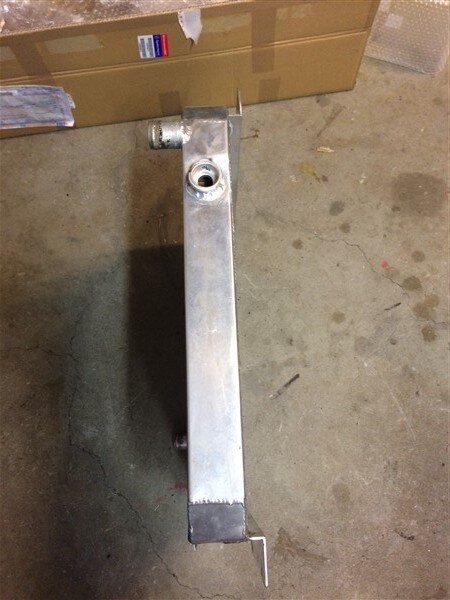

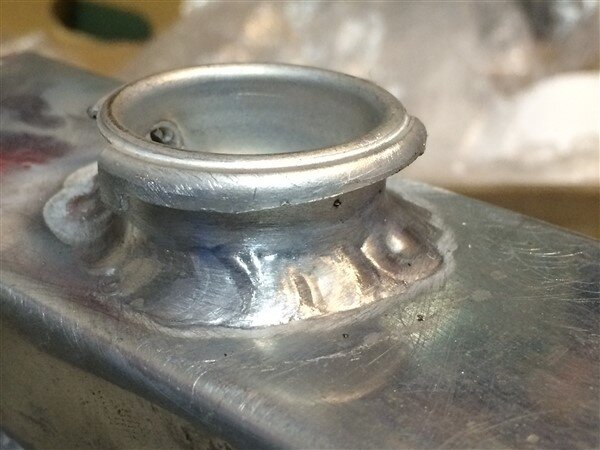

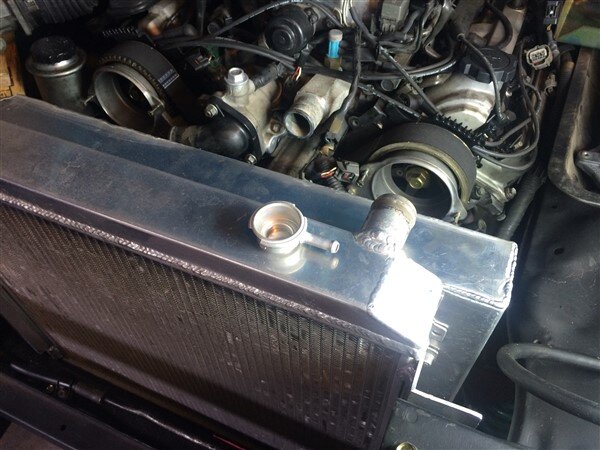

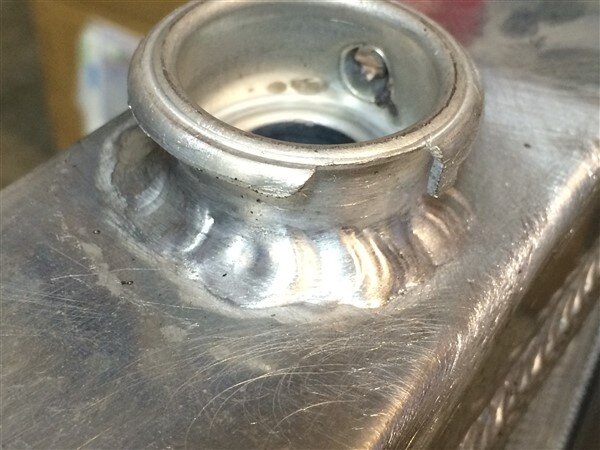

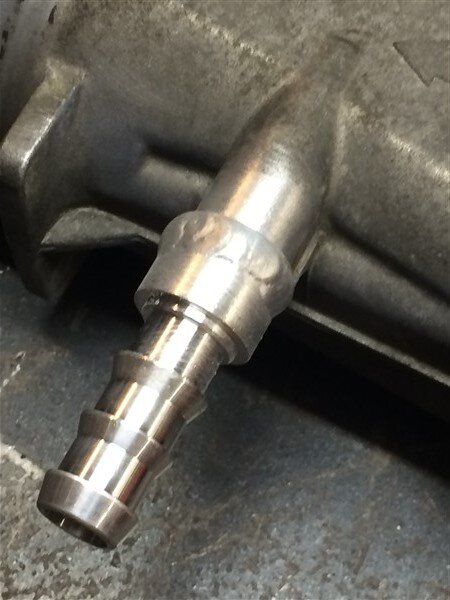

Welded it on.



Which went well.

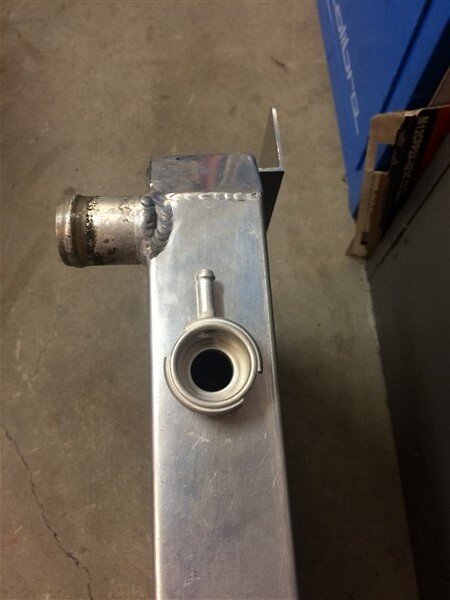

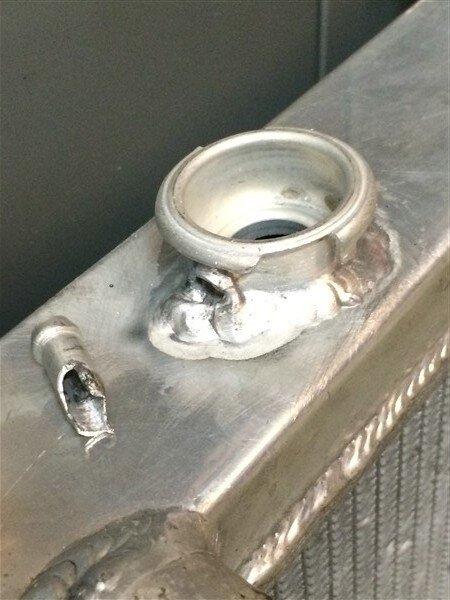

Until I got to welding underneath the overflow outlet and put too much heat into it and melted the fitting off! :thumbdown:


So new 8mm weld on aluminium fitting ordered from Melbourne and hopefully that will fix it! :pray:

Fan Belt.

I measured up for a new belt, now I've deleted the aircon pump from my engine.

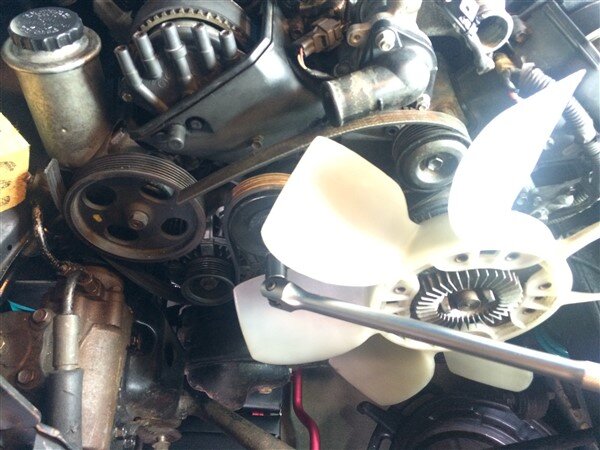

Cut my old belt and used that to help me measure.

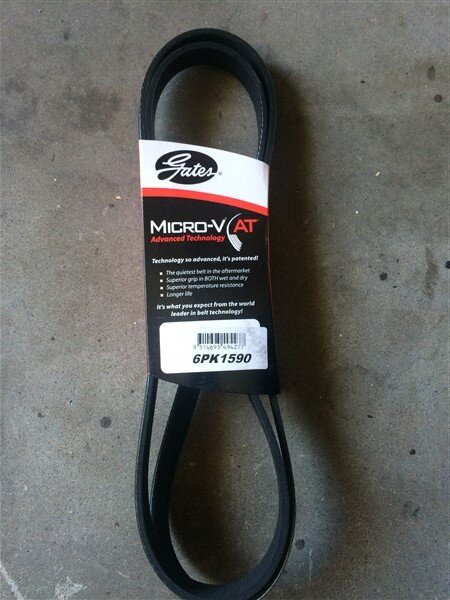

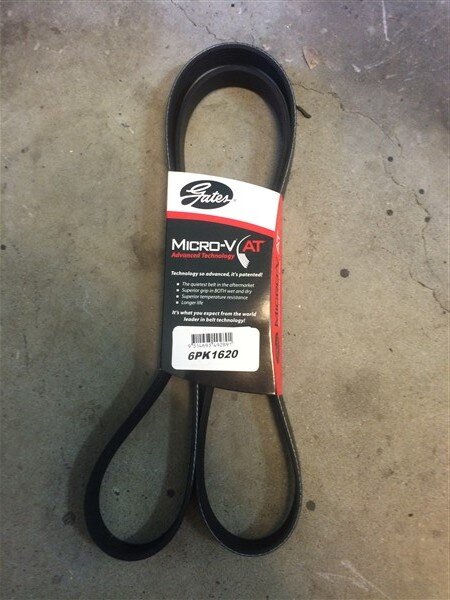

Picked one up.


But that one was just too small. :doh:

So I took it back and swapped it for a slightly bigger one.

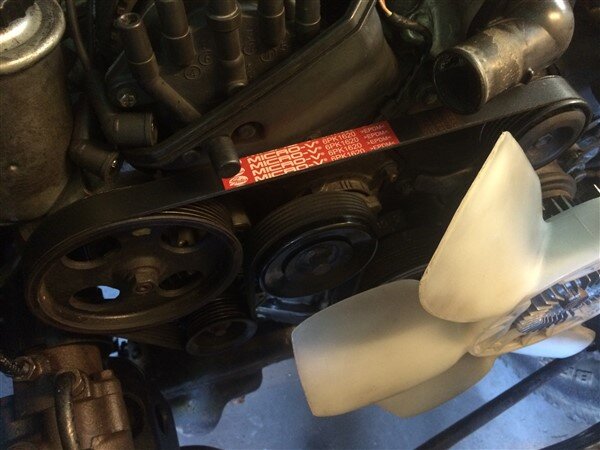

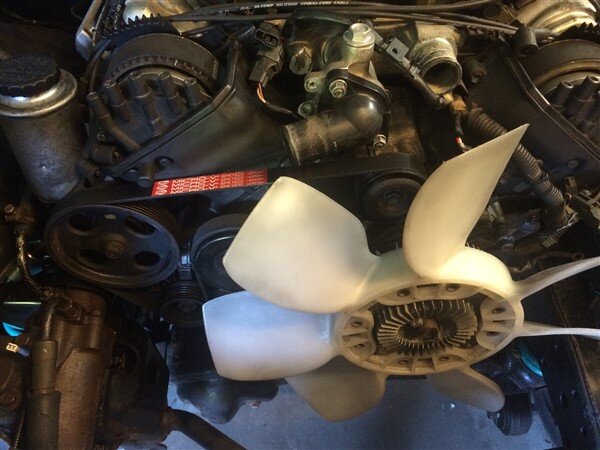

Which fitted beautifully! :dance:



Anti Roll Bar

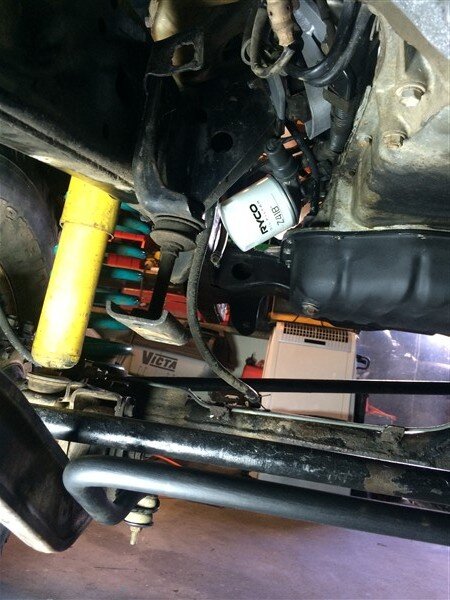

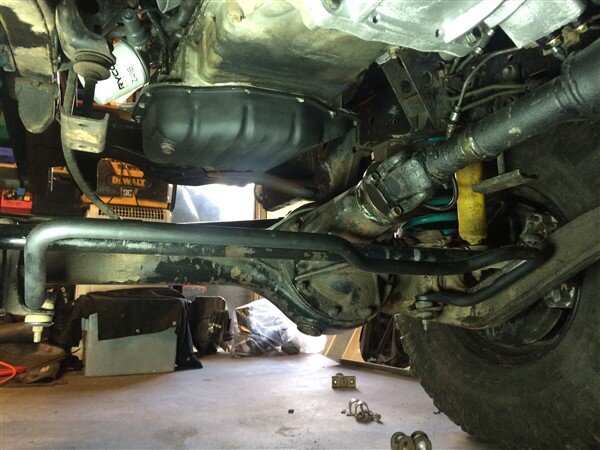

I bolted the freshly painted ARB on.


But I'm going to have to either make some spacers, or cut and shut the chassis brackets slightly for the 4" suspension lift. :think:

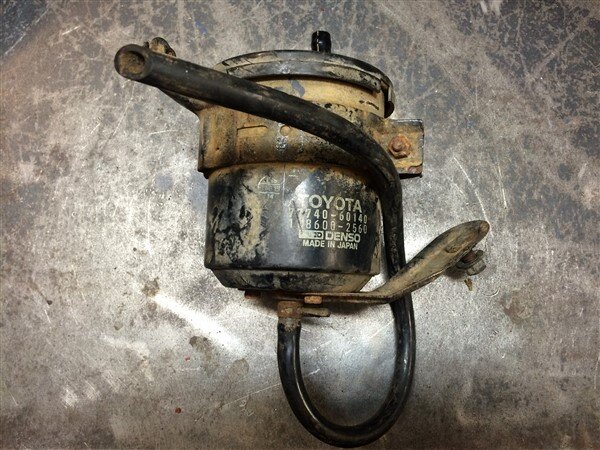

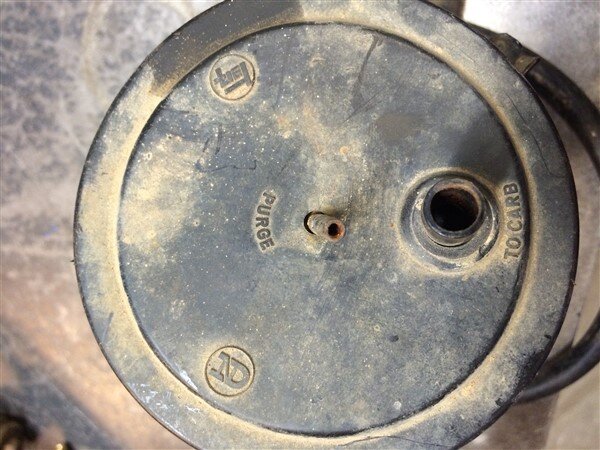

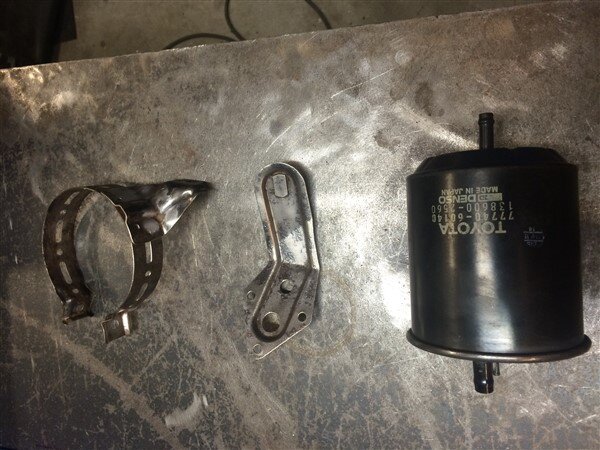

Charcoal Canister

I spotted something online about the fact technically I should be fitting a charcoal canister as if I ever choose to get it engineered, to make it fully road legal, it will probably need one.

Not a problem, RJ came with one.


I wasnt sure how to connect it to a fuel injected car.

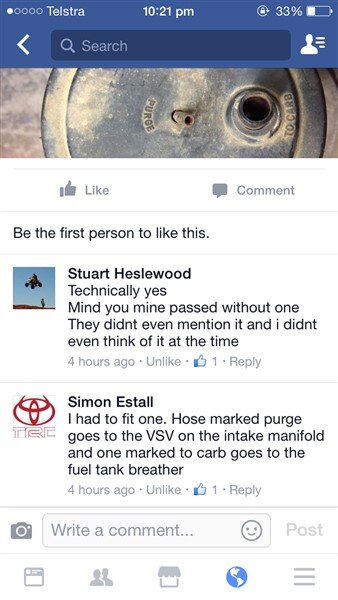

but a quick question on the 1UZ facebook page and I soon had an answer! :clap:


I cleaned all the surface rust off it.

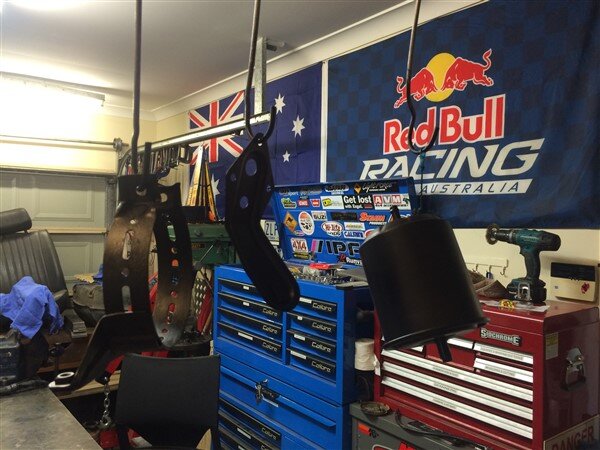

And hung all the bits up and gave them a coat of rust convertor.

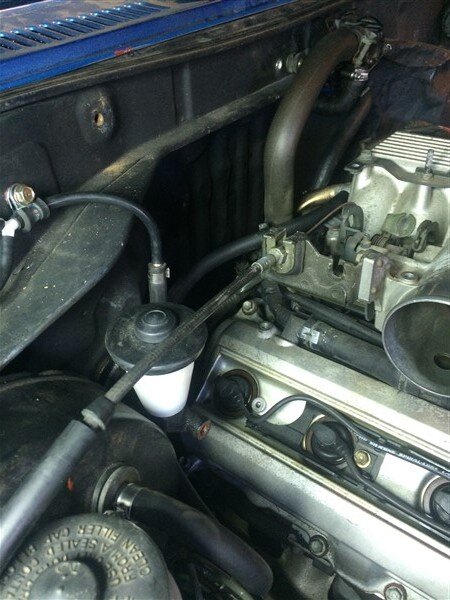

Throttle Cable, Vacuum Hoses & Heater Tap

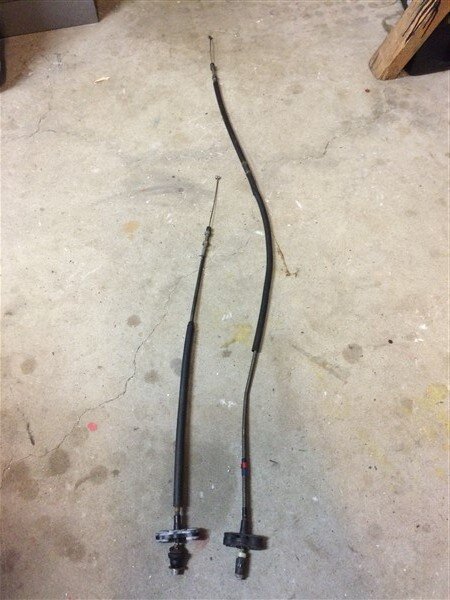

I decided to fit the much shorter LS400 throttle cable as the one fitted to RJ, which I'm not sure if it was for the 2lt or 22r was far too long.

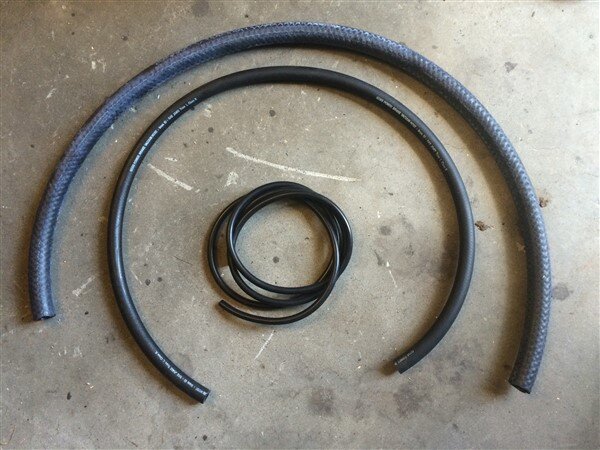

I also picked up some vacuum hose for the 4wd high range solenoids and the brake booster.

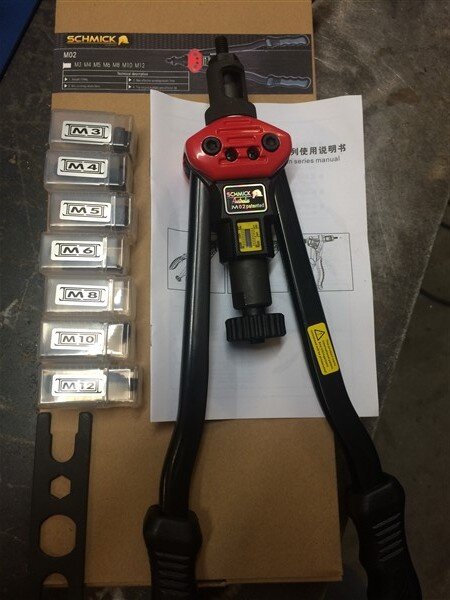

I finally got myself a rivnut tool and went for a good one that does from M3 all the way up to M12! :icon-cool:


This meant I could put rivnuts in the bulk head where required to make for a really neat look.

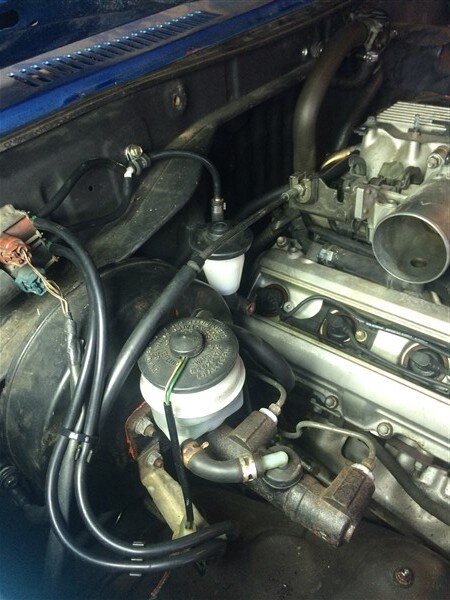

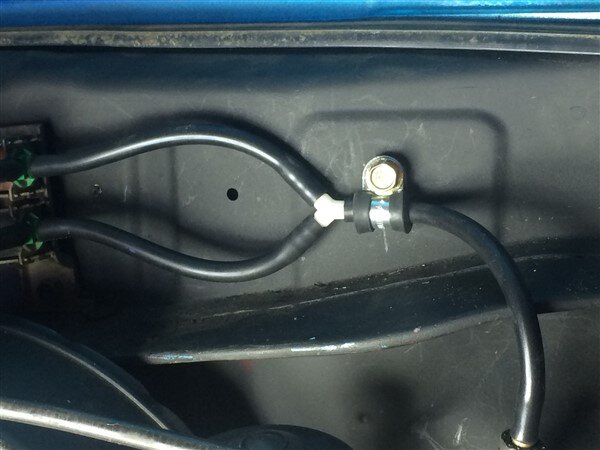

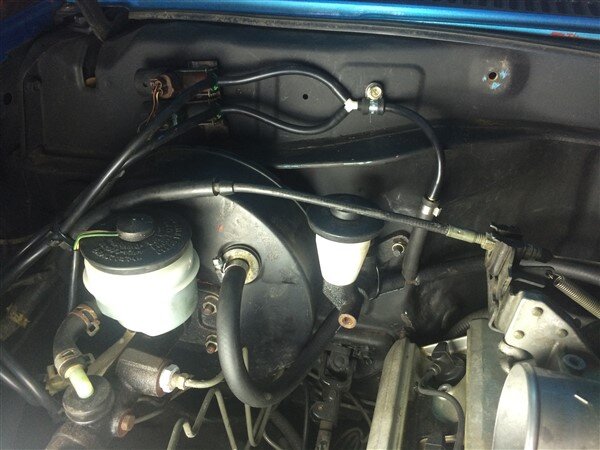

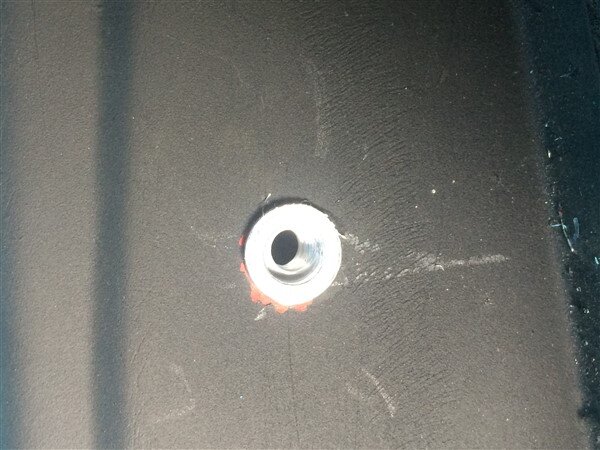

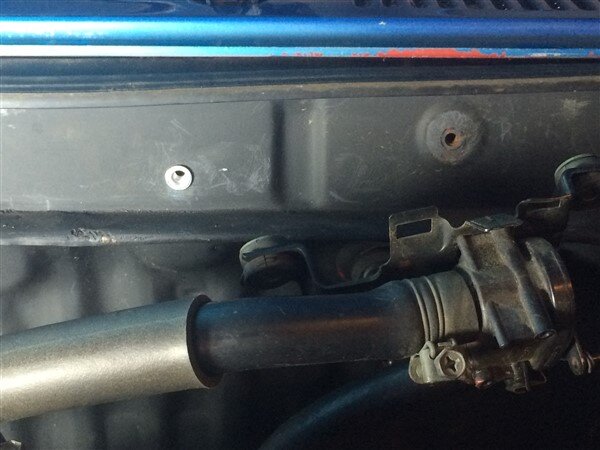

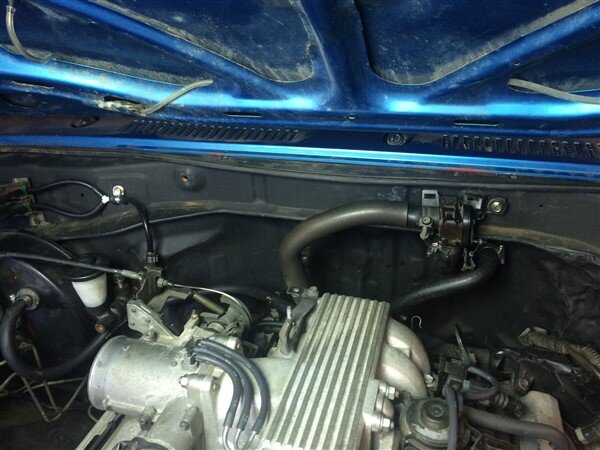

Put a rivnut in to secure the new vacuum hoses for the 4wd high range solenoids to the bulk head.

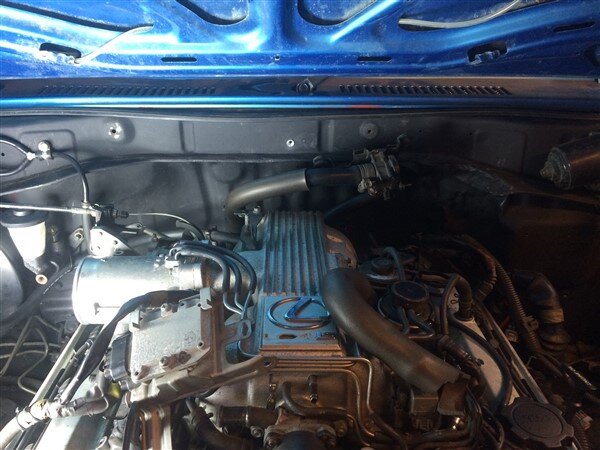

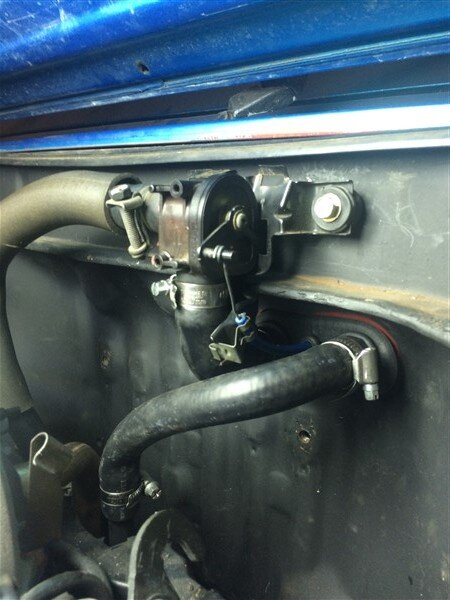

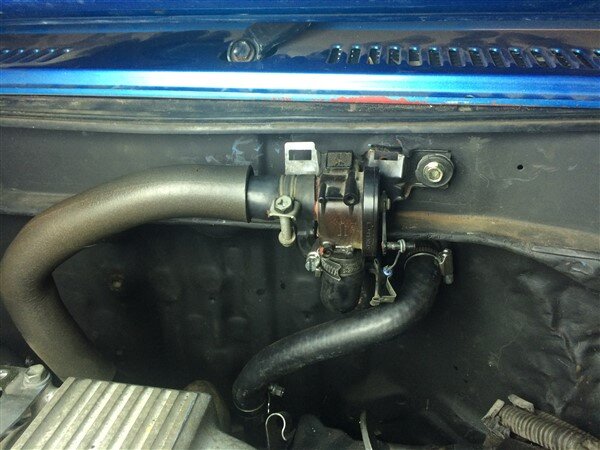

I secured the LS400 heater tap to the bulk head next and plumbed it into my heater matrix.






So thats those 3 connected up.

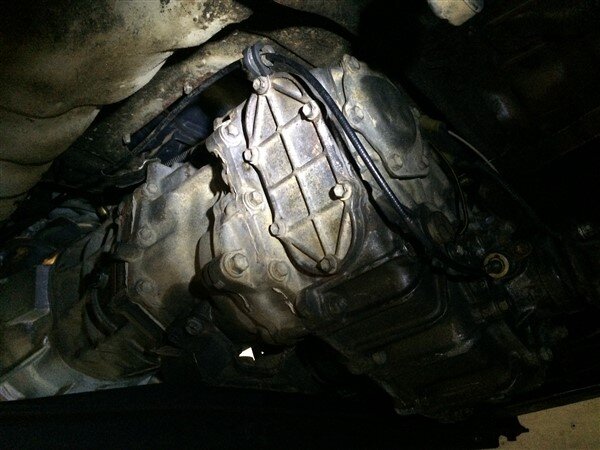

Speedo Cable

I wasnt happy with the way the speedo cable had been run on RJ, I'm not sure if it was factory but I didnt like it.

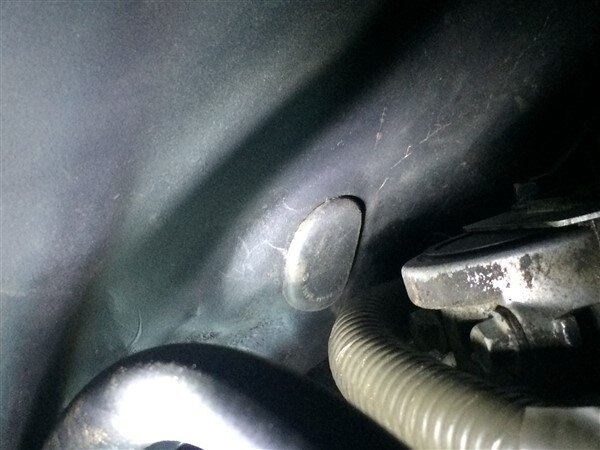

It came through the bulkhead very close to the engine, so I fitted a rubber grommet in that hole to blank it off.

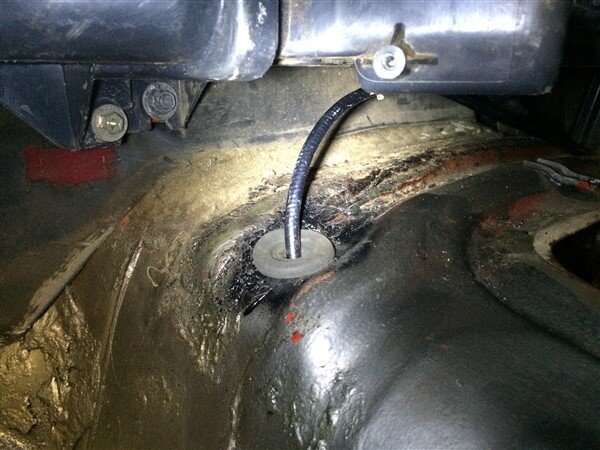

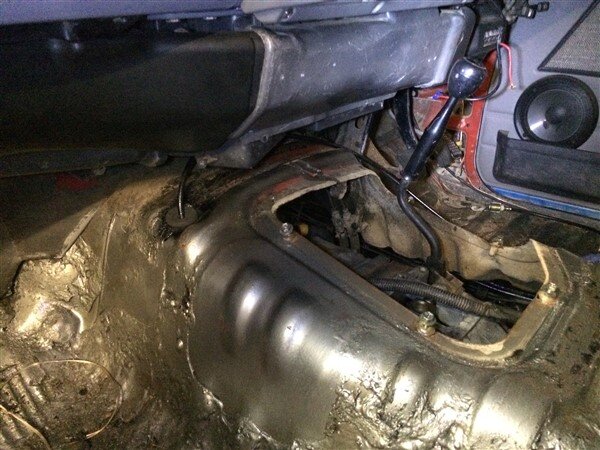

And instead ran it through a hole I put in the transmission tunnel, the same as the later 70's (like my LJ).



Added a couple of brackets to secure it nice and high away from where the exhaust will run.

(Apologies for the terrible pics :oops:)

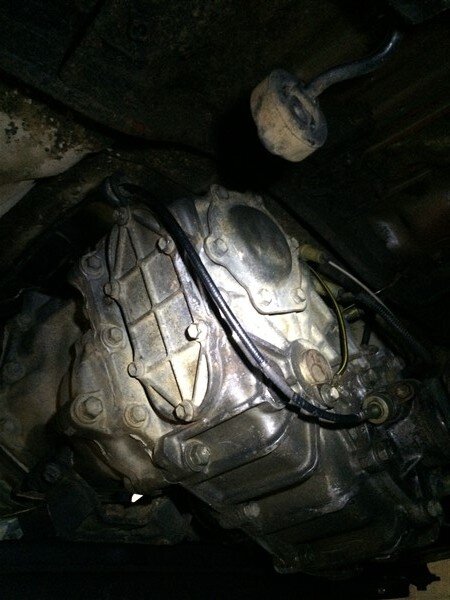

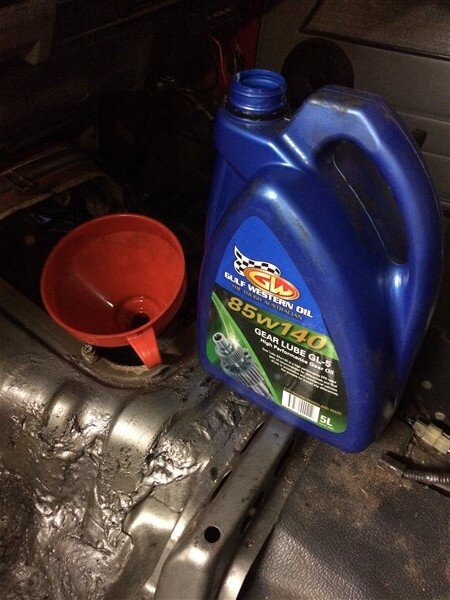

I decided to fill the gearbox the easy way, before the gear stick gets bolted back on. :icon-cool:

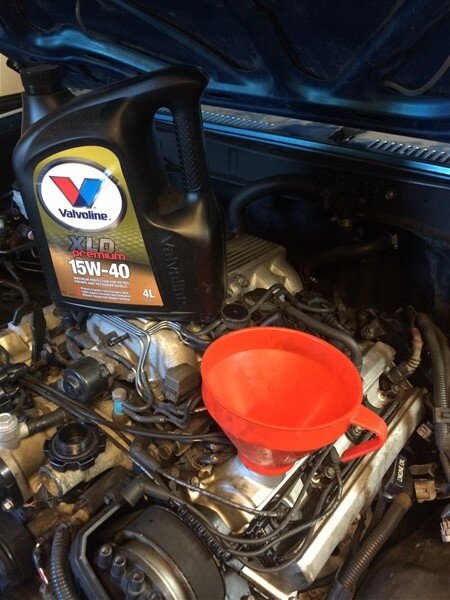

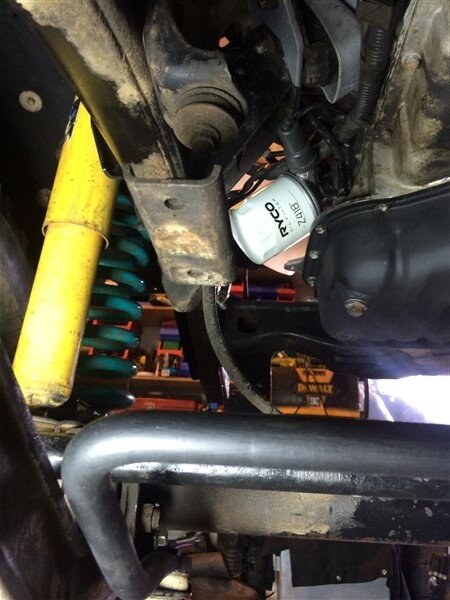

While on the subject of oil, I also filled the engine sump up.


Air Intake/Air Box

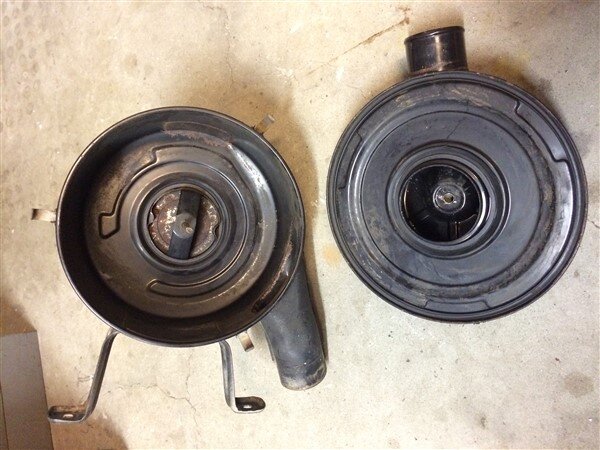

I picked up a 60 series airbox at the weekend while I was out picking that I hoped I could use.



But it is too big to fit in the space in the engine bay and I was worried it might restrict the engine too much. :doh:

So I gave it a lot of thought and after lots of googling I think I've come up with a really neat solution that should work well and be far neater than any of the other conversions I've seen. :icon-biggrin:

I want my conversion to look as factory as possible, so I'm trying to avoid using universal parts and bright blue silicon bends everywhere from the intake to the rad like most people do. :think:

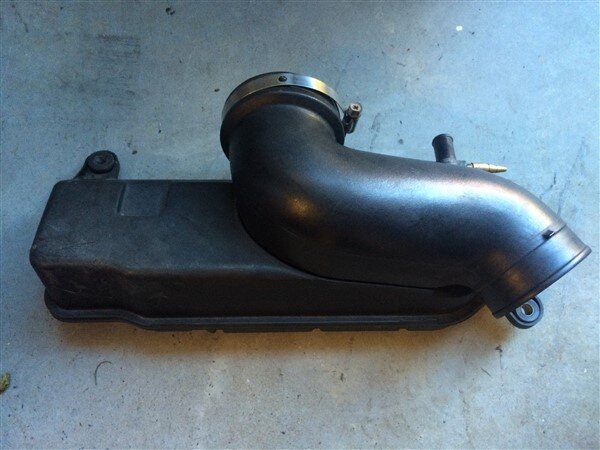

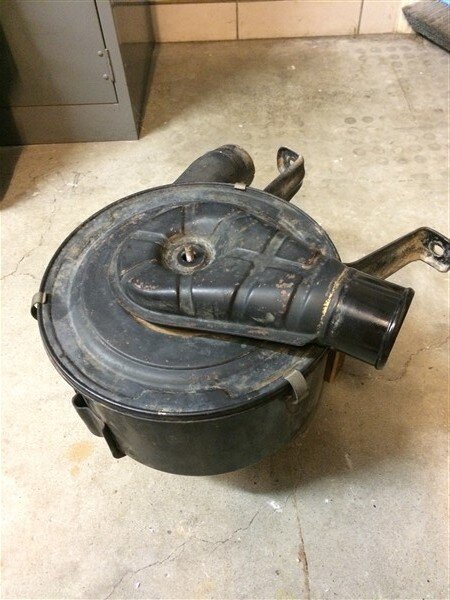

So I'm going to delete this plastic box completely!

It will make for a neater install and help with clearance issues.


Only issue with that is it has a 15mm/5/8" breather hose going to it.

Most people have to 2 silicon hoses to get around this so they can fit a boss to mount it to, but I decided to do it differently so I will only need 1 silicon bend. :icon-biggrin:

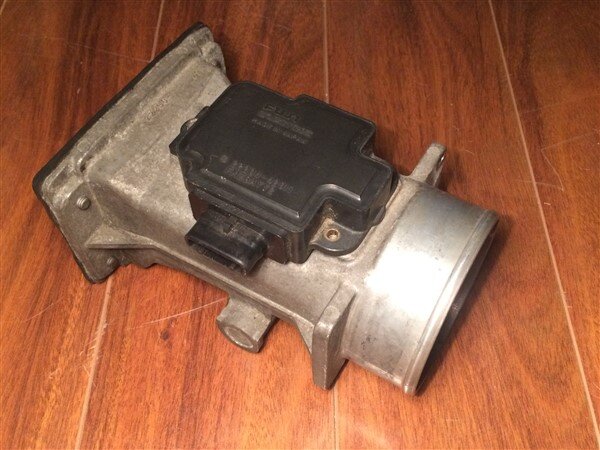

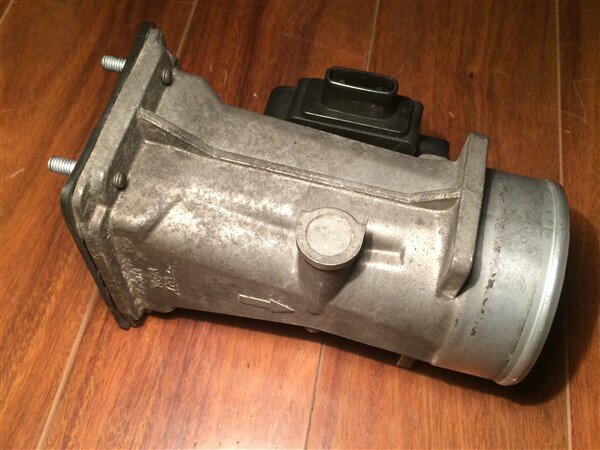

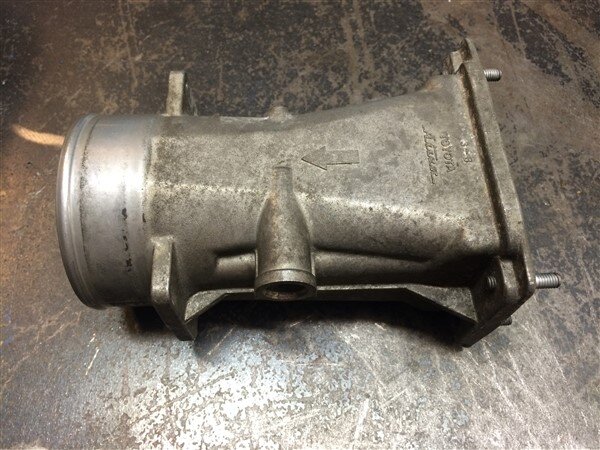

I was looking at the alluminium MAF housing.

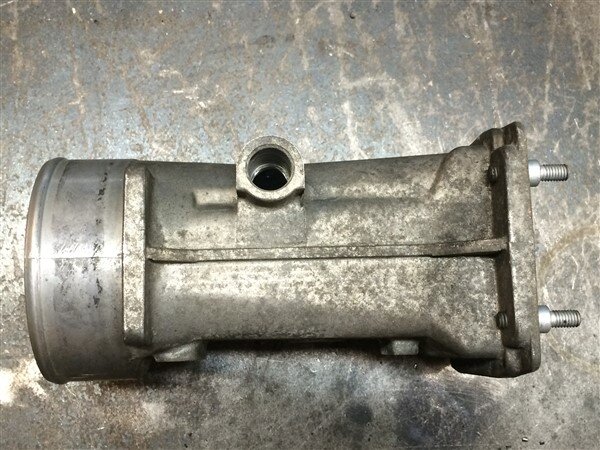

And spotted it had a boss in it that had been capped off.

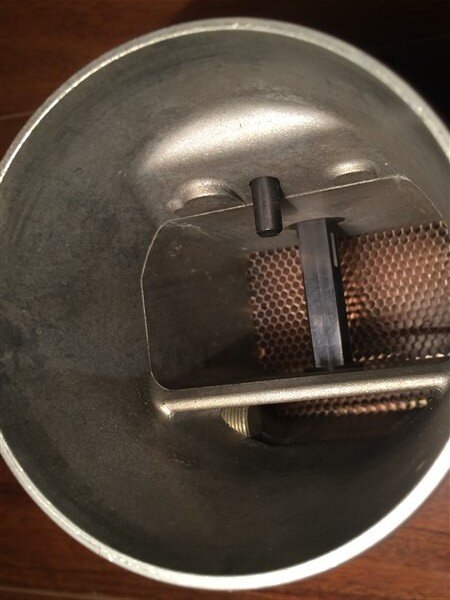

Looking down inside I saw it was even threaded and sits below a sort of bridge separating it from the sensor above. :think:

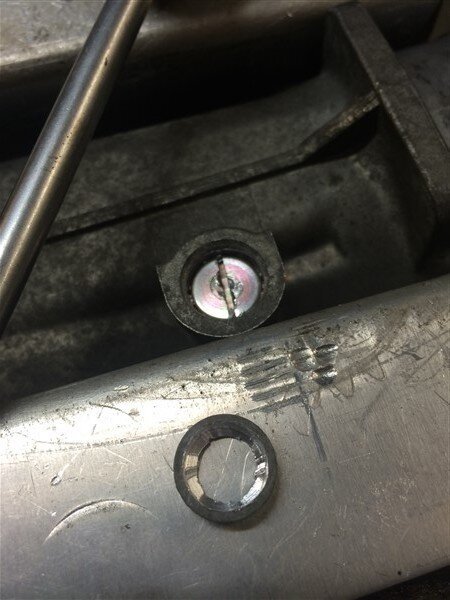

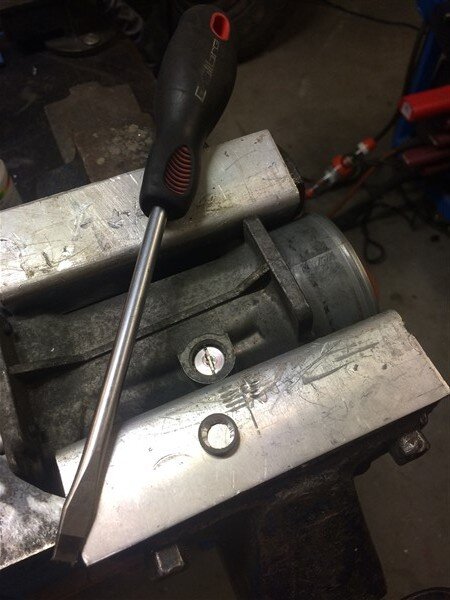

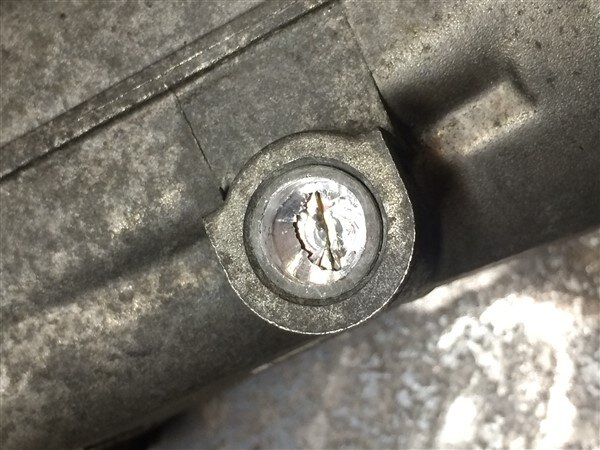

I began drilling through the aluminium bung on the outside and soon went through it and found a slot headed bolt below.

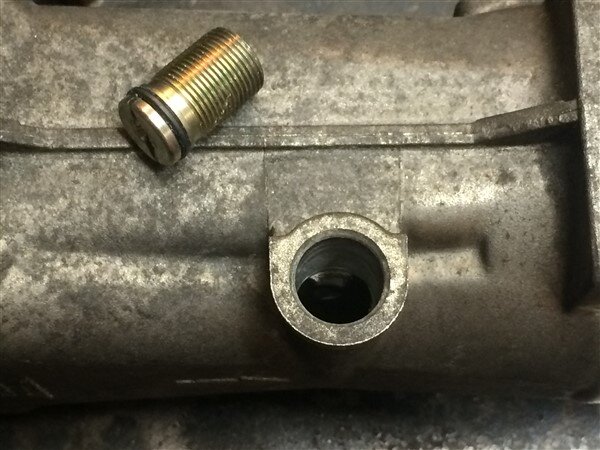

Prysed the remains of the aluminium bung out to fully reveal the bolt below.



Wound it out.

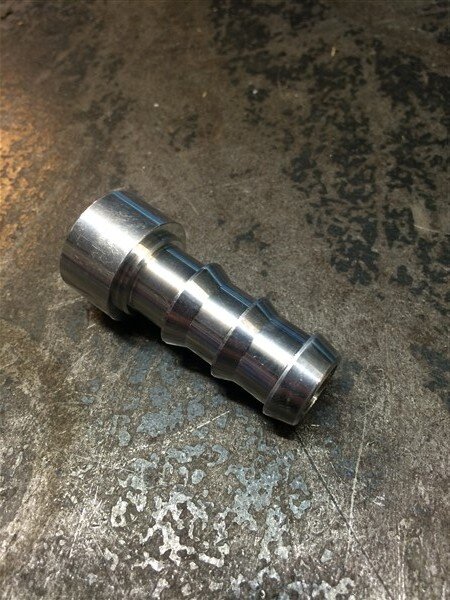

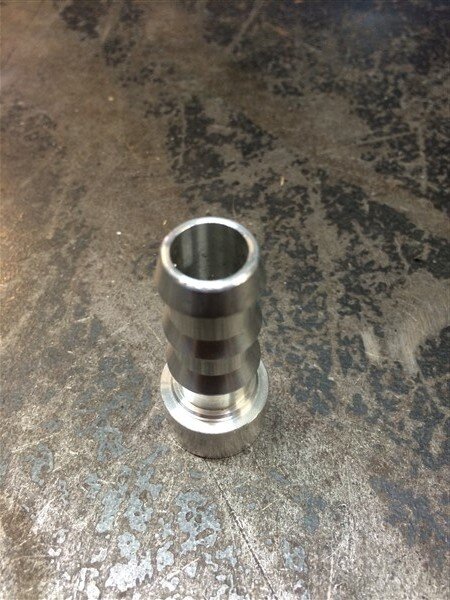

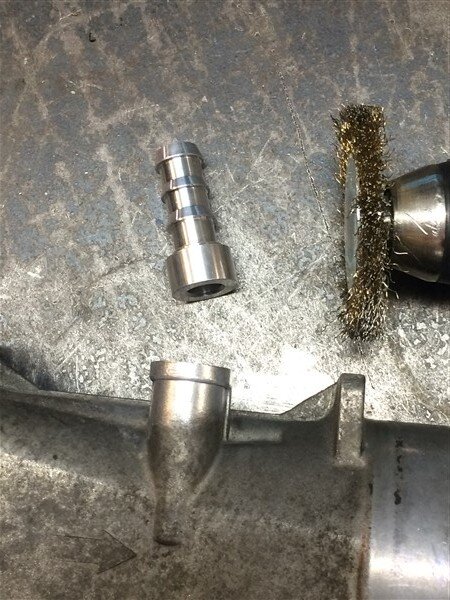

Ordered an aluminium weld on 5/8" fitting off ebay.



Removed the MAF sensor from the housing ready for welding.

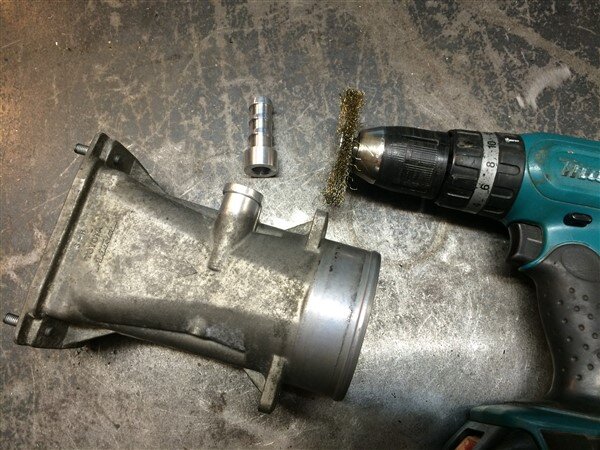

The boss was exactly the same diameter as the weld on fitting which was nice.



Cleaned up the dirty housing with the wire wheel in the drill ready for welding.

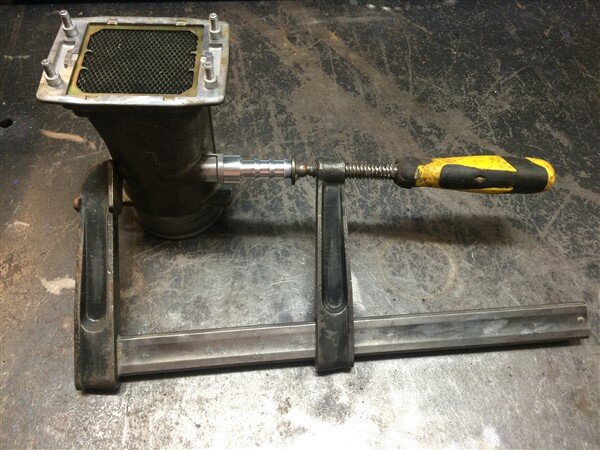

Clamped it in position.

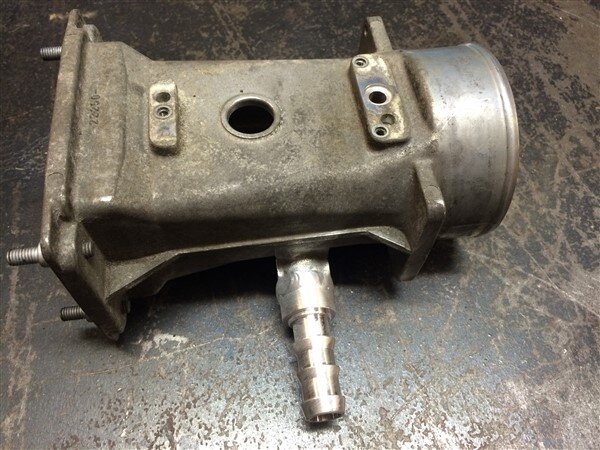

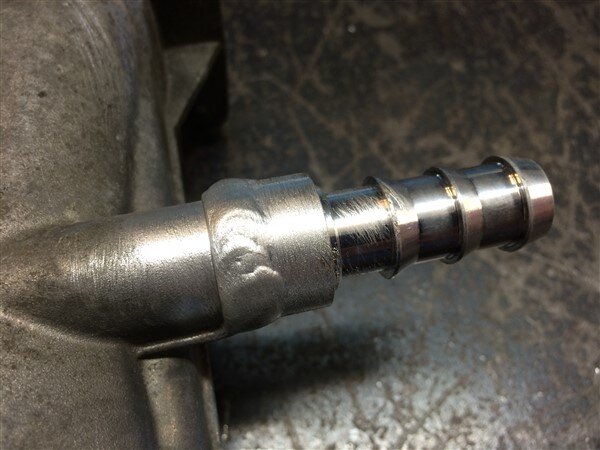

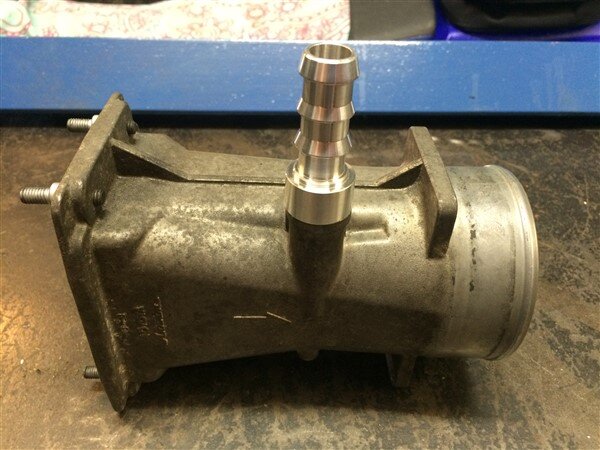

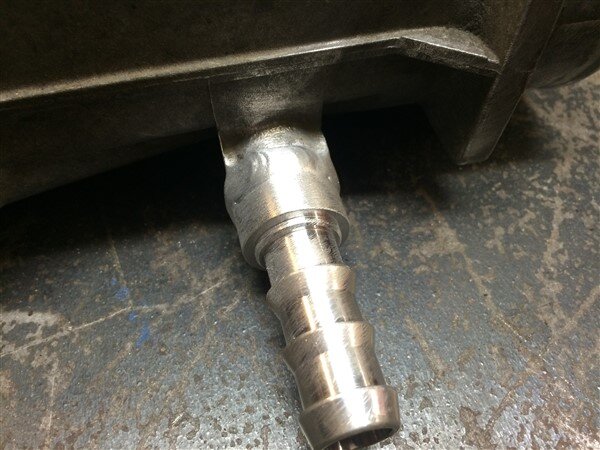

And welded it on.





Now I'm not certain adding this fitting so close to the MAF wont cause turbulence and upset it, but after asking on the 1UZ page I did find one other person who had done it and said it worked fine and never upset the MAF. :think:

I've ordered one black 45 degree silicon bend that will go from the engine to the MAF housing and an aluminium air box that will bolt to the other side of the MAF housing. :icon-cool:

This is the airbox/air filter I've ordered.

http://www.ebay.com.au/itm/172441591873?_trksid=p2060353.m2749.l2649&ssPageName=STRK:MEBIDX:IT

Its very similar to the Pipercross Venom one I wanted in that its a sealed box, but this one is much cheaper and its aluminium meaning I can weld all my own mounts to it to securely mount it. :icon-cool:

I'm also going to order some aluminium 3" mandrel bends so I can make a cold air feed straight from the front of the car, which I also want to make a temporary/emergency snorkel for. :icon-twisted:

Once thats done I will get it powdercoated black. :icon-biggrin:

I picked up a new metal working machine this week so I can modify the fuel tank to mount the Lexus pump, but more on that next time. ;)

FFS! :angry-screaming:

The pics below shouldnt be there and I cant delete them as they keep re-appearing. :icon-rolleyes:

@Crispin?



IMG_4881_zpsxjyocate.jpg IMG_4882_zpsbj9i3wsm.jpg IMG_4883_zpssm00zpyi.jpg IMG_4884_zpsfqrqc8vd.jpg IMG_4886_zpsuykdedxh.jpg IMG_4887_zps6mxwrqdb.jpg IMG_4888_zpsl2tlpufx.jpg IMG_4847_zpsvyyxrhmu.jpg IMG_4848_zpsbvsj3i0w.jpg IMG_4849_zpsegp5jrme.jpg IMG_4850_zpsx3phcuf0.jpg IMG_4859_zpsf5ia6kyt.jpg IMG_4860_zpsfxtpjkkp.jpg IMG_4861_zpsgjmroqpg.jpg IMG_4862_zpskoctc4ly.jpg IMG_4863_zpsuxoa4un5.jpg IMG_4865_zps4qpkmsiu.jpg IMG_4873_zps6glyiie9.jpg IMG_4874_zpsd8n1qogk.jpg IMG_4875_zpsokbcorgy.jpg IMG_4876_zpszrc4bptx.jpg IMG_4857_zpszhlechnb.jpg IMG_4858_zpsybnediuu.jpg IMG_4961_zpsml8fqrzu.jpg IMG_4964_zps3repxtxy.jpg IMG_4965_zpst7krfie5.jpg IMG_4966_zpsqou2jawn.jpg IMG_4891_zpszglk0ayx.jpg IMG_4892_zpsqgzjyqvx.jpg IMG_4893_zpsevsfzhgz.jpg IMG_4924_zpskjwfhjgd.jpg IMG_4925_zpsts3sqptz.jpg IMG_4926_zpsfnha98kg.jpg IMG_4981_zpsk4qu53yq.jpg IMG_4992_zpsuxhpewqm.jpg IMG_4959_zpsjfpooxo2.jpg IMG_4962_zpsucghjgop.jpg IMG_4967_zpsj67jc4ii.jpg IMG_4971_zpsdocen2yw.jpg IMG_4972_zpsxlyb6wrj.jpg IMG_4973_zpsvqxpjgln.jpg IMG_4974_zpskfkdvs6d.jpg IMG_4975_zpsofqbyfkk.jpg IMG_4976_zpszakrq6dq.jpg IMG_4977_zpslowxgylx.jpg IMG_4978_zpskqgituit.jpg IMG_4979_zpsnubawppy.jpg IMG_4980_zpslu0l7yzb.jpg IMG_4993_zps96h5apo4.jpg IMG_4998_zps0eqa508w.jpg IMG_4999_zpspzbnvhhv.jpg IMG_4994_zps22h8jced.jpg IMG_4995_zpsy5mhfnpn.jpg IMG_5001_zps5lacg7sw.jpg IMG_4982_zpsb9ya2zjj.jpg IMG_4954_zpsi19urivk.jpg IMG_4955_zpszvxcjbhz.jpg IMG_4934_zps3d1czbhm.jpg IMG_4936_zpsuterhxje.jpg IMG_4937_zps95g4lstk.jpg IMG_4938_zpshcsukcl8.jpg IMG_4939_zpsxtrhsveh.jpg IMG_4940_zpstqhiwvsf.jpg IMG_4941_zpsvinzfhxr.jpg IMG_4942_zpscbvydp6k.jpg IMG_4983_zpsxzjufrf0.jpg IMG_4984_zpstlcyfofv.jpg IMG_4985_zpsmkcnlfbl.jpg IMG_4986_zps9p3kqtbv.jpg IMG_4987_zpszdmlkmte.jpg IMG_4988_zps5ezhqsur.jpg IMG_4989_zpskmgasoli.jpg IMG_4990_zpslb8v6veu.jpg IMG_4991_zpsuyrwbrwo.jpg IMG_5002_zpsdy3izgca.jpg IMG_5003_zpsxfyumjoi.jpg IMG_5004_zpsruz6wrqv.jpg IMG_5005_zpssdezoty5.jpg

Last edited:
It's interesting that each back has its own distributor not seen that before.

Can you run each bank on its own then?

Don't like the adverts?  Click here to remove them
You shouldve centered that bung before welding it to the MAF sensor ;)

Simon Estalls a good guy on the Facebook groups, I know him from the Hilux Surf group.

It's interesting that each back has its own distributor not seen that before.

Can you run each bank on its own then?

I'm not sure. :think:

I was reading today that the new Lamborghini V12 runs on half a bank in stop start traffic to reduce fuel consumption. :ugeek:

You shouldve centered that bung before welding it to the MAF sensor ;)

It is perfectly central of the boss that is sticking out of the side of the housing! :?

It couldnt have gone completely central on the housing as there is a bridge in the center of it to protect that boss from the sensor above, have another look at the pics. :icon-wink:

Simon Estalls a good guy on the Facebook groups, I know him from the Hilux Surf group.

Theres some really good guys on the 1UZ Hilux page and everyone is very friendly and helpful. :clap:

I try to avoid the other 1UZ group as theres a lot of yanks on there who are complete dick heads and abuse you if you ask a question they deem as "dumb". :wtf:

I was thinking that if you had a problem on one bank you still run the other to get you home or to a road.

The bmw 5.0l v12 ran on either bank if it had issues

Haven't been on the page in some time. Looking good man! You're getting close and all that attention to detail will pay off, meaning more time driving, etc. and less time fixing bugs once it's up and running. Nice!

:lol:

Well I bought it! :shifty:

Just got to work out what to do with this thread now that RJ is getting LJ's old body and the engine out of the new one and then its getting sold. :?

LJ is getting the V8 and the soft top body and the new one is getting the 1KZ out of LJ and all the good bits like fridge, winch etc. :icon-cool:

So 3 engines to pull out, swap around, plumb and wire and 2 bodies to swap! :sleeping-sleep:

:lol:

Well I bought it! :shifty:

Just got to work out what to do with this thread now that RJ is getting LJ's old body and the engine out of the new one and then its getting sold. :?

LJ is getting the V8 and the soft top body and the new one is getting the 1KZ out of LJ and all the good bits like fridge, winch etc. :icon-cool:

So 3 engines to pull out, swap around, plumb and wire and 2 bodies to swap! :sleeping-sleep:

I'm somewhat speechless... :?

You still haven't told us all what exactly you've bought:think:
As the saying goes, put up the photos or we don't believe you:whistle::eusa-liar::laughing-rolling:

Looks like there'll be an "RLJ 70 perm any 2+1 from 3" thread soon... :lol:

:lol:

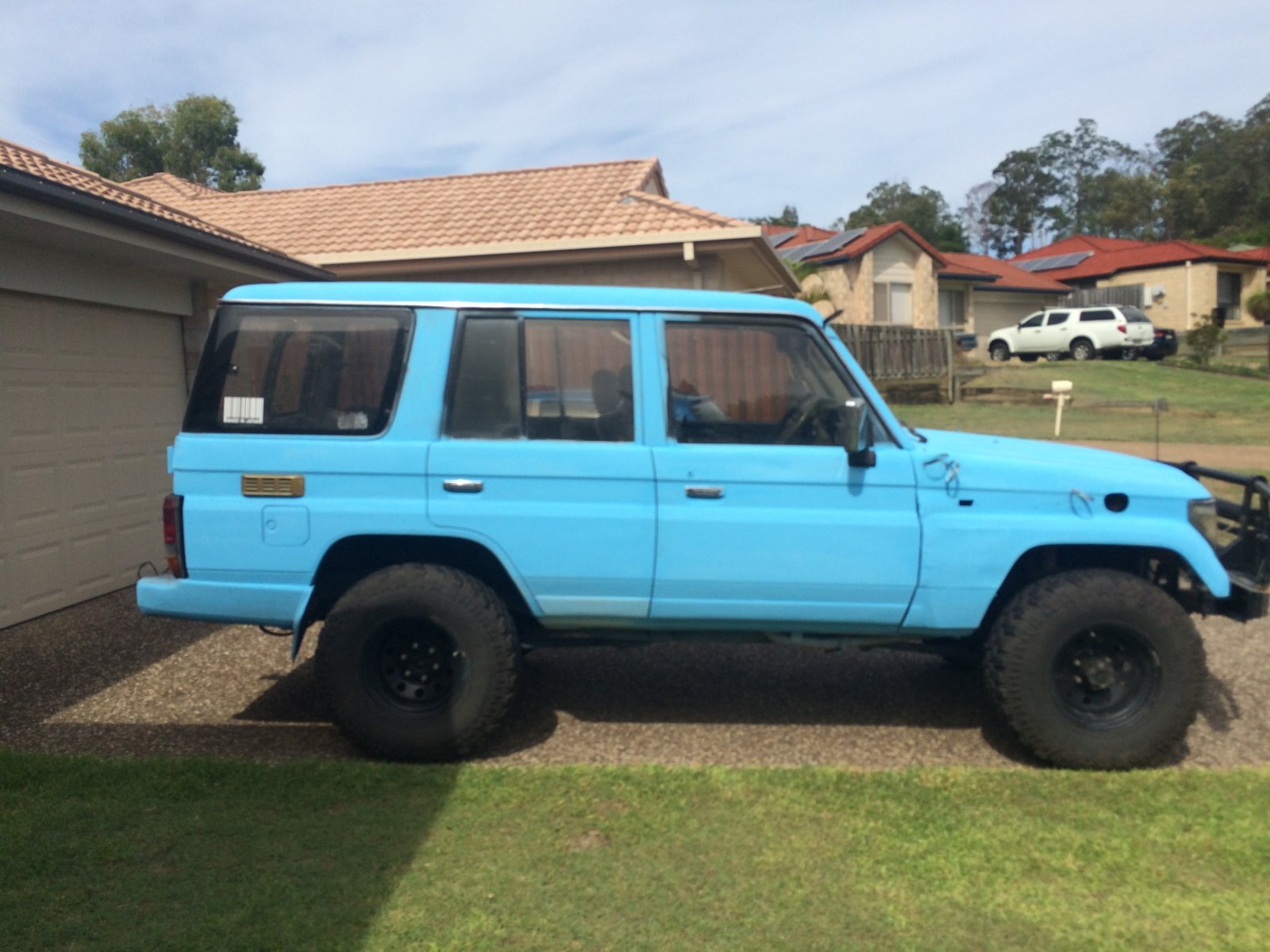

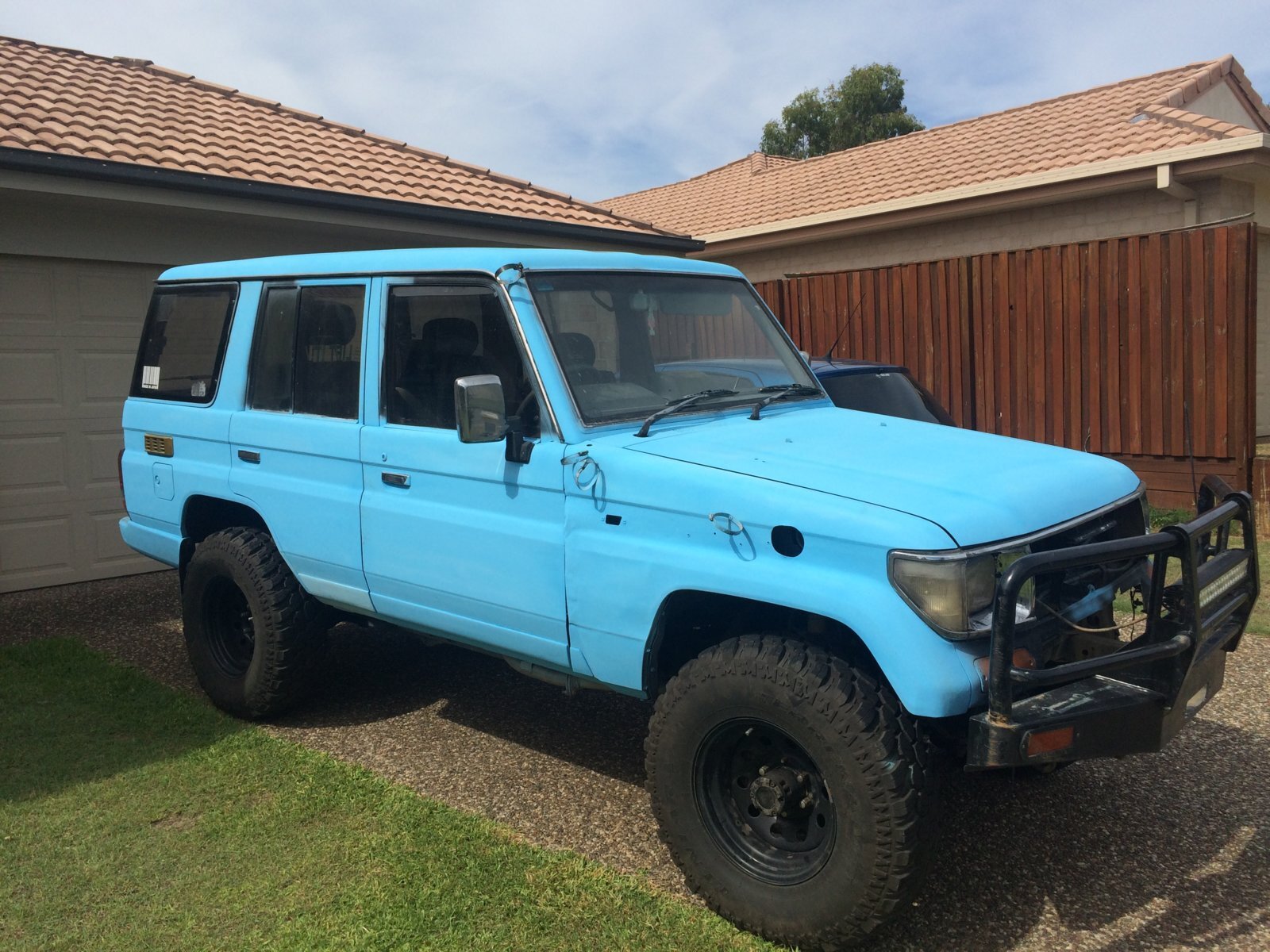

I've bought this LJ78 with a terrible paint job in need of a lot of love, but structurally very good!

LJ was just too small for big trips and when my kids get here, we wouldnt be able to use it for camping full stop!

So I think this will be the perfect solution. :think:IMG_5125[1].JPG
