Sub tank to VZJ95 LHD 97 Europe

RNS Aug 11, 2019

  1. RNS

    RNS New Member I am in russian_federation

    23
    11
    3
    Map
    Has finished the installation sub tank to my VZJ95.


    Now I have 90+70 liters and can go more then 1000km on one filling.

    It is 90% assembled of Toyota factory components except wiring. The tank itself is from Hilux Surf 185,
    two way fuel tank inlet is stock,
    main valve is from 100 series (modified),
    valve bracket is stock from diesel version (modified),
    main fuel tube is stock,
    the switch is from rear heater,
    The switcher operates two 5contact relays (one switches fuel senders and the other is for fuel pumps).
    The original connection scheme without return valve makes these two tanks semi independent (the return comes only to the main tank, but each tank has its own pump).

    Bert likes this.
  2. Beau

    Beau Well-Known Member I am in guyana

    1,889
    224
    63
    Map
    I did the same thing. Surprised it's not a more popular mod in the UK. Suppose with the price of fuel, who wants to see their wallet vanish so quickly.

  3. chadr

    chadr Well-Known Member I am in england

    2,674
    385
    83
    Garage:
    Map
    Looks interesting - my main tank was replaced with a LPG cylinder, so I have a custom made petrol tank under the passenger side but it only holds about 45l. Something like this would be great to have a bit more range and options.

  4. RNS

    RNS New Member I am in russian_federation

    23
    11
    3
    Map

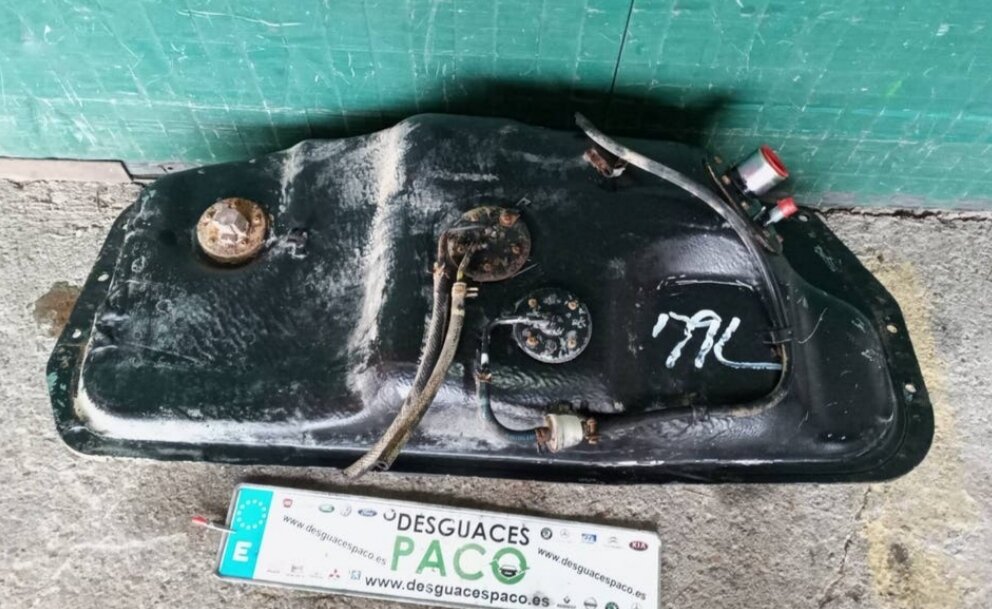

    Stock sub.tank is 70 liters and it is 99% similar as 185 4runner/Hilux Surf. The only difference is that 185's tank has 3 tubes and Prado's 2 tubes. JSAAAgPB4uA-960.jpg
    Above you can see that Prado's tank has only main and return tubes (has no tube to canister and no gravitation valve);
    And 185's tank is below.

    I think that 185's tank is more suitable for non factory installation and even necessary if you are going to use it as main tank (together with LPG system).

    In order to have correct indication of how much fuel is left you are to know, than Prado up to 06.99 and restyling one has different fuel gauges. My (1997) has 3Om resistance when full and 110Om when empty. Restyling has 5 and 108. Also restyling has different principle of working of low fuel lamp. Wrong combination of gauge and sender gives wrong indication. UtgAAgDZuuA-960.jpg

    For 185 there are 3 types of sender. They changed the fuel suction in 2000 and the gauge was changed in 1997. So from 97 till 2000 they've got new type of gauge on old form factor.

    This is old style sender and suction

    And here is new type (left one).

    Please also note that some Prado's frames have no brackets for sub tank, but they can be ordered by Toyota part numbers or you can make most of them and weld by yourself, it is not difficult.

    How I solved the problem of polyamide hi-pressure pipes I will write later on.

  5. RNS

    RNS New Member I am in russian_federation

    23
    11
    3
    Map
    You are right, the amounts I pay for petrol has become really heartbreaking :)
    But I comfort myself that now I have to visit petrol station once in 2 weeks (or even less often) and I now have less useless run for buying fuel.

    For diesel it is a bit easier to install sub tank, because you don't need to make hi-pressure fuel line and don't have problems with wiring. Stock rear diff lock and ABS uses the same connectors as stock sub tank (5VZ-FE Prado's with factory tank have no diff lock). EIAAAgGjHOA-960.jpg

    I have to buy 8pin housing connectors for my custom wiring.

  6. Beau

    Beau Well-Known Member I am in guyana

    1,889
    224
    63
    Map
    Good to know. Mines diesel, so all I did is install a small pump to transfer fuel over into the main tank. Made the install a lot easier.

  7. RNS

    RNS New Member I am in russian_federation

    23
    11
    3
    Map
    As far as I tried to replicate the factory installation I ordered the new main tube and hose. Return and canister tubes are out of stock and available only with delivery time about six months. So I cut used standard ones and flared them up.

    The main tube above is from face-lifted Prado and has different bends so I had to re-bend return and canister tubes. I decided not to use return stock solenoid valve and invented new connection scheme

    Red - main
    Green - return
    Blue - to canister


    Main tube and main valve requires using of quick connector tubes. I made custom tubes of polyamide fuel resistant tube 8mm.



    I also tested the tube, it bursted with the pressure more then 60 bar (operating pressure is 3.5 bar). I think it is enough reserve :)
