    I am now looking for expressions of interest here for 100 and 105 Gullwing doors.

    Briefly, if you haven't seen the thread in the 80 section, these are side door panels designed to be as OEM looking as I can which allow access from where the side rearmost windows are located. Fitting is generally straight forward and involves replacing the glass with the aluminium door on the original rubber (this is something I am looking into as to how the windows fit. Cost should be similar to the 80 series ones but will be confirmed later.

    See the 80 threads here
    https://www.landcruiserclub.net/community/threads/80-series-gullwings-rear-windows.142898/

    https://www.landcruiserclub.net/community/threads/80-series-rear-gullwing-doors.143392/

    A Molle panel is soon to be available

    https://www.landcruiserclub.net/community/threads/gullwing-door-molle-panel.146684/

    So, if you are interested, please pop your name down below. No absolute commitment at this stage. I will link to this from the 105 section as I believe the body sections are identical (tell me if I'm wrong here). I need to produce 5 pairs really to make development and costs reasonable.

    1, GeekOKent (105)
    2,
    3,
    4,
    5,

    Last edited: Nov 10, 2016
    Ben Stratford likes this.
  2. SafariTecPeter

    SafariTecPeter Well-Known Member I am in norway

    458
    61
    28
    Map
    I am "inbetween" vehicles right now, but in principal I`d be interested in both J7 and J10

  3. StarCruiser

    StarCruiser Well-Known Member Supporter Guru I am in uk

    9,266
    3,307
    113
    Garage:
    Map
    Ok, thanks Peter. I hadn't thought of doing 70 series but hey, why not? I'll start a thread in the 70 section. I'll pop your name on this list then if that's ok?

  4. StarCruiser

    StarCruiser Well-Known Member Supporter Guru I am in uk

    9,266
    3,307
    113
    Garage:
    Map
    1, GeekOKent (105)
    2, SafariTecPeter
    3,
    4,
    5,

  5. SafariTecPeter

    SafariTecPeter Well-Known Member I am in norway

    458
    61
    28
    Map
    When You consider the J7, please consider if You will do either front or back side window or both.
    Please PM me if details are to be discussed. I have an interesting project going.
    Yes, You may certainly put my name down for the J10. No commitments attached

  6. StarCruiser

    StarCruiser Well-Known Member Supporter Guru I am in uk

    9,266
    3,307
    113
    Garage:
    Map
    Do you have any photos of the 70 series windows you mean Peter? I have very little experience of the 70s.

  7. SafariTecPeter

    SafariTecPeter Well-Known Member I am in norway

    458
    61
    28
    Map
    Hi!

    Yes, certainly.
    I have a empty 78 body here I can measure & with some time allowed I have another one with windows in it, so that we can measure & discuss.
    The forward windows are more square while on the aft window the upright aft pillar leans forward making the top shorter than the bottom. Pics will explain better :)
    The 76 is all different & gullwings for this model is readily available.....
    Do You want me to post pics here or pr PM?

  8. GeekOKent

    GeekOKent Well-Known Member Supporter I am in uk

    1,673
    381
    83
    Map
    2016-11-25 10.19.36.jpg

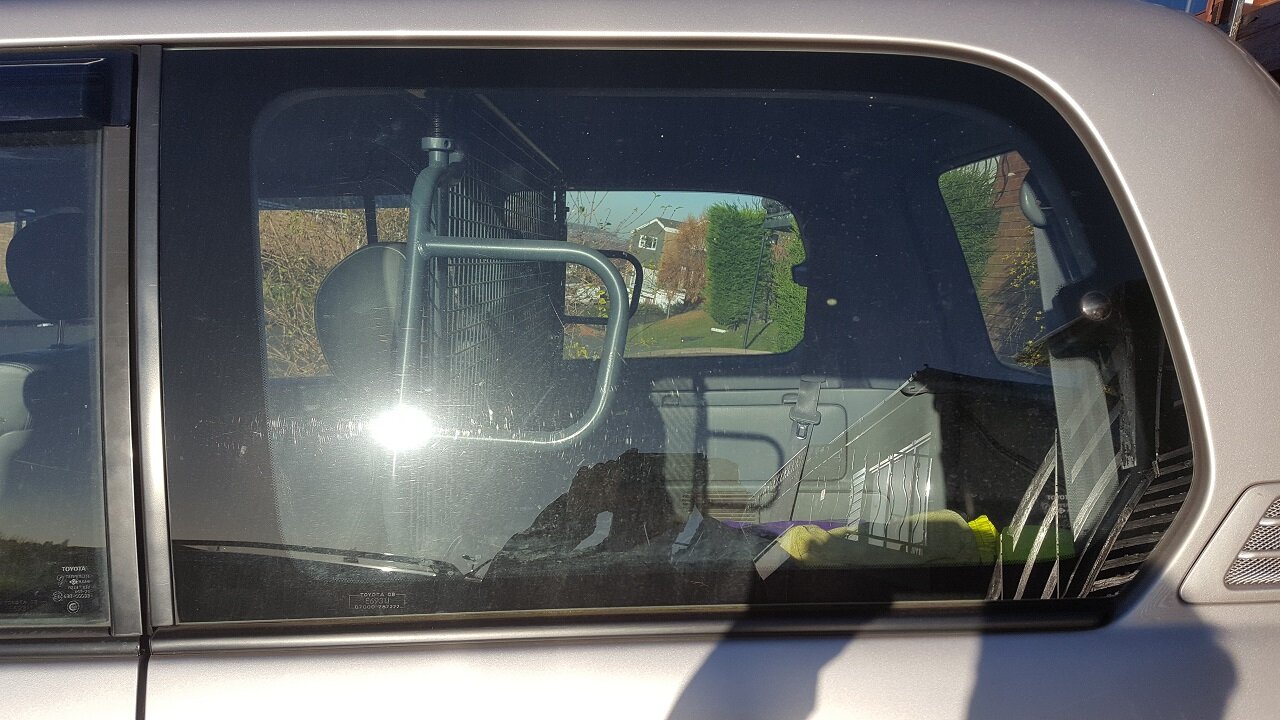

    This is what the window on my 105 looks like. The windows do not open though.

  9. StarCruiser

    StarCruiser Well-Known Member Supporter Guru I am in uk

    9,266
    3,307
    113
    Garage:
    Map
    Hmmm, that looks suspiciously like it may be bonded in there KB. Woukd you mind doing me a pic of the inside where the glass joins the body please?

  10. SafariTecPeter

    SafariTecPeter Well-Known Member I am in norway

    458
    61
    28
    Map
    It is all tucked away under plastic Richard.... & "abit" of a hazzle to pull apart...
    Very much the same on the LC100 at least

  11. StarCruiser

    StarCruiser Well-Known Member Supporter Guru I am in uk

    9,266
    3,307
    113
    Garage:
    Map
    I'm just trying to work out if the windows are bonded in or fitted on rubbers. Looks to me so far that they are bonded in which is a whole different ball game.

    I think TBH I really need to see it 'in the flesh'.

  12. SafariTecPeter

    SafariTecPeter Well-Known Member I am in norway

    458
    61
    28
    Map
    They are bonded on the LC100`s I have been toying with.
    The parts catalouge does not list a seal....
    When looking at the TLC parts catalouge for the J10, there seems to be a pop up type listed,
    The one that hinges in front & latches in the back. If anyone has got that on complete, drop me a line please

  13. StarCruiser

    StarCruiser Well-Known Member Supporter Guru I am in uk

    9,266
    3,307
    113
    Garage:
    Map
    Ahh, now this has got my brain cell leaping into action and it has finally remembered that (I think) @Jon Wildsmith posted somewhere that his were like this. Any chance of some piccies Jon?

  14. GeekOKent

    GeekOKent Well-Known Member Supporter I am in uk

    1,673
    381
    83
    Map
    I *think* all 100's like 120's that have the third row seats have the opening hinged windows.

    Once it stops raining, will go out and get some pics.

  15. Werneroeder

    Werneroeder Member I am in uk

    107
    16
    18
    Map
    On my 2003, they are hinged.

  16. Jon Wildsmith

    Jon Wildsmith Super Moderator Supporter Guru I am in england

    6,639
    87
    48
    Garage:
    Map
    I think that was in the 80 thread. I will take some pictures when daylight comes back.

  17. StarCruiser

    StarCruiser Well-Known Member Supporter Guru I am in uk

    9,266
    3,307
    113
    Garage:
    Map
    Thanks Jon. I couldn't remember where it was.

  18. Jon Wildsmith

    Jon Wildsmith Super Moderator Supporter Guru I am in england

    6,639
    87
    48
    Garage:
    Map
  19. Jon Wildsmith

    Jon Wildsmith Super Moderator Supporter Guru I am in england

    6,639
    87
    48
    Garage:
    Map

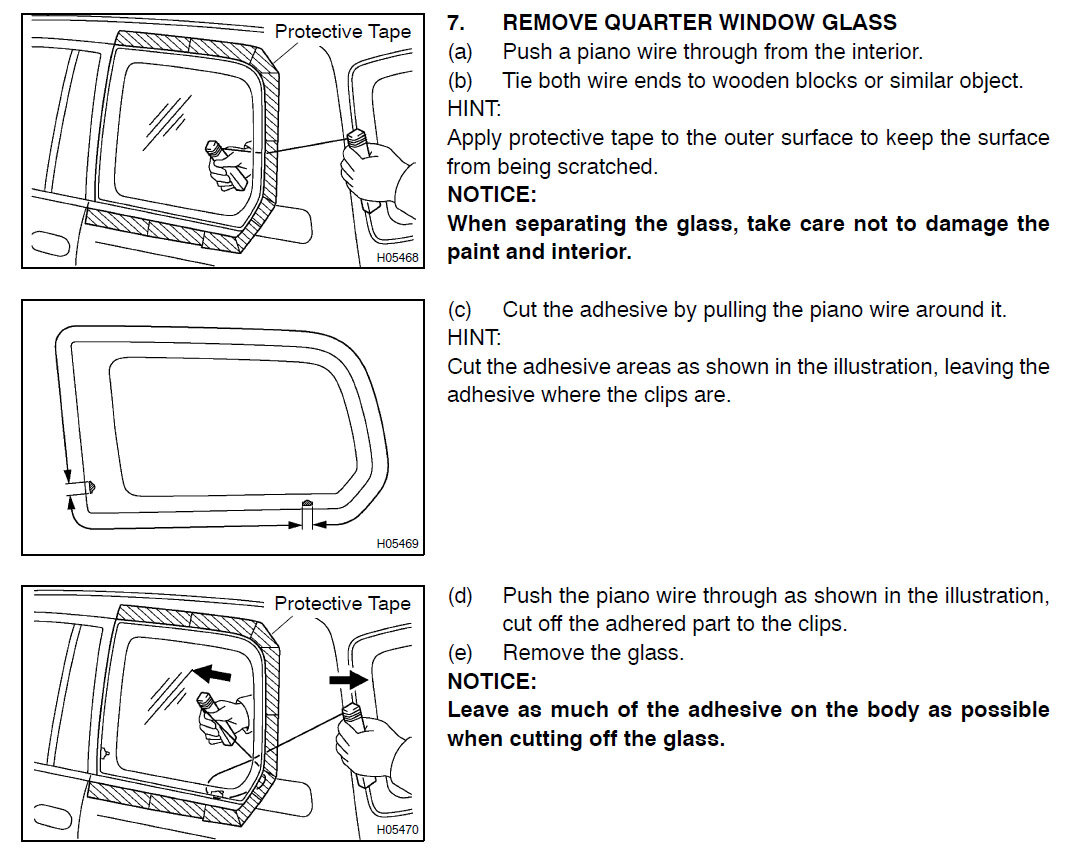

    From the FSM for removing the fixed type windows:

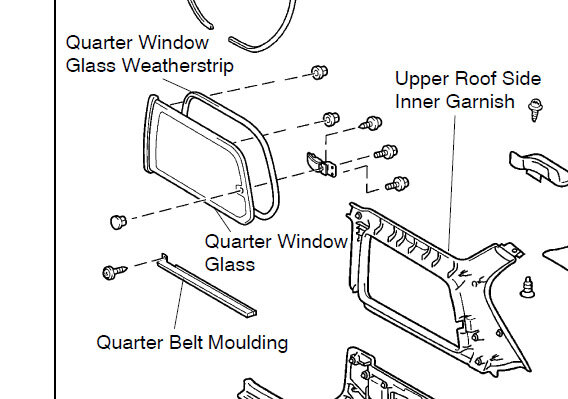

    FSM diagram for the opening windows:

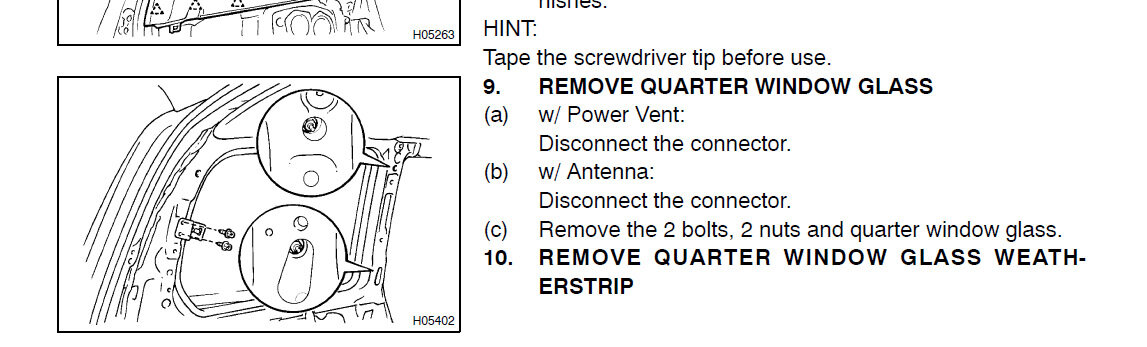

    and opening window removal:


    Last edited: Nov 28, 2016
    StarCruiser and SafariTecPeter like this.
  20. StarCruiser

    StarCruiser Well-Known Member Supporter Guru I am in uk

    9,266
    3,307
    113
    Garage:
    Map
    Thanks for those Jon. We are clearly looking at a totally different animal to the 80 in this area. One thing is clear though, the glass is not structural, otherwise the opener would not be allowable. It's a pity some are bonded and some are not. I may need to bond in the gullwings. Food for thought…
